Thermo actuator VAC

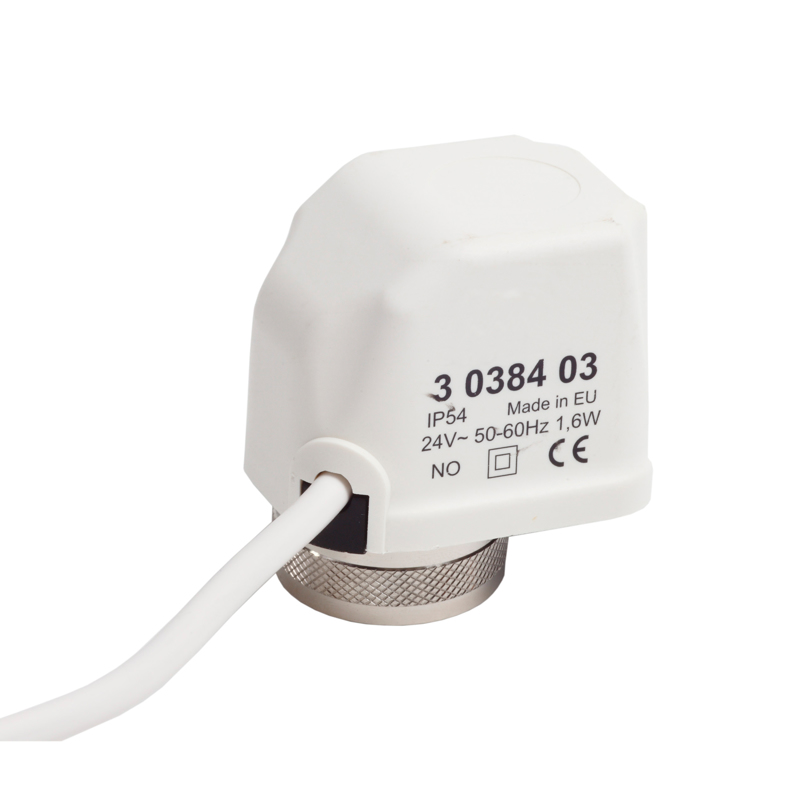

Thermal actuators VAC is used in secondary heating and cooling systems.
The actuator is adapted to MMA's thermostatic valves with thread M28 * 1.5
(ex FVR, Evoflow or Flexkoppel).
VAC is regulated by room control center R41.
VAC is also available with connection M30 * 1.5 for valves of other
make or underfloor heating distributor.
Description
The thermostat actuator's characteristic is "on / off".
In the event of a power failure, the actuator closes NC.
The actuator is provided with operating position indication above the nut.
Red - closed
Black - open
The actuator is connected with the supplied cable attached to the underside of the actuator.
Properties | |
Max operating temperature | 50 |
Material | Plastic |
Document | Category |
---|---|
Datasheet VAC/VAO | Technical data sheet |
