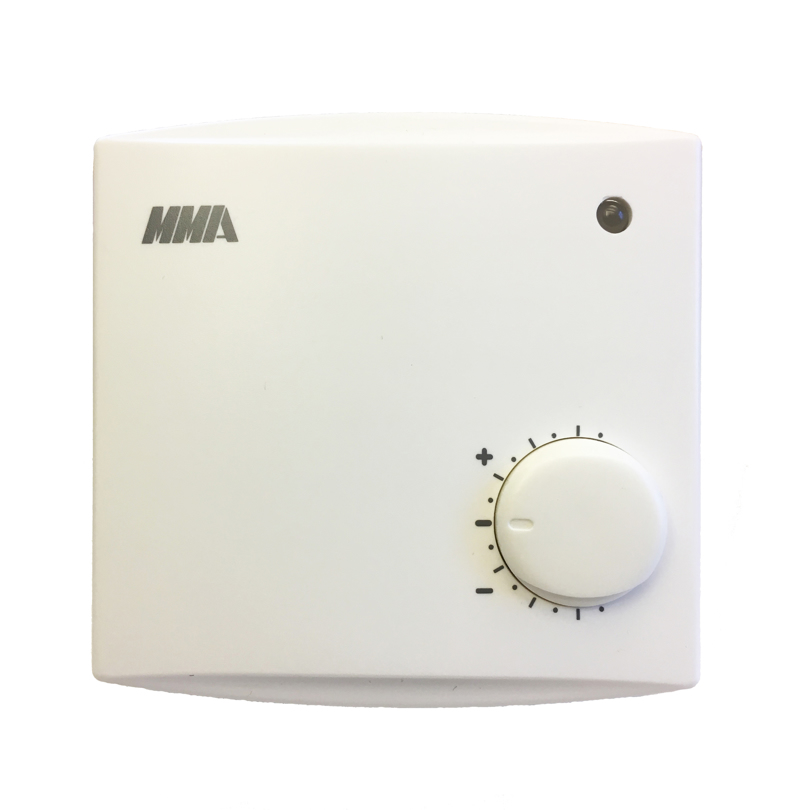

Room thermostat 41
Room thermostat R41 is used to regulate heating and cooling in sequence.
Together with an actuator the R41 can regulate cooling ceilings , fan coils, radiators etc.
The room thermostat is CE-approved.
Description
Room regulator R41 has the following functions:
• On/Off outputs 24V
• Heating- and cooling adapted to actuator VAC (NC)
• Possibility og mechanical limitation of the scale range
• R41 is connected with a plint
• Regulation area 18-24°C
• The actuator performs a complete anti blocking cykle every 24 hours. Can be activated with S1
• The room thermostats Pband can be changed 1-2 degress through S2
Properties | |
Max operating temperature | 50 |
Material | Plastic |
Document | Category |
---|---|
Datasheet R41 | Technical data sheet |
Room thermostat 41 | Product Image |
Installation manual R41 | Installation manual |
