Measuring ring ML

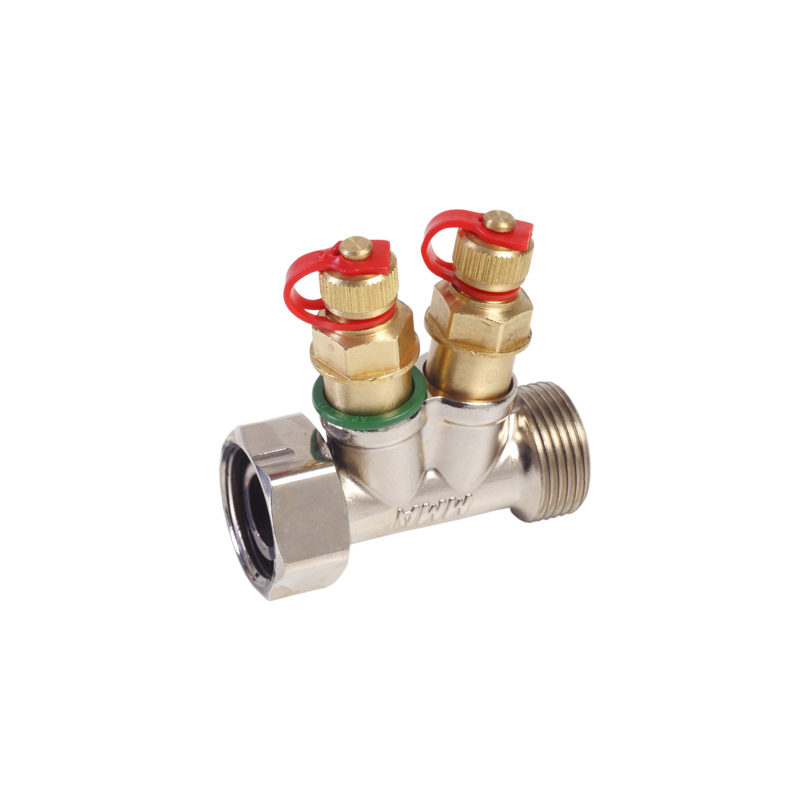

The ML10 metering valve is used as a metering valve on mains for heating or cooling systems.

ML 10 is a metering valve that is available with various kv-values, the valve is equipped with a self-sealing measurement outlet. The valve has external thread M22x1.5 and a coupling nut M22x1.5. ML10 is marked with a coloured washer for each Kvs value. Gauge block is available as an accessory

Max operating temperature 120
Connection dimension M22x1,5
Pressure rating PN10
Material Brass
