Refurbishment inserts AHA /HRE/TRV
Refurbishment inserts AHA /HRE/TRV

Refurbishment inserts AHA /HRE/TRV

The replacement inserts replace the insert in valves of AGA type TRV and HRV valves. The replacement insert is controlled with a thermostat, thermostat or handwheel.

Description

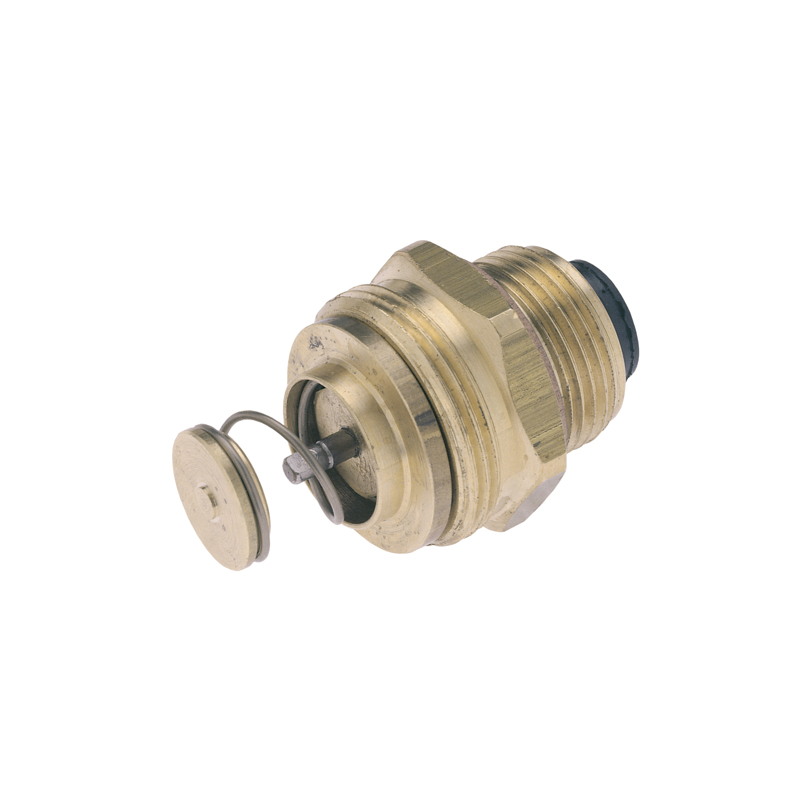

The valve design with thermostat according to picture. NOTE must not be confused with AGA Thermopanel radiator manifold. The thread of the insert is M22x1.5.

NOTE! For proper operation, existing valve housings are required to be in undamaged condition and the accompanying instructions are followed. The function cannot be guaranteed in the case of deviating valve designs, incorrect installation, insufficient heat capacity or other conditions we cannot control.

Properties
Max operating temperature 100
Connection dimension M28x1,5
Pressure rating PN10
Material Brass
