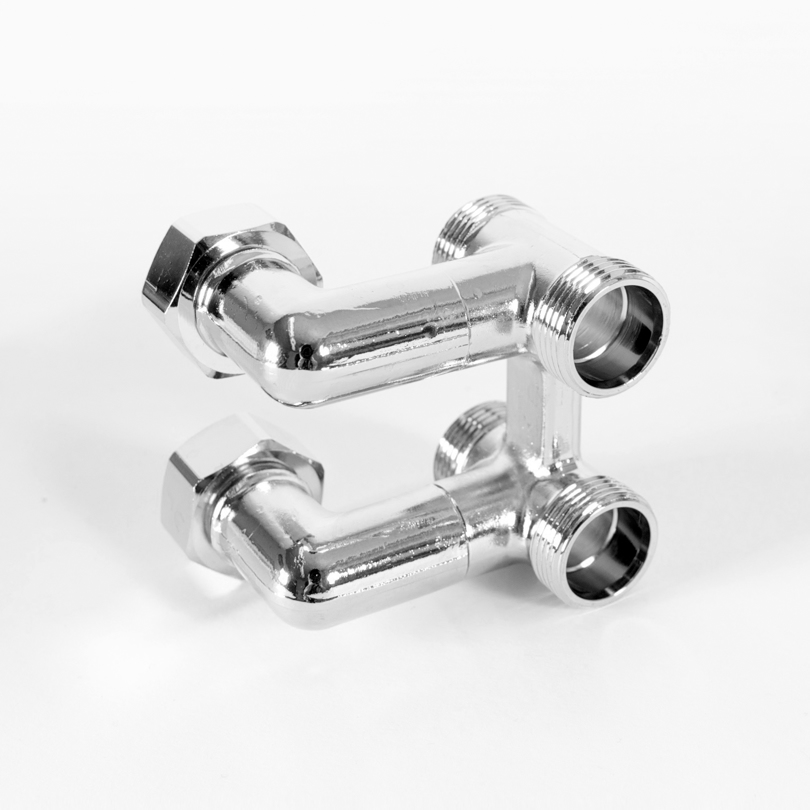

Thermopanel Rak 4 is a separate
connector to achieve piping behind the radiator.
The connector has a swiveling nut for connection to valve arrangement
and external M22 x 1.5 thread for connection to heating system.
Pipes with dimensions up to 18 mm can be used and
the distance c / c pipe to the wall is 20 mm. Note! When mounting
Straight 4 and 18 mm pipes require 6 mm spacer blocks.

At the construction site, the piping to straight pipes is simplified between
the radiators, which provides a quick and easy installation.
Radiator connection and piping are located above
the lower edge of the radiator for optimal space saving in height.
DIMENSIONING AND INSTALLATION
Heat dissipation according to Thermopanel standard. Normal
thermal expansion of piping systems shall be taken into account.
CONNECTIONS
Thermopanel's range of standard couplings can
be used.
NOTE! Free dimension between pipe and radiator does not allow space for joint of pipes or place for press sleeve. Radiators
standard console must be used, extra distances are not needed.

Properties
Connection dimension M22x1,5
Material Brass
