Ulow E2
Ulow E2
Fan radiators

Ulow E2

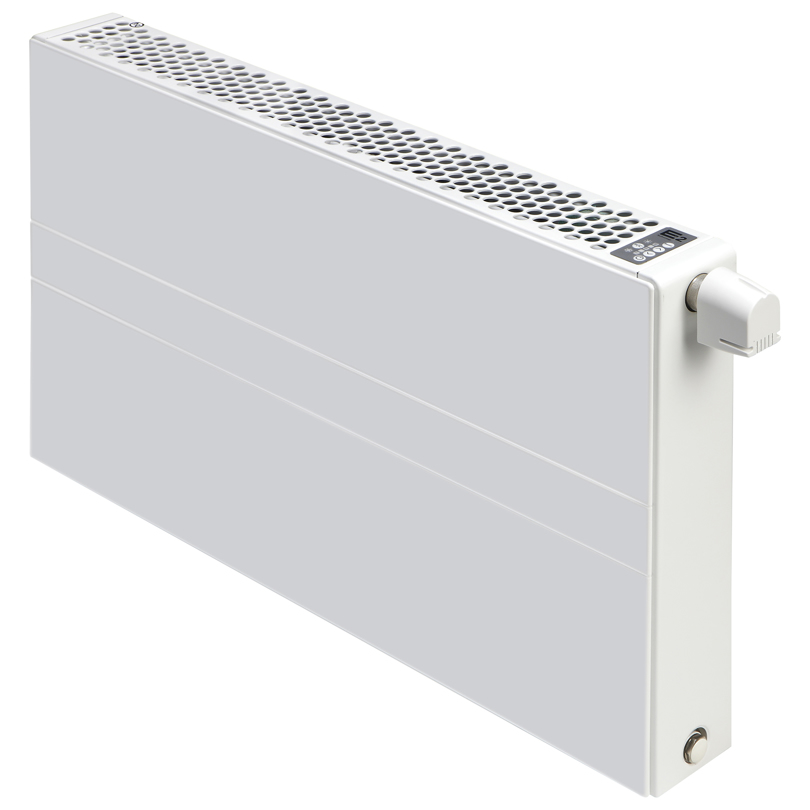

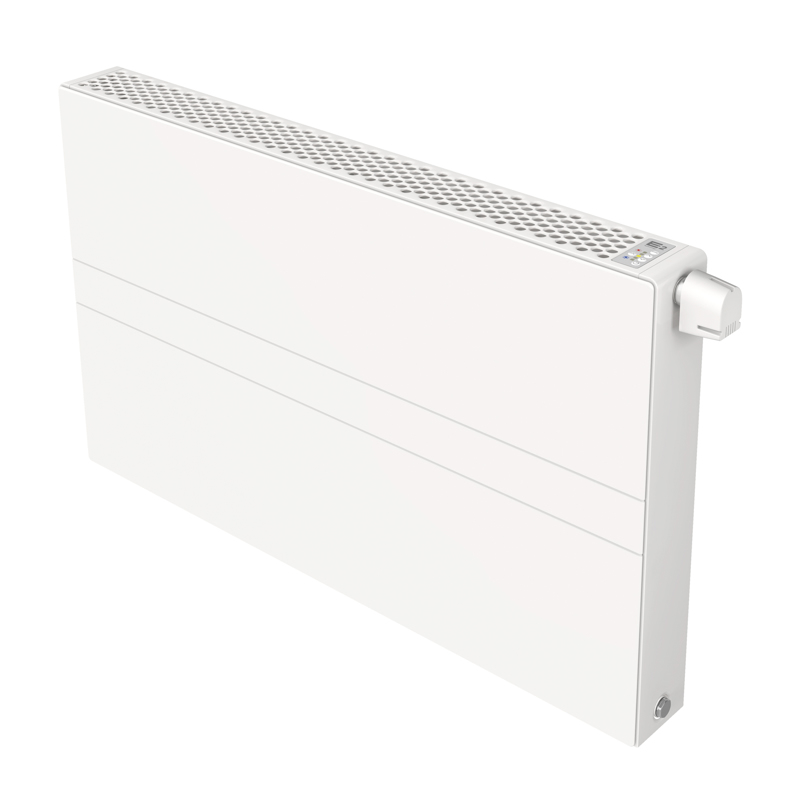

Ulow E2 is an efficient low-temperature radiator, powered by E2 technology. It is well-suited for houses and flats when you want more output from a radiator in low-temperature systems.

Ulow E2 has a simple white design that is suitable for all types of interior, from traditional to modern. Ulow E2 is a combination of radiation heat and effective convection. With the integrated fans, the convection heat is distributed better throughout the entire room, and the temperature setting can be lower as a result.

With innovative E2 technology, the controller switches automatically between static and dynamic operation as needed. Static function means that the Ulow E2 fan radiator functions like a traditional radiator while dynamic operation means that the integrated fans are activated, which improves the heat distribution drastically. Simply put, it is an intelligent turbo function. The integrated fans operate silently and increase the performance of the radiators by up to 80% with increased convection. Ulow E2 is a perfect solution for houses and new homes, as well as those in need of renovation.

Ulow E2 has a 3/4 inch male threaded connection. For steel and copper pipes with a diameter of 12, 15 and 16, fittings must be ordered separately. Floor heating fittings can be used for pex pipe.

Properties
Max operating temperature 60
Standard EN442; EN10130
Connection dimension 2 x G 3/4 + 4 x G 1/2; 230V
Pressure rating PN10
Material Cold rolled steel
Standard colour White RAL 9016
Ulow E2
Fan radiators

Ulow E2

Ulow E2 is an efficient low-temperature radiator, powered by E2 technology. It is well-suited for houses and flats when you want more output from a radiator in low-temperature systems.

Ulow E2 has a simple white design that is suitable for all types of interior, from traditional to modern. Ulow E2 is a combination of radiation heat and effective convection. With the integrated fans, the convection heat is distributed better throughout the entire room, and the temperature setting can be lower as a result.

With innovative E2 technology, the controller switches automatically between static and dynamic operation as needed. Static function means that the Ulow E2 fan radiator functions like a traditional radiator while dynamic operation means that the integrated fans are activated, which improves the heat distribution drastically. Simply put, it is an intelligent turbo function. The integrated fans operate silently and increase the performance of the radiators by up to 80% with increased convection. Ulow E2 is a perfect solution for houses and new homes, as well as those in need of renovation.

Ulow E2 has a 3/4 inch male threaded connection. For steel and copper pipes with a diameter of 12, 15 and 16, fittings must be ordered separately. Floor heating fittings can be used for pex pipe.

Properties
Max operating temperature 60
Standard EN442; EN10130
Connection dimension 2 x G 3/4 + 4 x G 1/2; 230V
Pressure rating PN10
Material Cold rolled steel
Standard colour White RAL 9016

Connection drawing

ETIM OM Horizontal connection

Connection drawing

ETIM MO Horizontal connection

Monclac brackets and pre-assembled valve insert, thermostat, bleed valve and dummy plug. Completely pre-installed fan group with microprocessor and temperature-controlled control unit, integrated low-voltage transformer with ready-to-connect network cable and manoeuvrable panel recessed in the top grate.

Purmo radiators are warranted for a period of 10 years* from date of purchase against all manufacturing defects when they are used in normal conditions and for a heating system with hot water. The warranty does not apply to defects caused by installation or handling errors, misuse or factors external to the radiators, such as water quality or oxygen-permeable pipes.
Underfloor heating products and piping systems elemnts are warranted for a period of 10 years**.
* 6 years for galvanized radiators and 2 years for all electronic and electric components and spare parts sold separately (side covers, top grilles, plastic clips, plugs, air vents, fixing parts)
** 30 years for PexPenta pipes

10 year warranty icon

CE certificate

CE-mark
Files
DocumentCategory
Ulow E2 - Heat outputs.pdf Heat Output
Purmo product catalog SE Catalog
Installation
Drawing Ulow E2 H TV

Ulow E2 H, top view

Drawing Ulow E2 H FV

Ulow E2 H, front view

Drawing Ulow E2 H SV

Ulow E2 H, side view
