Plint R

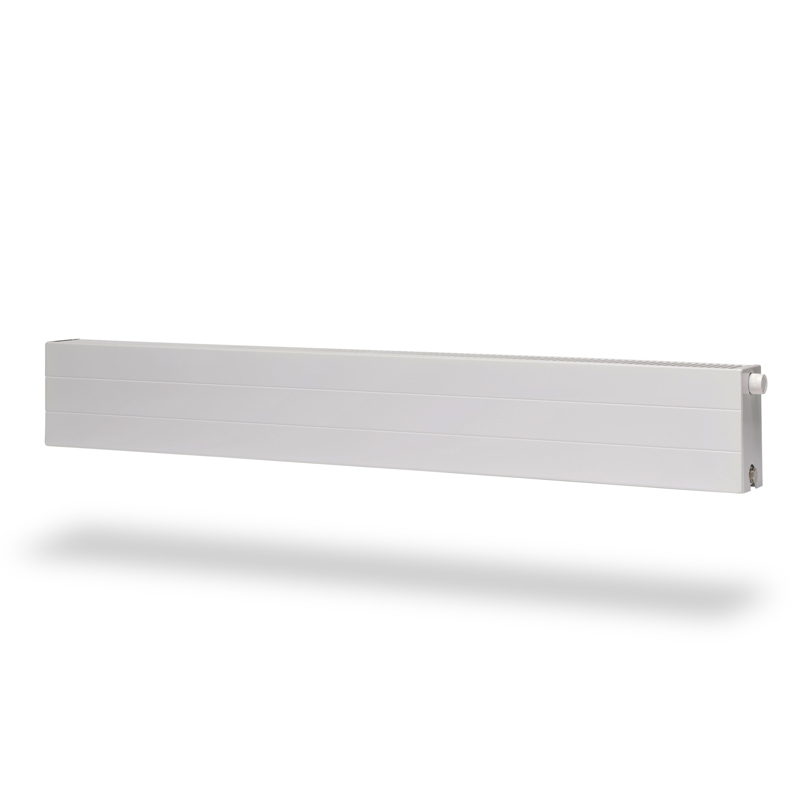

Plint R is a traditional panel radiator with flat, profiled front for hydronic heating systems. With a space-saving height of 200 mm, Plint R is perfect for installation under large windows in modern environments. Its integrated valve fitting enables attractive and easy installation. White RAL 9016 finish.
| Properties | |
| Max operating temperature | 110 |
| Standard | EN442; EN10130 |
| Connection dimension | 2 x G 1/2 |
| Pressure rating | PN10 |
| Material | Cold rolled steel |
| Standard colour | White RAL 9016 |
| Connections (ETIM) | 11,32,37,62,67,88 |
Plint R
Plint R is a traditional panel radiator with flat, profiled front for closed hydronic heating systems. With a space-saving height of 200 mm, Plint R is perfect for installation under large windows in modern environments. Plint R is a high-quality radiator with a very refined finish. The radiator is delivered with pre-assembled side panels and top grate and has a profiled front for optimal heating effect. Its integrated valve fitting enables attractive and easy installation.
| Properties | |
| Max operating temperature | 110 |
| Standard | EN442; EN10130 |
| Connection dimension | 2 x G 1/2 |
| Pressure rating | PN10 |
| Material | Cold rolled steel |
| Standard colour | White RAL 9016 |
| Connections (ETIM) | 11,32,37,62,67,88 |
Side connection ETIM 32. Side connection requires the use of an external radiator valve. In the case of side connection, the bottom connections are plugged.
Side connection ETIM 67. Side connection requires the use of an external radiator coupling or valve. In the case of side connection, the bottom connections are plugged.
Diagonal connection ETIM 37. Diagonal connection requires the use of an external valve. In the case of a diagonal connection, the bottom connections are plugged.
Diagonal connection ETIM 62. Diagonal connection requires the use of an external valve. In the case of a diagonal connection, the bottom connections are plugged.
ETIM 88 LR Bottom connection. Bottom connection via integrated valve requires the use of a valve insert. Unused connections are plugged.
ETIM 11 Bottom connection, in-left-out-right.
ETIM 37 Serial Horizontal connection
ETIM 62 Serial Horizontal connection
Integrate coupler, M30 valve insert, mounted side panels and top grate, bleed screw and plugs. Note! Brackets are not included in the price.
Purmo radiators are warranted for a period of 10 years* from date of purchase against all manufacturing defects when they are used in normal conditions and for a heating system with hot water. The warranty does not apply to defects caused by installation or handling errors, misuse or factors external to the radiators, such as water quality or oxygen-permeable pipes.
Underfloor heating products and piping systems elemnts are warranted for a period of 10 years**.
* 6 years for galvanized radiators and 2 years for all electronic and electric components and spare parts sold separately (side covers, top grilles, plastic clips, plugs, air vents, fixing parts)
** 30 years for PexPenta pipes
CE certificate
| Document | Category |
|---|---|
| Heat output xls-file for Plint models | Heat Output |
| Fitting instructions wall brackets and floor brackets for Plint radiators | Installation manual |
Plint R and Plint RD, front view
Plint, Plint P and Plint R, back view
Plint P and Plint R, type 21s with floor brackets, side view
Plint P and Plint R, type 21s with Monclac wall brackets, side view
Plint P and Plint R, type 22 with floor brackets, side view
Plint P and Plint R, type 22 with Monclac wall brackets, side view
Plint P and Plint R, type 44 with floor brackets, side view
Plint P and Plint R, type 33 with Monclac wall brackets, side view
Plint P and Plint R, type 44 with Monclac wall brackets, side view
Plint P and Plint R, type 21s, top view
Plint P and Plint R, type 22, top view
Plint P and Plint R, type 33 with floor brackets, side view
Plint P and Plint R, type 33, top view
Plint P and Plint R, type 44, top view
