Plint PD
Plint P
Horizontal Panel Radiators

Plint PD

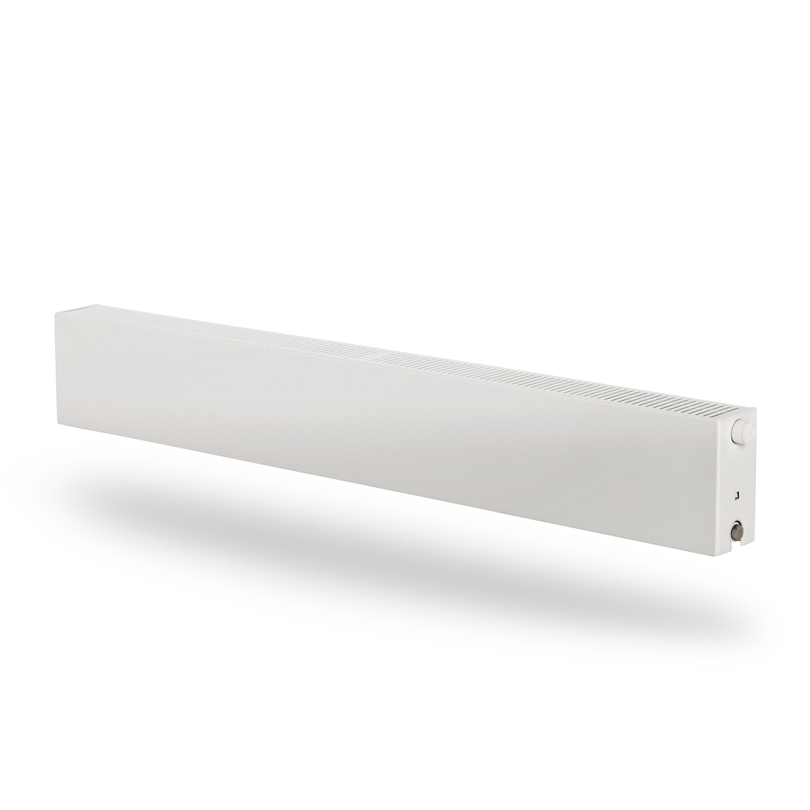

Plint PD is a traditional panel radiator with flat front and rear panel for closed hydronic heating systems. With a space-saving height of 200 mm, Plint PD is perfect for installation under large windows in modern environments. Its integrated valve fitting enables attractive and easy installation. White RAL 9016 finish.

Properties
Max operating temperature 110
Standard EN442; EN10130
Connection dimension 2 x G 1/2
Pressure rating PN10
Material Cold rolled steel
Standard colour White RAL 9016
Connections (ETIM) 32,37,62,67,88,11
Plint P
Horizontal Panel Radiators

Plint PD

Plint PD is a traditional panel radiator with flat front and rear panel for closed hydronic heating systems. With a space-saving height of 200 mm, Plan Ventil Compact Double is perfect for installation under large windows in modern environments. Plint PD is a high-quality radiator with a very refined finish. The radiator is delivered with pre-assembled side panels and top grate and has a profiled front for optimal heating effect. Its integrated valve fitting enables attractive and easy installation. White RAL 9016 finish. Type 21, 22 and 44 are reversible. Type 33 is specified as right-hand or left-hand version when ordering.

Properties
Max operating temperature 110
Standard EN442; EN10130
Connection dimension 2 x G 1/2
Pressure rating PN10
Material Cold rolled steel
Standard colour White RAL 9016
Connections (ETIM) 32,37,62,67,88,11

Connection drawing

ETIM 32 Horizontal connection

Connection drawing

ETIM 67 Horizontal connection

ETIM 37 Horizontal connection

ETIM 37 Horizontal connection

Hor-connection-ETIM-62-1219.svg

Hor-connection-ETIM-62-1219.svg

Connection drawing - LR horizontal connection

ETIM 88 LR Horizontal connection

Connection drawing - LR horizontal connection

ETIM 11 LR Horizontal connection

ETIM 37 Serial Horizontal connection

ETIM 37 Serial Horizontal connection

ETIM 62 Serial Horizontal connection

ETIM 62 Serial Horizontal connection

Integrate coupler, M30 valve insert, mounted side panels and top grate, bleed screw and plugs. Note! Brackets are not included in the price.

Purmo radiators are warranted for a period of 10 years* from date of purchase against all manufacturing defects when they are used in normal conditions and for a heating system with hot water. The warranty does not apply to defects caused by installation or handling errors, misuse or factors external to the radiators, such as water quality or oxygen-permeable pipes.
Underfloor heating products and piping systems elemnts are warranted for a period of 10 years**.
* 6 years for galvanized radiators and 2 years for all electronic and electric components and spare parts sold separately (side covers, top grilles, plastic clips, plugs, air vents, fixing parts)
** 30 years for PexPenta pipes

10 year warranty icon

CE certificate

CE-mark
Installation
Drawing Plint PD, RD T44 TV

Plint PD and Plint RD, type 44, top view

Drawing Plint PD BV

Plint PD, back view

Drawing Plint PD, RD T21s SV Floor

Plint PD and Plint RD, type 21s with floor brackets, side view

Drawing Plint PD, RD T22 SV Floor

Plint PD and Plint RD, type 22 with floor brackets, side view

Drawing Plint PD, RD T33 SV Floor

Plint PD and Plint RD, type 33 with floor brackets, side view

Drawing Plint PD, RD T44 SV Floor

Plint PD and Plint RD, type 44 with floor brackets, side view

Drawing Plint PD, RD T21s TV

Plint PD and Plint RD, type 21s, top view

Drawing Plint PD, RD T22 TV

Plint PD and Plint RD, type 22, top view

Drawing Plint PD, RD T33 TV

Plint PD and Plint RD, type 33, top view
