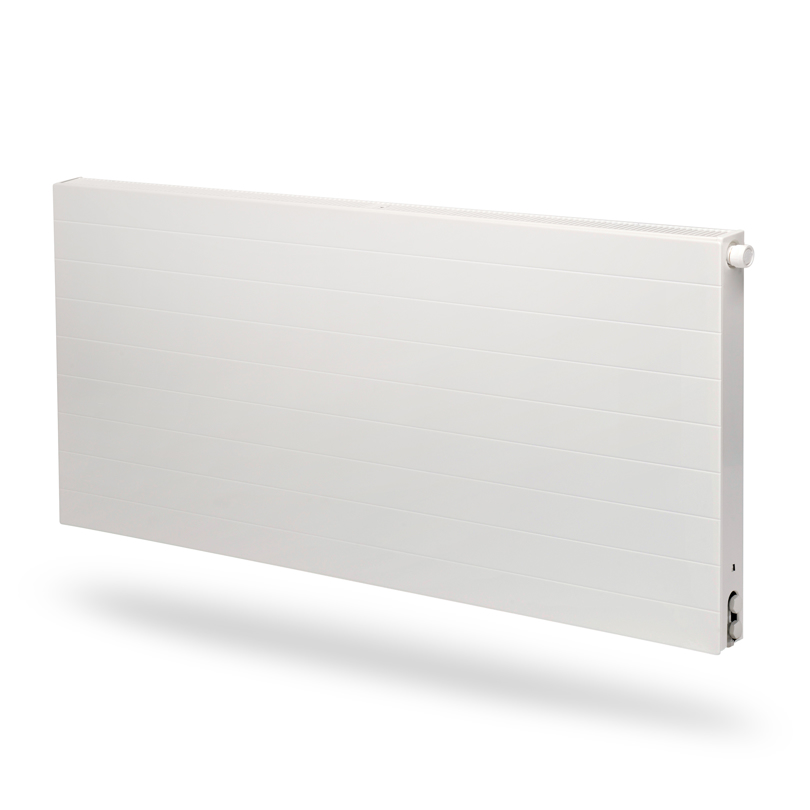

Thermopanel V4 Ramo is a water borne element with integrated valve coupler and a flat front panel with distinct, horizontal lines. Thanks to the concealed V4 coupler, you can connect the radiator from the side and from below. Thermopanel V4 is delivered with grate, side panels, wall brackets and pre-assembled valve insert. Thermopanel has unique and appreciated features. The patented V4 coupler is welded in a concealed position behind the radiator body with an entirely unique method for the sector. No visible pipes and full freedom to install the radiator with concealed connection. The pre-installable valve insert is seated in the location and your installer chooses the thermostat for you according to your needs.

Properties
Max operating temperature 110
Standard EN442; EN10130
Connection dimension M22x1,5 c/c 40mm
Pressure rating PN10
Material Cold rolled steel
Standard colour White RAL 9016
Connections (ETIM) 88,11
Thermopanel V4 Ramo

Thermopanel V4 Ramo

Thermopanel V4 Ramo is a panel radiator with integrated, concealed V4 coupler and a flat front panel with stylish, distinctive horizontal lines. The patented V4 coupler has a design according to Swedish standard for either bottom or side connection, c/c 40 mm. Thermopanel V4 is always delivered with pre-adjusted and pre-assembled valve insert and pre-assembled side panels and top grate. Thermopanel Ramo is designed for optimal heat emittance according to the standard EN442-1 and all models are CE-marked. Standard white RAL 9016 finish (other colours are available on request for an additional charge). The warranty period is 10 years.

Properties
Max operating temperature 110
Standard EN442; EN10130
Connection dimension M22x1,5 c/c 40mm
Pressure rating PN10
Material Cold rolled steel
Standard colour White RAL 9016
Connections (ETIM) 88,11

ETIM TP 2-11 Horizontal connection

ETIM TP 2-11 Horizontal connection

ETIM TP-7-88 Horizontal connection

ETIM TP-7-88 Horizontal connection

Thermopanel V4 Ramo panel radiator with integrated valve arrangement, type V4, provided with side panels and top grate. The radiator is delivered complete with brackets, bleed screw, 1/2" plug and insert MMA TIF for thermostat valve.

PTB.1 radiators PTB.11 panel radiators Thermopanel type TP Ramo Fabrikat Thermopanel type TP V4 provided with concealed integrated coupler with connection on the side and bottom, M22 connection C/C 40 mm (Swedish standard). The radiator is provided with designed Ramo front and factory installed TP TIF tamper-proof valve set. White RAL 9016 finish. Delivered with bleed valve, bottom plug, side panels and top grate, as well as the necessary wall brackets of the type Monclac. Supplied in protective packaging with front protection that is removed at the time of the final cleaning. TPR XX-HLL Output group height, length (dm) Complementary text • Provided with TP Rak 4 • Provided with TP-Flex coupler • Provided with Quattro 2-pipe distributor • Provided with M30 design thermostat Panel radiator accessories • Floor stands • Lock bows for public buildings • ThermoAir supply air intake • Towel bar

Purmo radiators are warranted for a period of 10 years* from date of purchase against all manufacturing defects when they are used in normal conditions and for a heating system with hot water. The warranty does not apply to defects caused by installation or handling errors, misuse or factors external to the radiators, such as water quality or oxygen-permeable pipes.
Underfloor heating products and piping systems elemnts are warranted for a period of 10 years**.
* 6 years for galvanized radiators and 2 years for all electronic and electric components and spare parts sold separately (side covers, top grilles, plastic clips, plugs, air vents, fixing parts)
** 30 years for PexPenta pipes

10 year warranty icon
Installation
Drawing Thermopanel Ramo left FV

Thermopanel Ramo, front view left

Drawing Thermopanel TP Ramo right FV

Thermopanel Ramo, front view right

Drawing Thermopanel Plan Ramo T10 SV Monclac 66

Thermopanel Plan and Ramo, type 10, side view with Monclac wall brackets, ETIM 66

Drawing Thermopanel Plan Ramo T11 SV Monclac 42

Thermopanel Plan and Ramo, type 11, side view with Monclac wall brackets, ETIM 42

Drawing Thermopanel Plan Ramo T21 SV Monclac

Thermopanel Plan and Ramo, type 21, side view with Monclac wall brackets

Drawing Thermopanel Plan Ramo T22 SV Monclac

Thermopanel Plan and Ramo, type 22, side view with Monclac wall brackets

Drawing Thermopanel Plan Ramo T33 SV Monclac

Thermopanel Plan and Ramo, type 33, side view with Monclac wall brackets

Drawing Thermopanel Plan Ramo T10 right TV

Thermopanel Plan and Ramo, type 10 right, top view

Drawing Thermopanel Plan Ramo T10 left TV

Thermopanel Plan and Ramo, type 10 left, top view

Drawing Thermopanel Plan Ramo T11 left TV

Thermopanel Plan and Ramo, type 11 left, top view

Drawing Thermopanel Plan Ramo T11 right TV

Thermopanel Plan and Ramo, type 11 right, top view

Drawing Thermopanel Plan Ramo T21 TV

Thermopanel Plan and Ramo, type 21, top view

Drawing Thermopanel Plan Ramo T22 TV

Thermopanel Plan and Ramo, type 22, top view

Drawing Thermopanel Plan Ramo T33 left TV

Thermopanel Plan and Ramo, type 33 left, top view

Drawing Thermopanel Plan Ramo T33 right TV

Thermopanel Plan and Ramo, type 33 right, top view
