Ventil Compact M

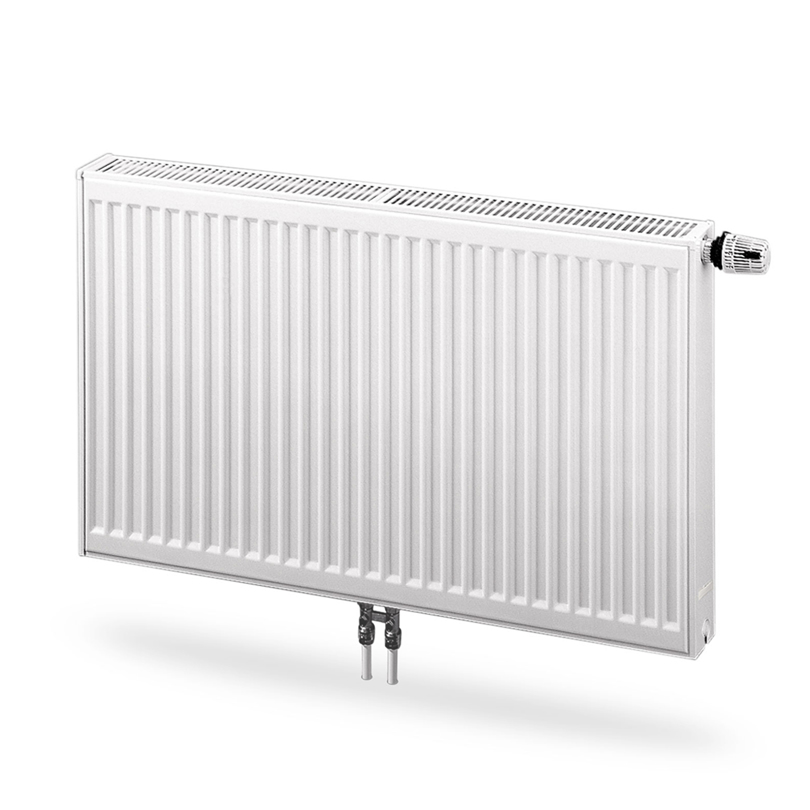

Ventil Compact M is a traditional panel radiator with middle connection. Its integrated valve fitting enables attractive and easy installation. White RAL 9016 finish.

Properties
Max operating temperature 110
Standard EN442; EN10130
Connection dimension 2 x G 1/2
Pressure rating PN10
Material Cold rolled steel
Standard colour White RAL 9016
Connections (ETIM) 32,37,62,67,MO
Ventil Compact M
Horizontal Panel Radiators

Ventil Compact M

Ventil Compact M is a traditional panel radiator with middle fitting and integrated valve arrangement. Ventil Compact is a high-quality radiator with a very refined finish. Ventil Compact M is designed for optimal heat emittance according to the standard EN442-1 and all models are CE-marked. The radiator is delivered with pre-assembled side panels and top grate and has a profiled front for optimal heating effect. Its integrated valve fitting enables attractive and easy installation. Standard white RAL 9016 finish.

Properties
Max operating temperature 110
Standard EN442; EN10130
Connection dimension 2 x G 1/2
Pressure rating PN10
Material Cold rolled steel
Standard colour White RAL 9016
Connections (ETIM) 32,37,62,67,MO

Connection drawing

ETIM MO Horizontal connection

Connection drawing

ETIM OM Horizontal connection

Purmo radiators are warranted for a period of 10 years* from date of purchase against all manufacturing defects when they are used in normal conditions and for a heating system with hot water. The warranty does not apply to defects caused by installation or handling errors, misuse or factors external to the radiators, such as water quality or oxygen-permeable pipes.
Underfloor heating products and piping systems elemnts are warranted for a period of 10 years**.
* 6 years for galvanized radiators and 2 years for all electronic and electric components and spare parts sold separately (side covers, top grilles, plastic clips, plugs, air vents, fixing parts)
** 30 years for PexPenta pipes

10 year warranty icon
Files
DocumentCategory
Purmo product catalog SE Catalog
Installation
Drawing Ventil Compact M T11 BV

Ventil Compact M type 11, back view

Drawing Ventil Compact M FV

Ventil Compact M, front view

Drawing Ventil Compact M T21-22-33 BV

Ventil Compact M types 21-22-33, back view

Drawing Ventil Compact M T11 SV

Ventil Compact M type 11, side view

Drawing Ventil Compact M T21 SV

Ventil Compact M type 21, side view

Drawing Ventil Compact M T22 BV

Ventil Compact M type 22, side view

Drawing Ventil Compact M T22 rotated SV

Ventil Compact M type 22, rotated side view

Drawing Ventil Compact M T33 SV

Ventil Compact M type 33, side view

Drawing Ventil Compact M T33 rotated SV

Drawing Ventil Compact M type 33 rotated side view

Drawing Ventil Compact M T11 TV

Ventil Compact M type 11, top view

Drawing Ventil Compact M T21 TV

Ventil Compact M type 21, top view

Drawing Ventil Compact M T22 TV

Ventil Compact M type 22, top view

Drawing Ventil Compact M T22 rotated TV

Ventil Compact M type 22, rotated top view

Drawing Ventil Compact M T33 TV

Ventil Compact M type 33, top view

Drawing Ventil Compact M T33 rotated TV

Ventil Compact M type 33, rotated top view
