Minorca
Minorca
Towel Warmers Steel

Minorca

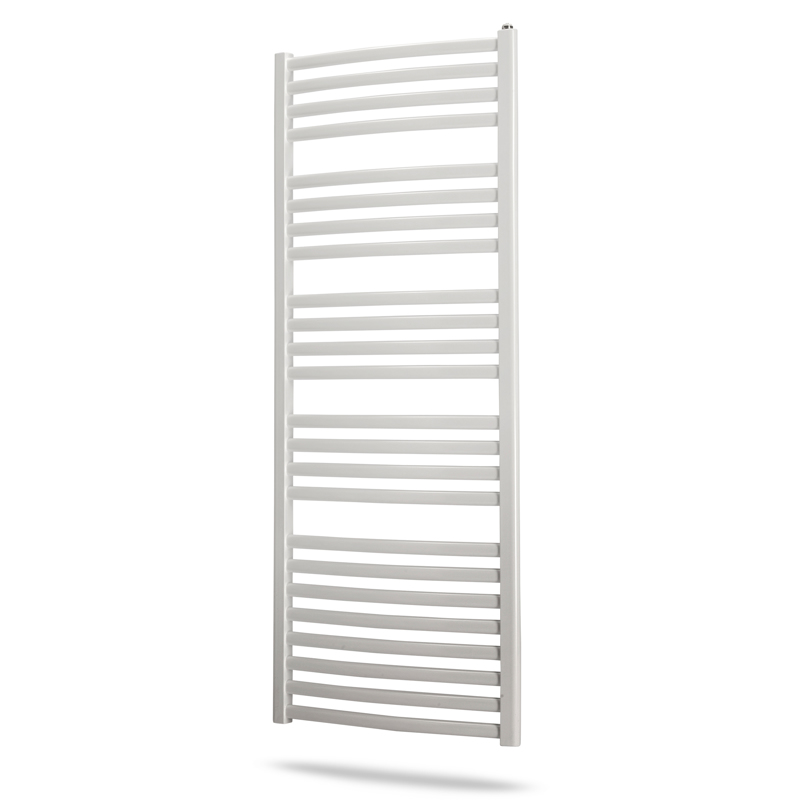

Minorca is the perfect towel warmer for those who want neither hard edges nor something that is completely round. It combines both shapes, which provides an outstanding effect. The flattened oval pipe forms a gentle bend, which joins a straight line on both sides. Minorca lends the bathroom a sense of class.

The standard finish is RAL 9016, but other RAL colours are available.

Properties
Connection dimension 2 x G 3/4 + 4 x G 1/2; 230V
Pressure rating PN8
Material Steel profile
Standard colour White RAL 9016
Minorca
Towel Warmers Steel

Minorca

The Minorca towel warmer's flattened oval pipe forms a gentle bend, which joins a straight line on both sides. Minorca lends the bathroom a sense of class.

The standard finish is RAL 9016, but other RAL colours are available. Operating pressure 8 bar. Not for hot water circulation.

Properties
Connection dimension 2 x G 3/4 + 4 x G 1/2; 230V
Pressure rating PN8
Material Steel profile
Standard colour White RAL 9016

Connection drawing

ETIM 18 Vertical connection

Connection drawing

ETIM 81 Vertical connection

Connection Drawing

ETIM 51 Vertical connection

ETIM 48 Vertical connection

ETIM 48 Vertical connection

ETIM 11 LR Vertical connection

ETIM 11 LR Vertical connection

ETIM 88 RL Vertical connection

ETIM 88 RL Vertical connection

Purmo radiators are warranted for a period of 10 years* from date of purchase against all manufacturing defects when they are used in normal conditions and for a heating system with hot water. The warranty does not apply to defects caused by installation or handling errors, misuse or factors external to the radiators, such as water quality or oxygen-permeable pipes.
Underfloor heating products and piping systems elemnts are warranted for a period of 10 years**.
* 6 years for galvanized radiators and 2 years for all electronic and electric components and spare parts sold separately (side covers, top grilles, plastic clips, plugs, air vents, fixing parts)
** 30 years for PexPenta pipes

10 year warranty icon

CE certificate

CE-mark
Files
DocumentCategory
ENG_TW_HEATOUTPUTS_2012_SE.xlsx Heat Output
Purmo product catalog SE Catalog
Installation
Drawing Minorca FV

Minorca, front view

Drawing Minorca SV

Minorca, side view

Drawing Minorca TV

Minorca, top view
