Thermo actuator WMWC
Actuators

Thermo actuator WMWC

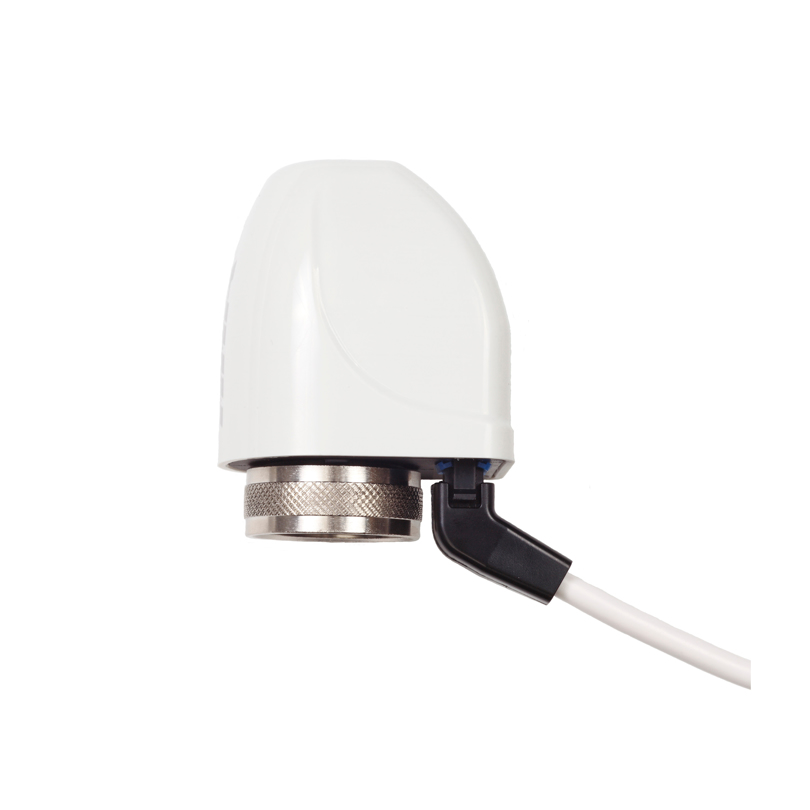

Thermo actuator VMWC is an on / off normally closed actuator. The actuator is used for MMA's thermostatic valves and underfloor heating distributor and is regulated with room control center R41. The thermostat actuator's characteristic is "on / off". In the event of a power failure, the actuator closes. The actuator is equipped with LED operating mode indication. Green LED voltage is on. Blue LED valve is open. LED is hidden under the enclosure. The actuator is connected with the supplied modular cable
which is attached to the underside of the actuator.

Properties
Max operating temperature 50
Connection dimension M28x1,5
Material Plastic
DocumentCategory
Datasheet VMWC Technical data sheet
