Actuators

TempCo actuator for Purmo underfloor heating with single-zone receiver.

Thermal actuator VAF is used for control valve TOV in heating and cooling systems.
The actuator has M30x1.5 thread,
The actuator can be mounted without tools.
Suitable for places where there are cramped spaces.
Description:
The actuators have an on / off function.
The actuators can be used with PWM control as well.
The actuators are intended for TOV valves with M30 connection and stroke of 2.5 or 5.5 mm.

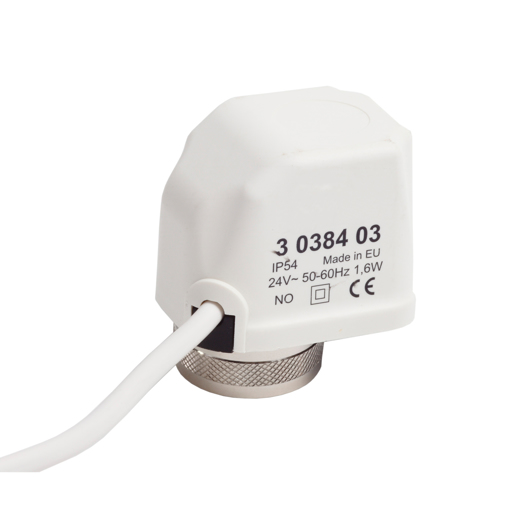

Thermal actuators VAC is used in secondary heating and cooling systems.
The actuator is adapted to MMA's thermostatic valves with thread M28 * 1.5
(ex FVR, Evoflow or Flexkoppel).
VAC is regulated by room control center R41.
VAC is also available with connection M30 * 1.5 for valves of other
make or underfloor heating distributor.

Description
The thermostat actuator's characteristic is "on / off".
In the event of a power failure, the actuator closes NC.
The actuator is provided with operating position indication above the nut.
Red - closed
Black - open
The actuator is connected with the supplied cable attached to the underside of the actuator.

Thermal actuators VAO is used in secondary heating and cooling systems.
The actuator is adapted to MMA's thermostatic valves with thread M28 * 1.5
(ex FVR, Evoflow or Flexkoppel).
VAO is regulated by room control center R41.
VAO is also available with connection M30 * 1.5 for other valves
make or underfloor heating distributor.

Description
The thermostat actuator's characteristic is "on / off".
In the event of a power failure, the actuator NO opens.
The actuator is provided with operating position indication above the nut.
Red - closed
Black - open
The actuator is connected with the supplied cable attached to the underside of the actuator.

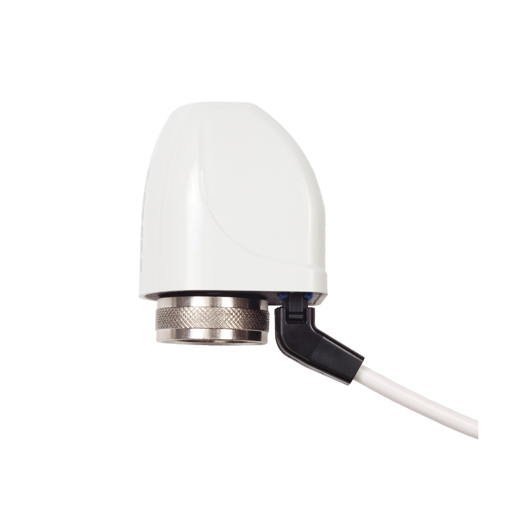

Thermo actuator VMWC is an on / off normally closed actuator.
The actuator is used for MMA's thermostatic valves
and underfloor heating distributor and is regulated with room control center R41.

Description
The thermostat actuator's characteristic is "on / off".
In the event of a power failure, the actuator closes.
The actuator is equipped with LED operating mode indication.
Green LED voltage is on
Blue LED valve is open
LED is hidden under the enclosure.
The actuator is connected with the supplied modular cable
which is attached to the underside of the actuator.

Motorställdonet MOVE för reglering av MMAs ventiler med M28x1,5 eller M30x1,5 anslutning.
Med rumsregulator med kontinuerlig utgång (0-10V) i individuella rumsreglersystem.

Beskrivning
Motorställdonet MOVE med hög ställkraft passar till ventiler med M28x1,5 och M30x1,5 anslutning.
Ställdonet är ett motorställdon som justerar ventilen steglöst.
Ställdonet ställer in sig själv på korrekt slaglängd till respektive ventil, mellan 2-8,5 mm.

TempCo 230 V actuator for Purmo underfloor heating with single-zone receiver.

TempCo 24 V actuator for Purmo underfloor heating with single-zone receiver.

Motoric actuator for TOV controlvalve. 0-10V controlsignal

TempCo actuator adapter ring for connection to Purmo MiniMix underfloor heating shunt.
