Thermostatic Water Temperature Control Valve

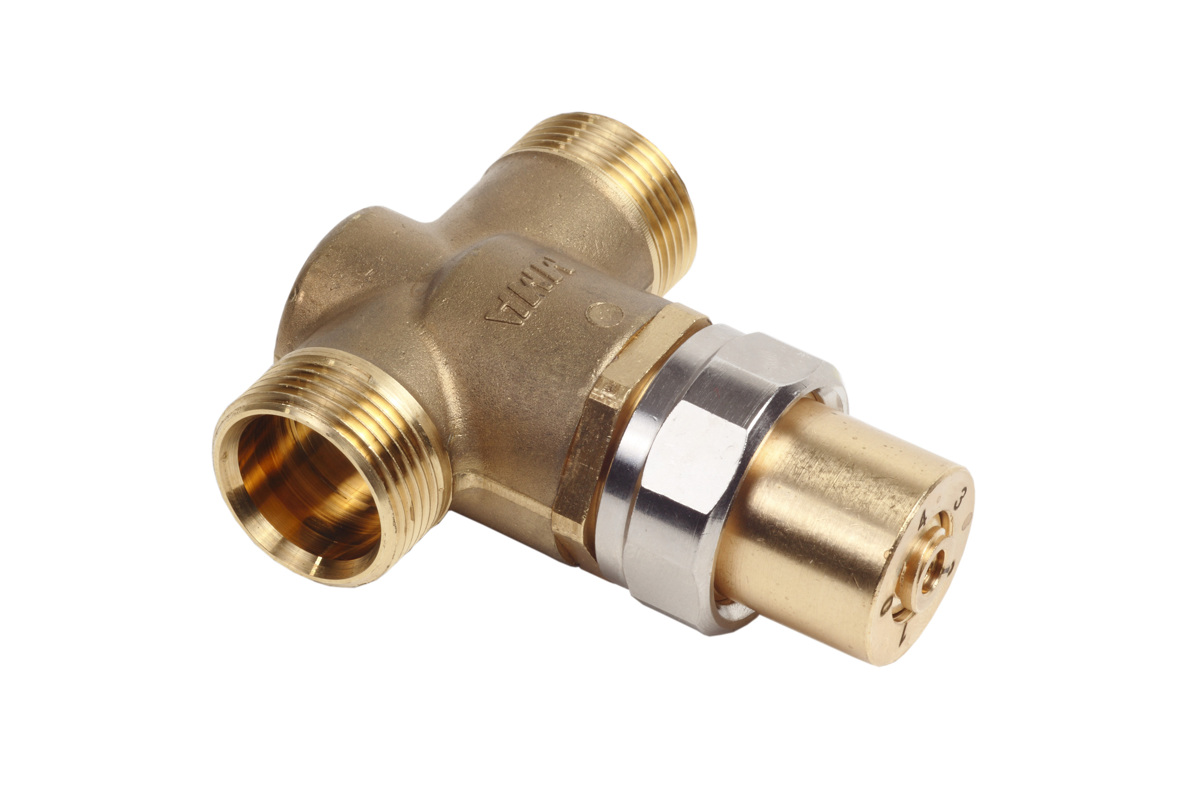

Hotwater circulation valve Evotemp
Thermostatic balancing valve Evotemp F is used as a temperature control valve in district heat exchangers. The Evotemp F has an integrated insert that senses the temperature of the water passing through the valve. Depending on the setting (25-50°C), the valve closes when the water has reached the set temperature. Evotemp F valve is connected with G 3/4″ Note! The pump must withstand that the hot water circulation valve Evotemp closes completely for periods.
Properties | |
Max operating temperature °C | 90 |
Connection dimension | G20 |
Pressure rating | PN16 |
Material | Brass |
Document | Category |
---|---|
Datasheet Evotemp F | Technical data sheet |
Datasheet Evo Temp | Technical data sheet |
