Terminal valve STVT

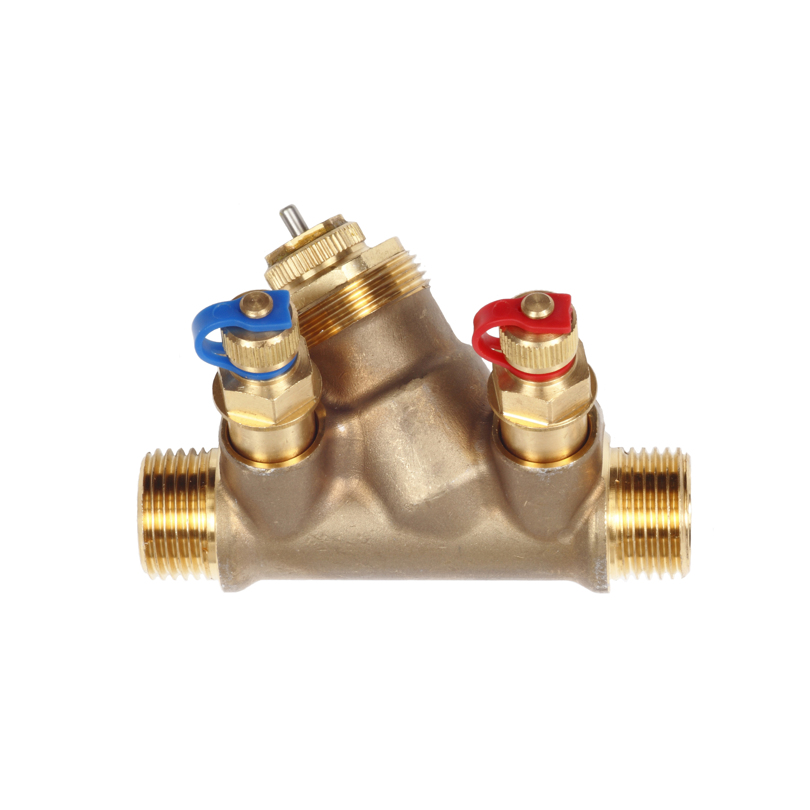

Terminal valve STVT is used for adjustment and measurement in heating and cooling systems. STVT is an adjustment and control valve with presetting. The valve is equipped with self-sealing measuring ports, placed at a 45° degree angle in relation to the actuator. Pre-setting can be carried out using the pre-setting key FN2. STVT comes with external and internal thread 1/2″. The valve can be used with actuator or thermostatic head with M28x1,5 connection.

Max operating temperature °C 100
Connection dimension M28x1,5
Pressure rating PN16
Material Brass
Datasheet STVT Technical data sheet
