Plan Hygiene

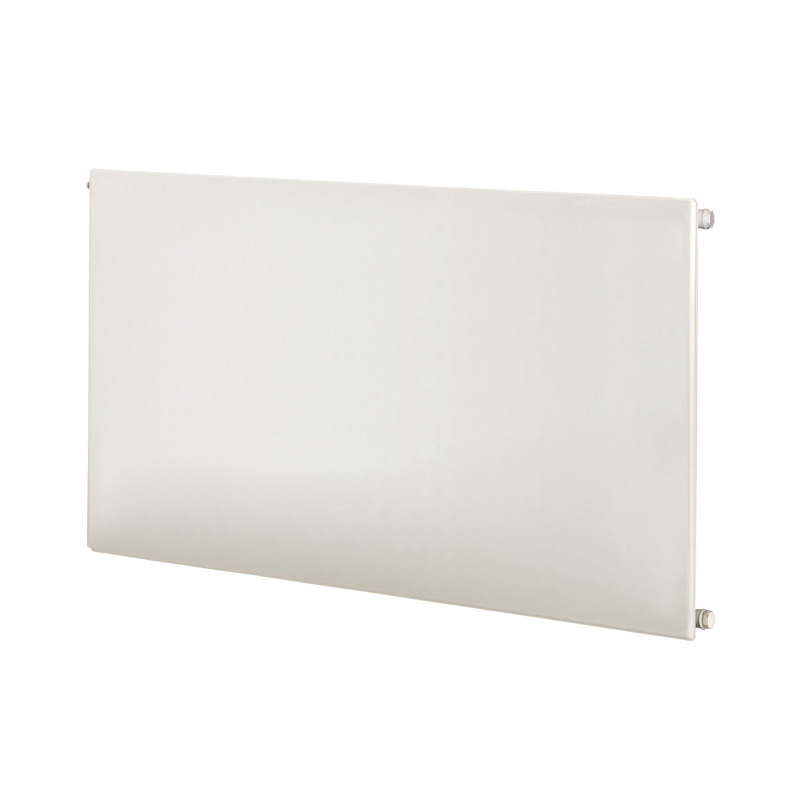

Plan Hygiene panel radiators are characterized by a completely flat front panel. The panel is glued to the profiled, front base heating panel in a manner concealing any protruding edges, when looking at the radiator from the front. Due to the absence of side covers and a top grille, they are intended for applications in health care and other facilities of elevated hygienic requirements. Accessories bundled with the radiator: plug, air vent. Standard white RAL 9016 finish (other colours are available on request for an additional charge). The warranty period is 10 years.
| Properties | |
| Max operating temperature °C | 110 |
| Standard | EN442; EN10130 |
| Connection dimension | 4 x G 1/2 |
| Pressure rating | PN10 |
| Material | Cold rolled steel |
| Standard colour | White RAL 9016 |
| Types | 10 |
| Heights [mm] | 300; 400; 500; 600; 900 |
| Widths [mm] | 400; 500; 600; 700; 800; 900; 1000; 1100; 1200; 1400; 1600; 1800; 2000; 2300; 2600; 3000 |
Side connection ETIM 32. Side connection requires the use of an external radiator valve. In the case of side connection, the bottom connections are plugged.
Side connection ETIM 67. Side connection requires the use of an external radiator coupling or valve. In the case of side connection, the bottom connections are plugged.
Diagonal connection ETIM 37. Diagonal connection requires the use of an external valve. In the case of a diagonal connection, the bottom connections are plugged.
Diagonal connection ETIM 62. Diagonal connection requires the use of an external valve. In the case of a diagonal connection, the bottom connections are plugged.
ETIM 27 Horizontal connection
ETIM 72 Horizontal connection
Purmo radiators are warranted for a period of 10 years* from date of purchase against all manufacturing defects when they are used in normal conditions and for a heating system with hot water. The warranty does not apply to defects caused by installation or handling errors, misuse or factors external to the radiators, such as water quality or oxygen-permeable pipes.
Underfloor heating products and piping systems elements are warranted for a period of 10 years**.
* 6 years for galvanized radiators and 2 years for all electronic and electric components and spare parts sold separately (side covers, top grilles, plastic clips, plugs, air vents, fixing parts)
** 30 years for PexPenta pipes
From 01/01/2021 the following types of radiators are not available in other colour versions than RAL9016 (22 900/2600; 22 900/3000; 33 550/3000; 33 600/2600; 33 600/3000; 33 900/1800; 33 900 / 2000; 33 900/2300; 33 900/2600; 33 900/3000
