Kon Ventil, KON KV
Convectors

Kon Ventil, KON KV

Kon has a discrete elegance in combination with very good heat emitting capability. The steel structure is strong and dependable, which makes it an ideal heat source in public environments with large glass portions and open floor plans. Integrated valve fitting. White RAL 9016 finish.

Properties
Max operating temperature °C 110
Standard EN442; EN10130
Connection dimension 4+2G1/2
Pressure rating PN8
Material Steel profile
Standard colour White RAL 9016
Types 21; 22; 33; 34
Heights [mm] 142; 214; 286
Widths [mm] 600; 800; 1000; 1200; 1400; 1500; 1600; 1800; 2000; 2200; 2300; 2400; 2600; 2800; 3000; 3200; 3400; 3600; 3800; 4000

Side connection ETIM 32. Side connection requires the use of an external radiator valve. In the case of side connection, the bottom connections are plugged.

ETIM 32 Horizontal connection

ETIM 67 Serial connection in one side. Requires the use of external radiator valves. Types 21 and 22 are reversible.

ETIM 67 Serial Convector Horizontal connection

ETIM 32 Serial connection in one side. Requires the use of external radiator valves. Types 21 and 22 are reversible.

ETIM 32 Serial Convector Horizontal connection

Side connection ETIM 67. Side connection requires the use of an external radiator coupling or valve. In the case of side connection, the bottom connections are plugged.

ETIM 67 Horizontal connection

ETIM 88 LR Bottom connection. Bottom connection via integrated valve requires the use of a valve insert. Unused connections are plugged.

ETIM 88 LR Horizontal connection

ETIM 11 Bottom connection, in-right-out-left. Bottom connection via integrated leash requires the use of a valve insert. Unused connections are plugged.

ETIM 11 RL Horizontal connection

Purmo radiators are warranted for a period of 10 years* from date of purchase against all manufacturing defects when they are used in normal conditions and for a heating system with hot water. The warranty does not apply to defects caused by installation or handling errors, misuse or factors external to the radiators, such as water quality or oxygen-permeable pipes.
Underfloor heating products and piping systems elements are warranted for a period of 10 years**.
* 6 years for galvanized radiators and 2 years for all electronic and electric components and spare parts sold separately (side covers, top grilles, plastic clips, plugs, air vents, fixing parts)
** 30 years for PexPenta pipes

10 year warranty
Files
DocumentCategory
Heat output calculation in xls for Kon Heat Output
Installation instruction Flamingo until v11 2023 Installation manual
Data Sheet Technical data sheet
Datasheet FLA ENG to 2023 week 11 Technical data sheet
Installation
PR-Kon-VKO-FV-0920.svg

Kon Ventil, front view
PR-Kon-VKO-T21-SV-0920.svg

Kon Ventil type 21, side view
Accessories

Repair paint

Repair paint in RAL 9016

Bleed screw and dummy plug set

Bleed screw and pre-chromed plug in dim G15 with O-ring

Kon floor support

Floor support for Purmo Kon.

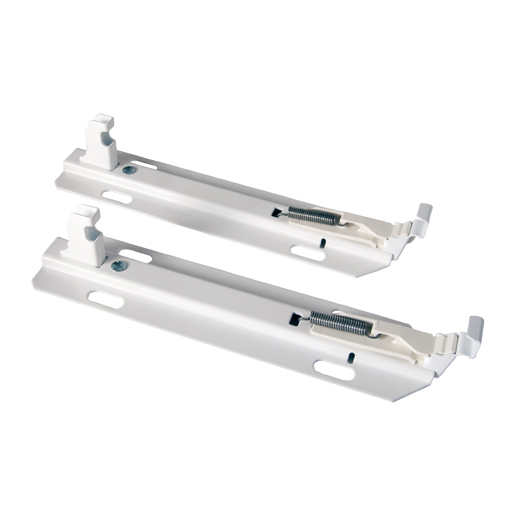

Kon wall bracket

Wall brackets for Purmo Kon.

Evosense

Evosense is a self-actuated adjustable thermostat to provide the best possible regulation of room temperatures. The set value is shown in a window on the thermostat, with a standard range of 0-28°C, but can be delivered from the factory with a higher or lower threshold.

Radiator manifold Evoflow

Radiator manifold with low enviromental impact.

Thermostat Evosense Remote

Evosense thermostatic head with remote sensor connected with capillary tube.

Radiator manifold Flex

Flexible external radiator manifold. Can be used with pre-setting tool for exact Kv. It can be controlled by a M28 thermostat or actuator, for example Evosense

Radiator valve FV

The FV valve is used togehter with a thermostatic head, actuator or manual wheel in heating and cooling systems.

The FV valve can be otained mounted in manifolds.

FV = Valve with pre-setting

Radiator manifold FVRe

The thermostat valve FVRe is used together with max limited thermostats in heating systems. The thermostat valve can be obtained mounted on a manifold.

Radiator valve FVRFe

Radiator coupling FVRe is especially suitable for radiators with high requirements at low noise levels and with requirements for efficient energy use in, for example, ventilation.
Radiator coupling FVRe coupling is available in finished lengths that fit most radiators on the market.
The radiator coupling is regulated with a max limiting thermostat

Description
The FVRe valve has an exact presetting function hidden under the stuffing box.
If the thermostat is removed, the valve closes to a basic position (kv 0.05) and the energy saving function starts.
If the preset kv is higher than 0.05, the temperature in the room will be lower if the thermostat is removed.

The valve also goes down in energy saving mode if the temperature at the thermostat drops.

The safety knob has a washer that is used to set the nominal flow and to temporarily cancel the energy saving function during adjustment.

Radiator coupling FVRe can be mounted side or bottom and has a rotatable control part, which means that you can turn it outwards.
Radiator coupling FVRe can also be mounted upside down.
The distributor has a shut-off under the cover.

Flamingo Integrated insert

Flamingo insert is used to preset and regulate radiators and convectors with integrated manifold. The insert has the opportunity to set the Kv value exactly. There is a clear scale on the insert and with tools the insert is set with accuracy. The insert has a protected setting and must be preset with associated tools. The insert can be used in both 1 and 2 pipe systems. "

Evosense ENTL

Evosense ENTL thermostat is used to regulate valves for heating and cooling in radiator systems, cooling systems and towel warmers.

Window sill beam FBT-20

Window sill beam FBT-20
