Aquilo F1S
Trench Fan Convectors

Aquilo F1S

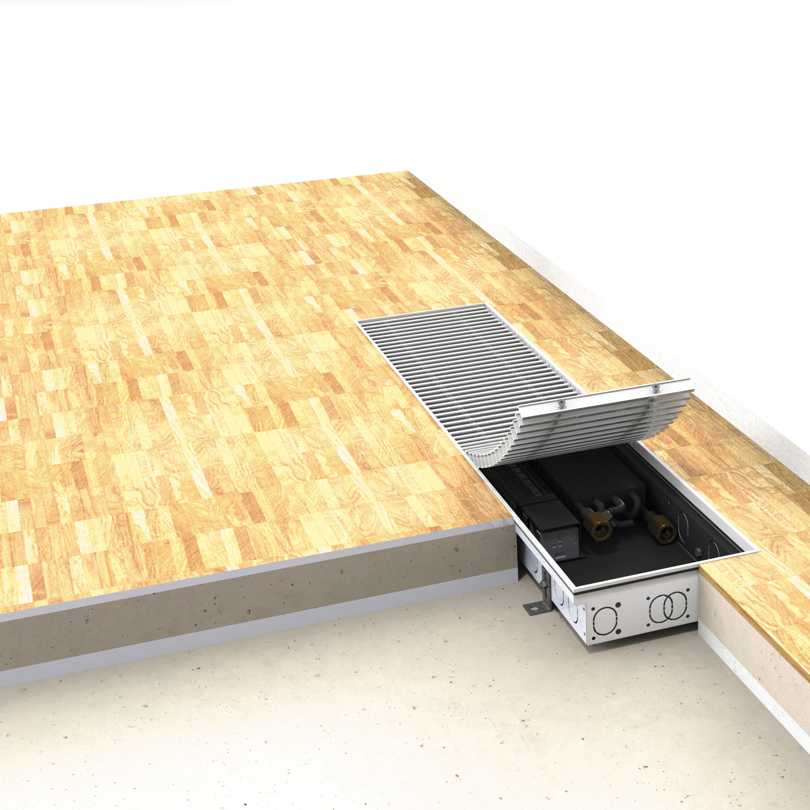

Aquilo F1S trench convectors are specially designed for in-floor installation. The heating element is a copper-aluminum heat exchanger, painted black and mounted inside a double-side galvanized steel duct which is, also painted black on the inside. Aquilo F1S convectors are additionally equipped with noiseless centrifugal fans mounted inside the duct. The number of fans is determined by the length of the convector and the required heat output. The fans are driven by 24 V motors. On the top the convector is protected by a range of decorative grilles made of a choice of different materials. The grille is ordered separately. Grille material: wood (oak, beech). Duralumin in a choice of colours: natural, light brown, dark brown or black stainless steel. The heat exchanger is connected to the heating system by two G ½” internal thread pipes. Electrical accessories required to complete the installation and to be ordered separately include a transformer, as well as a surface-mounted thermostat to control fan speed. Obligatory additional electrical accessories: RAS transformer (~230/24V) appropriate to the convector’s or the group of convectors – size, depending on the number of connected motors, together with a manual switch, or a room thermostat with a manual or automatic speed switch, to regulate the convector’s heat output via a three-level setting of the fan’s speed (the remote-controlled thermostat available). Warranty: 10 years and 2 years for electric and electronics parts

Max operating temperature °C 110
Standard EN 16430
Connection dimension 2 x G 1/2
Pressure rating PN10
Material Several materials
Standard colour Black
Types F1S
Heights [mm] 75; 110
Widths [mm] 700; 800; 900; 1000; 1100; 1200; 1300; 1400; 1500; 1600; 1800; 1999; 2200; 2400; 2500; 2600; 2800; 3000

Purmo radiators are warranted for a period of 10 years* from date of purchase against all manufacturing defects when they are used in normal conditions and for a heating system with hot water. The warranty does not apply to defects caused by installation or handling errors, misuse or factors external to the radiators, such as water quality or oxygen-permeable pipes.
Underfloor heating products and piping systems elements are warranted for a period of 10 years**.
* 6 years for galvanized radiators and 2 years for all electronic and electric components and spare parts sold separately (side covers, top grilles, plastic clips, plugs, air vents, fixing parts)
** 30 years for PexPenta pipes
