Convectors
Aura Comfort WKF

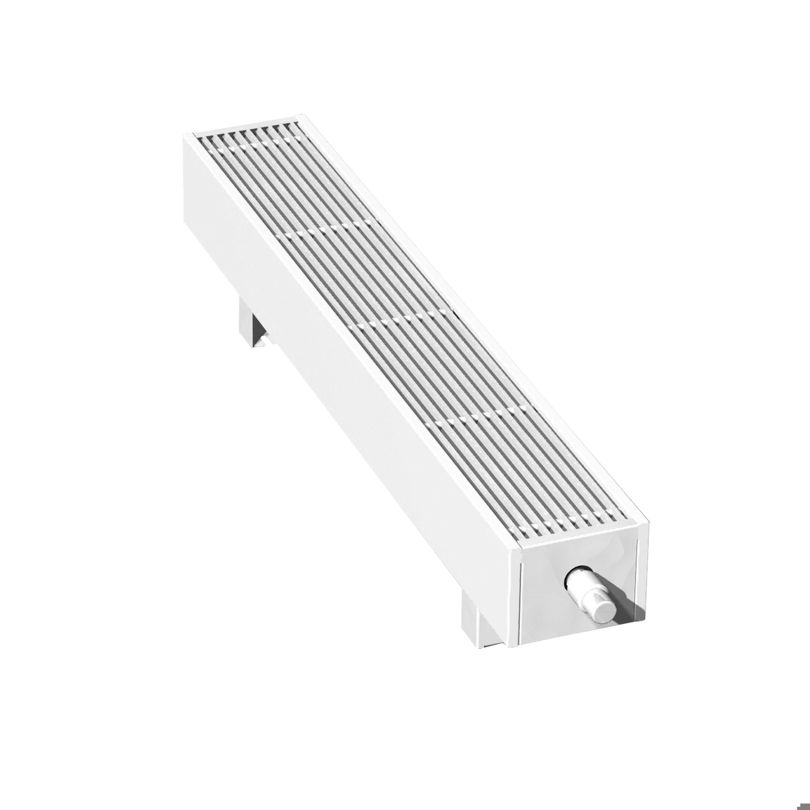

Aura Comfort convectors offer universal usage in office buildings, winter gardens or shop windows, particularly in rooms with huge glazed spaces. The heat exchanger from copper and aluminum has been put into a steel sheating with the duralumin grid. Sheating of Aura convectors is not directly heated by heating water so it eff ectively protects from energy losses by radiation against glazed surfaces and consequently reduces operating costs. The set is to be floor- mounted with the use of aesthetic mounting brackets. Copper-aluminum heat exchanger, cover, vent, set of brackets included. Standard color white RAL 9016. 10 years warranty.
Properties | |
Max operating temperature °C | 110 |
Standard | EN 442 |
Connection dimension | 2 x G 1/2 |
Pressure rating | PN10 |
Material | Several materials |
Standard colour | White RAL 9016 |
Types | WKF 09; WKF 14; WKF 24; WKF 28 |
Heights [mm] | 0; 90; 140; 240; 280 |
Widths [mm] | 0; 600; 700; 800; 900; 1000; 1100; 1200; 1300; 1400; 1500; 1600; 1800; 2000; 2200; 2400; 2600; 2800; 2900 |
Files
Document | Category |
---|---|
Data Sheet | Technical data sheet |
