Plint
Horizontal radiators

Plint

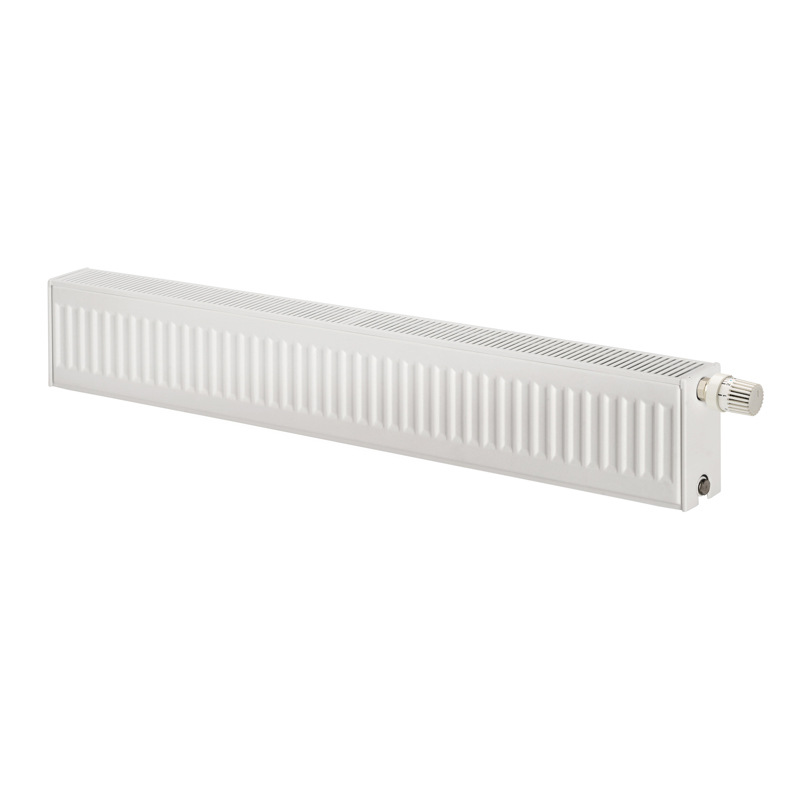

Plint is a traditional panel radiator for closed hydronic heating systems. With a space-saving height of 200 mm, Plint is perfect for installation under large windows in modern environments. Its integrated valve fitting enables attractive and easy installation. White RAL 9016 finish.

Properties
Max operating temperature 110
Standard EN442; EN10130
Connection dimension 6 x G 1/2
Pressure rating PN10
Material Cold rolled steel
Standard colour White RAL 9016
Connections (ETIM) 11,32,37,62,67,88
Types 21; 22; 33; 44
Heights [mm] 200
Widths [mm] 600; 700; 800; 900; 1000; 1100; 1200; 1400; 1600; 1800; 2000; 2300; 2600; 3000

Side connection ETIM 32. Side connection requires the use of an external radiator valve. In the case of side connection, the bottom connections are plugged.

ETIM 32 Horizontal connection

Diagonal connection ETIM 37. Diagonal connection requires the use of an external valve. In the case of a diagonal connection, the bottom connections are plugged.

ETIM 37 Horizontal connection

Diagonal connection ETIM 62. Diagonal connection requires the use of an external valve. In the case of a diagonal connection, the bottom connections are plugged.

Hor-connection-ETIM-62-1219.svg

Side connection ETIM 67. Side connection requires the use of an external radiator coupling or valve. In the case of side connection, the bottom connections are plugged.

ETIM 67 Horizontal connection

ETIM 88 LR Bottom connection. Bottom connection via integrated valve requires the use of a valve insert. Unused connections are plugged.

ETIM 88 LR Horizontal connection

ETIM 11 Bottom connection, in-right-out-left. Bottom connection via integrated leash requires the use of a valve insert. Unused connections are plugged.

ETIM 11 RL Horizontal connection

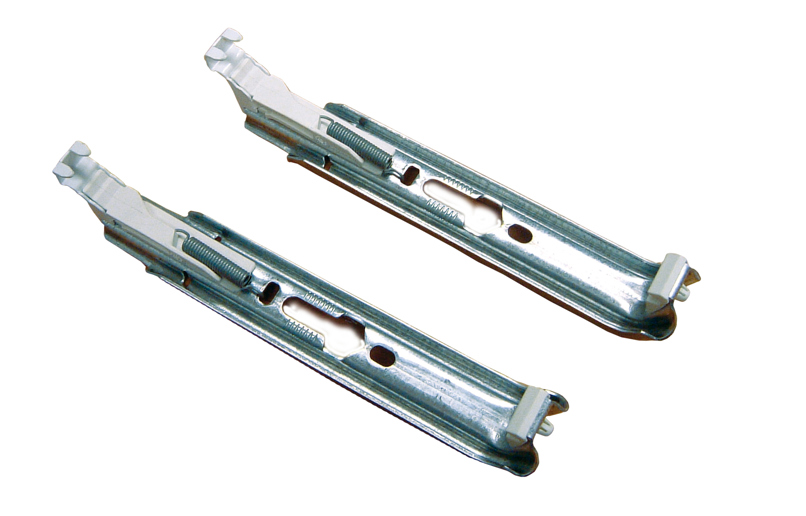

Integrate coupler, M30 valve insert, mounted side panels and top grate, bleed screw and plugs. Note -Brackets are not included in the price.

Purmo radiators are warranted for a period of 10 years* from date of purchase against all manufacturing defects when they are used in normal conditions and for a heating system with hot water. The warranty does not apply to defects caused by installation or handling errors, misuse or factors external to the radiators, such as water quality or oxygen-permeable pipes.
Underfloor heating products and piping systems elemnts are warranted for a period of 10 years**.
* 6 years for galvanized radiators and 2 years for all electronic and electric components and spare parts sold separately (side covers, top grilles, plastic clips, plugs, air vents, fixing parts)
** 30 years for PexPenta pipes

10 year warranty

CE certificate

CE-mark
