Balancing valve Evobalance NPT
Balancing Valves Static

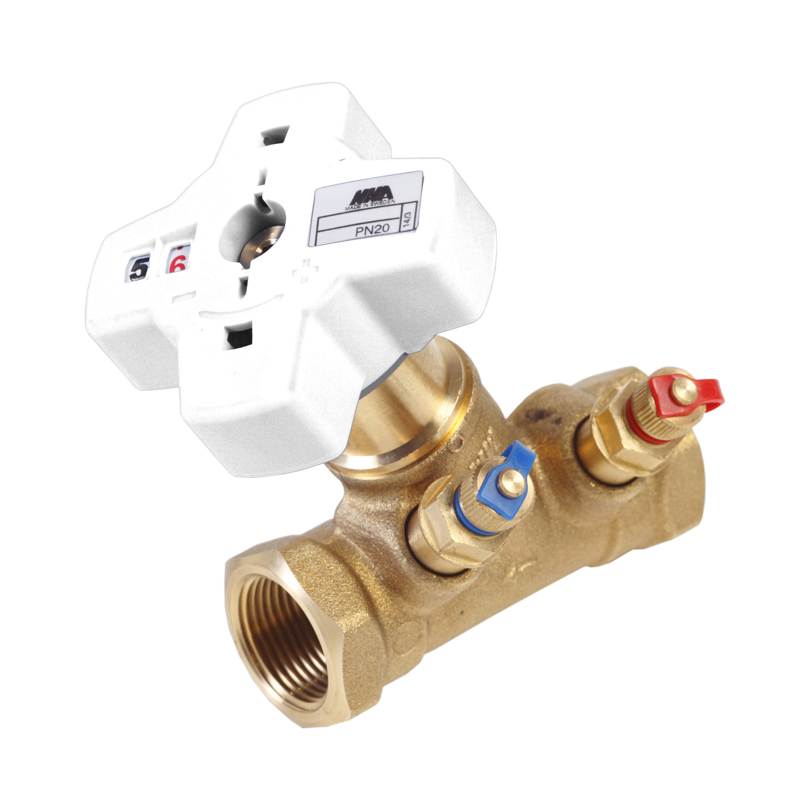

Balancing valve Evobalance

The low lead balancing valve Evobalance is used to balance the flow in hot water circulation, heating-and cooling systems. Evobalance (M) has material that is approved to use in drinking water. Evobalance are dimensioned with nomogram, handwheel or online Applications on smartphones or on our website. Evobalance shall be dimensioned at 50-80 % of maximum flow for the design flow. Minumum recommended differential pressure is 2 kPa. The hand wheel has digital reading which shows whole turns and tenth of a turn. The setting is shown in table format or can be calculated by using software on the website. Any setting can be locked to avoid tampering with the setting of the balancing value. An Allen key of 3 mm is used on the inner spindle to lock the setting. When the setting is locked the valve cannot be opened to a larger value but it can be closed for maintenance of the connected circuit. The pressure test ports are opened by unscrewing the lids. Differential pressure can be measured using a balancing instrument. Mounting direction is clearly shown with an arrow on Evobalance Evobalance (M) has internal threads.

Max operating temperature °C 120
Pressure rating PN20
Material Brass

Balancing valve with drain and measuring function.
Lowlead brass with self sealing measuring plugs. Wheel with 9,9 turns.
Valve will be delivered with 50% open for quick start up of system. Valve will have flow direction marked on body.

Datasheet Evobalance Technical data sheet
