Thermopanel V4 Plan

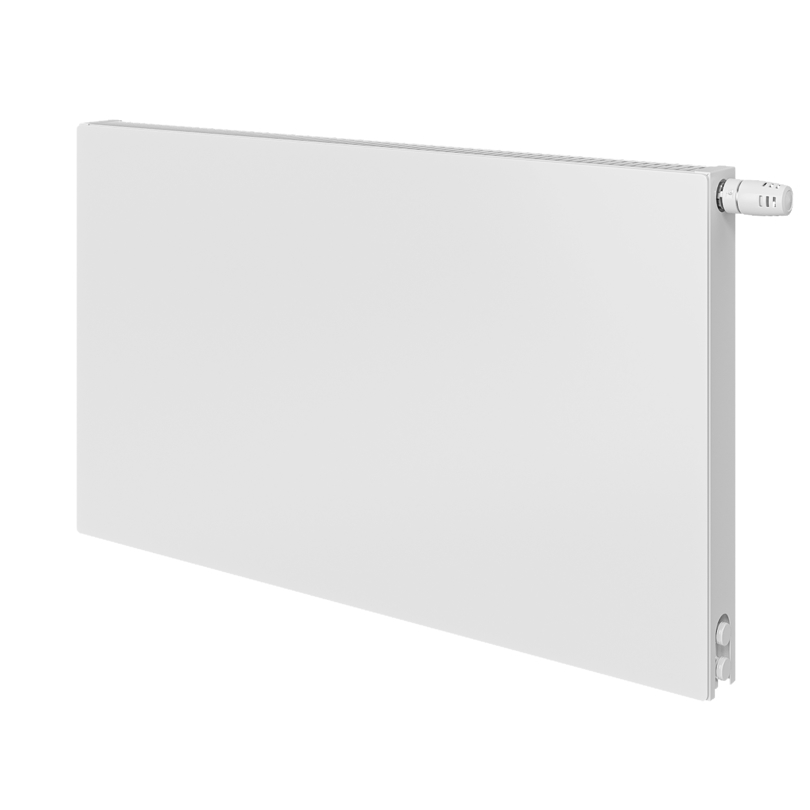

The most flexible radiator in the Nordics. ‘’Plan’’ stands for aesthetic and clean design thanks to the flat front panel. The wide choice of colours in combination of product design ensure discreet and uniform look at installation place. The radiators simple exterior and hidden valve make them easy to keep clean and free of dust. Delivered with preinstalled new valve insert Flamingo (FLA) which ensures accurate pre-setting and energy-efficient operation. The FLA has excellent responsiveness to temperature changes and flow demands.
Faster installation and reduced risk of leaks, thanks to the integrated 4-way connector.
Flexible enough to fit any installation, with accessory 9 different connection configurations to the heating system are available. For hygiene-sensitive environments such as hospitals, the product can be supplied with extra adaptations.
| Properties | |
| Max operating temperature °C | 110 |
| Standard | EN442; EN10130 |
| Connection dimension | M22x1,5 c/c 40mm |
| Pressure rating | PN10 |
| Material | Cold rolled steel |
| Standard colour | White RAL 9016 |
| Types | 11; 21; 22; 33 |
| Heights [mm] | 300; 400; 500; 600 |
| Widths [mm] | 400; 700; 900; 1000; 1200; 1300; 1600; 1800; 2000; 2300; 2600; 3000 |
Bottom, left side connection ETIM 11.
Thanks to the V4 connctor left side connection is possible.
Bottom, right side connection ETIM 88.
Thanks to the V4 connctor right side connection is possible.
Thermopanel V4 Plan panel radiator with integrated valve arrangement, type V4, provided with side panels and top grate. The radiator is delivered complete with brackets, bleed screw, 1/2" plug and insert FLA for thermostat valve.

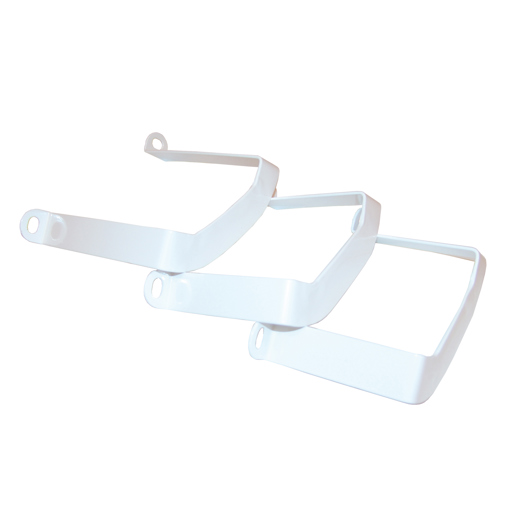

PTB.1 radiators PTB.11 panel radiators Thermopanel type TP Plan Thermopanel type TP V4 provided with concealed integrated coupler with connection on the side and bottom, M22 connection C/C 40 mm (Swedish standard). The radiator is provided with designed Plan front and factory installed TP TIF valve insert. White RAL 9016 finish. Delivered with air vent, bottom plug, side panels and top grid types 11-33, as well as the necessary wall brackets of the type Monclac. Supplied in protective packaging with front protection that is removed at the time of the final cleaning. TPF XX-HLL Output group height, length (dm) Complementary text • Provided with TP Rak 4 • Provided with TP-Flex coupler • Provided with Quattro 2-pipe distributor • Provided with M30 design thermostat Panel radiator accessories • Floor stands • Lock bows for public buildings • ThermoAir supply air intake • Towel bar
Purmo radiators are warranted for a period of 10 years* from date of purchase against all manufacturing defects when they are used in normal conditions and for a heating system with hot water. The warranty does not apply to defects caused by installation or handling errors, misuse or factors external to the radiators, such as water quality or oxygen-permeable pipes.
Underfloor heating products and piping systems elements are warranted for a period of 10 years**.
* 6 years for galvanized radiators and 2 years for all electronic and electric components and spare parts sold separately (side covers, top grilles, plastic clips, plugs, air vents, fixing parts)
** 30 years for PexPenta pipes
