Plan Flex
Horizontal radiators

Plan Flex

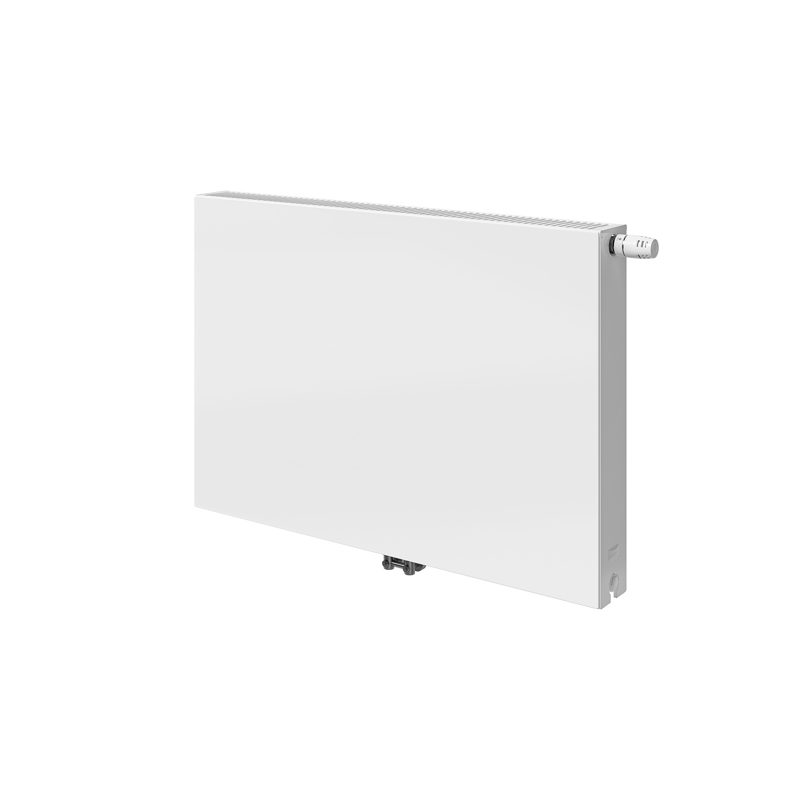

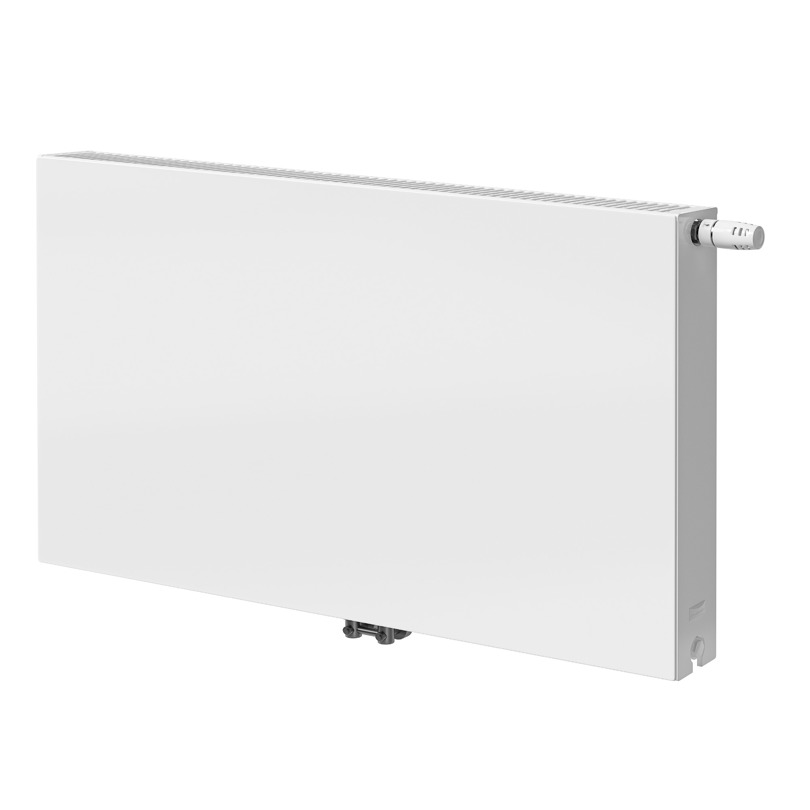

Flex - is a versatile profiled panel radiator with decorative flat front panel, with
bottom middle connection, manufactured in accordance
to the highest quality standards. Thanks to the modern
construction makes it possible to choose the side of mounting of the thermostatic valve insert.

Properties
Max operating temperature °C 110
Standard EN442; EN10130
Connection dimension 6 x G 1/2
Pressure rating PN10
Material Cold rolled steel
Standard colour White RAL 9016
Connections (ETIM) MO
Types 11; 21; 22; 33
Heights [mm] 300; 400; 500; 600; 900
Widths [mm] 400; 500; 600; 700; 800; 900; 1000; 1100; 1200; 1400; 1600; 1800; 2000; 2300; 2600; 3000

ETIM MO Horizontal connection

ETIM MO Horizontal connection

Purmo radiators are warranted for a period of 10 years* from date of purchase against all manufacturing defects when they are used in normal conditions and for a heating system with hot water. The warranty does not apply to defects caused by installation or handling errors, misuse or factors external to the radiators, such as water quality or oxygen-permeable pipes.
Underfloor heating products and piping systems elements are warranted for a period of 10 years**.
* 6 years for galvanized radiators and 2 years for all electronic and electric components and spare parts sold separately (side covers, top grilles, plastic clips, plugs, air vents, fixing parts)
** 30 years for PexPenta pipes

10 year warranty

CE certificate

Files
DocumentCategory
Data Sheet Technical data sheet
Accessories

Wall bracket SMS

Wall bracket SMS for installation of panel radiators.

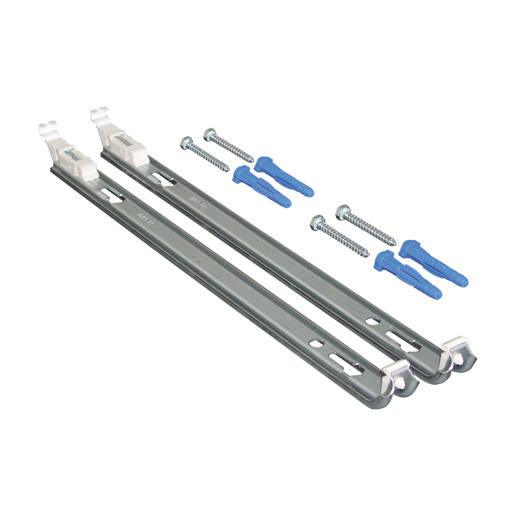

Wall bracket Purmo Monclac

Solid wall bracket

Repair paint

Repair paint in RAL 9016

Top grill Purmo

Top grate for Purmo panel radiators.

Purmo side panel

Solid side panel for the plinth radiator right

Valve insert M30 CV

For thermostats with M30 connection, e.g. design thermostats M30, TA, MMA. For Purmo radiators from 2011 or later. NOTE Not for Purmo Kon

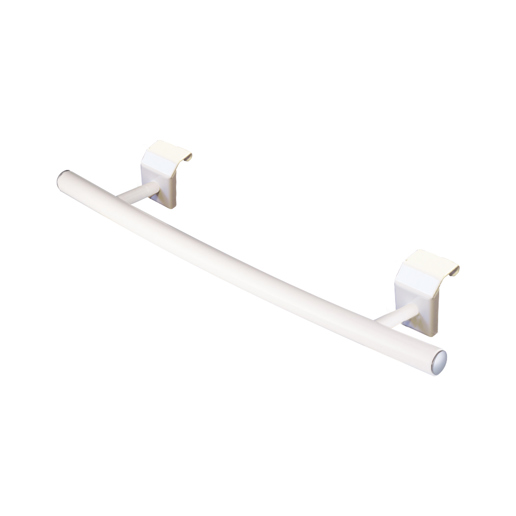

Plan towel bar

Towel bar for panel radiators with Plan or Ramo front (type 11-33).

Bleed screw

Bleed screw for Purmo and Thermopanel radiators.

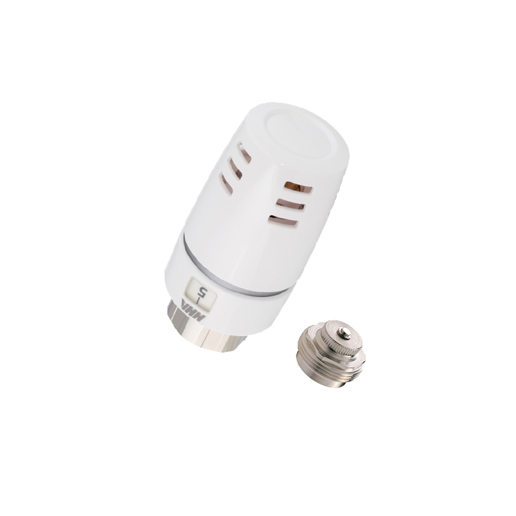

Thermostat Evosense with AGA adapter

The thermostatic Evosense is used to control room temperature via the integrated Ecobrass sensor with W-motion enclosed technology on thermostatic radiator valves in heating systems. MMA Evosense fits all AGA/ TP radaiators with the included adaptor.
The unique Evosense sprint is designed to shorten commissioning time by setting all valves at nominal setting and adding state of the art balancing accuracy enabling energy savings and lowering return temperature.

Flamingo Integrated insert

Flamingo insert is used to preset and regulate radiators and convectors with integrated manifold. The insert has the opportunity to set the Kv value exactly. There is a clear scale on the insert and with tools the insert is set with accuracy. The insert has a protected setting and must be preset with associated tools. The insert can be used in both 1 and 2 pipe systems. "

Air screw

Air screw for bleeding of radiators.
