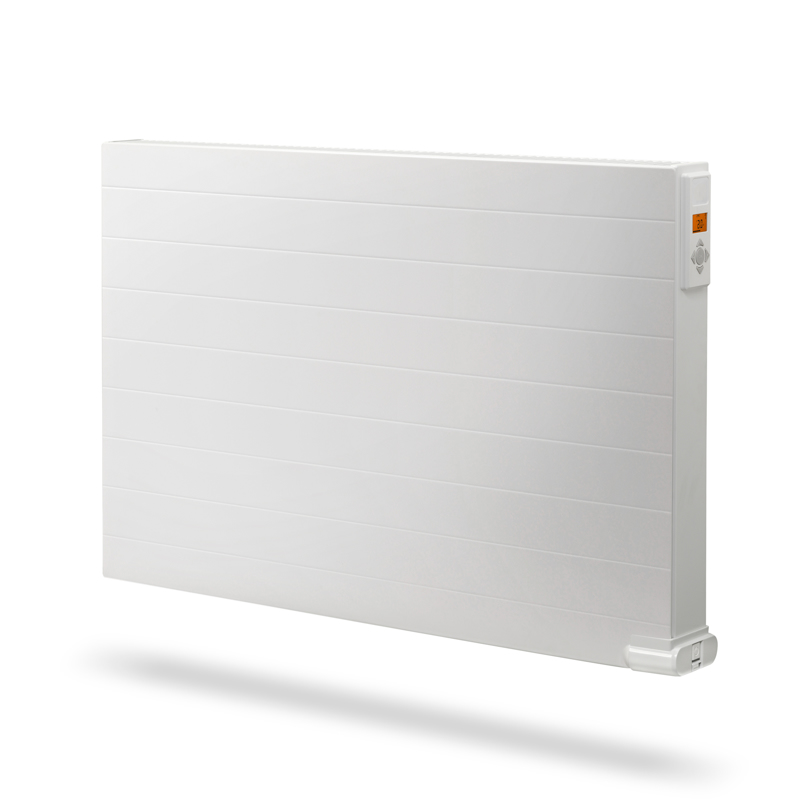

Oil-filled electric radiator, flat front with horizontal lines. Electronic thermostat with digital display.
|Material||Cold rolled steel|
|Standard colour||White RAL 9016|
|Accessories||• Connection cable for plug connection (230 V). The central temperature lowering option/slave coupling is not possible with this accessory. • IP spray-resistant guard for upgrade to IP 44 • Touch E3 touchscreen|
|Heights [mm]||300; 500|
|Widths [mm]||400; 500; 550; 650; 800; 950; 1000; 1050; 1100; 1250; 1300; 1500; 1600; 2000|
|Thermostat||Advanced digital thermostat with precise control. The surface temperature can be lowered to 75˚C or 60˚C. Temperature levels 75˚C and 60˚C lower the output of the radiator to 70% and 55% for a single radiator and 90% and 80% for a double radiator. Adaptive start with timer function. Weekly programme individually adjusted in each radiator. However, LVI recommends a central external clock or Touch E3 when a weekly programme is needed. Sequential temperature control of front and rear panel. Open window function. Lockable thermostat unit. Thermostat housing manufactured from self-extinguishing and UV-resistant plastic ABS-PC V0. Temperature reduction is activated manually or via a central fitting and separate N-line. A 'plug-in contact' is installed on the radiator for interconnection of radiator and accompanying wall outlet. Compatible with master/slave coupling (max 10 slaves, only applies to Yali C/D/P/R)|
Monclac wall brackets and screws for fixed installation are included.
2 years warranty for all electronic and electric components and spare parts sold separately (side covers, top grilles, plastic clips, plugs, air vents, fixing parts)
|CE Declaration Yali Ramo 400V Class 1.||Declaration of Conformity|
|CE Declaration Yali Ramo 230V Class 1.||Declaration of Conformity|
|Installation and operating manual for Yali Digital, Parada and Ramo||Installation manual|
|LVI change of thermostat||Operating Manual|
|RoHS document for electrical radiators Yali D/P/R/C and Kaba made in Rettig UK Ltd, 2017.||RoHS|
|Data Sheet||Technical data sheet|
