Wiring centres

Wiring centres

To control actuators on manifolds or single valves. Mainly for radiant heating and cooling in underfloor heating systems. Requires a user interface like a room control or similar.

Find your product

Unisenza Plus Wiring Centre

Unisenza Plus Receiver

The Unisenza Plus Receiver can be used for wireless control of boiler, pump or zone valves in a central heating system. It has a two-channel relay output for control of both heating and hot water and has an OpenTherm interface with automatic detection. In addition, it can be paired with the Unisenza Plus Thermostat and Unisenza Plus Electronic Thermostatic Head in the product platform to support multiple applications and create a complete smart heating solution.

Unisenza Wiring Center

For safe and easy wiring of Unizenza room thermostats and actuators. Suitable for heating and cooling operation. For max. 10 room thermostats and 2 actuators per room. Integrated pump switch-off module (live contact in 230V version) with pump protection function. Boiler/heat pump contact (relay). Connection for optional dew point and excess temperature sensor. LED switching status indicators for pump and boiler contacts, heating or cooling mode operation, dew point exceeded, thermostat request, etc.. Click mounting on DIN rail or screw mounting. Euro plug pre-wired (230V version) or connection via external transformer (24V version). Extended 5 year warranty

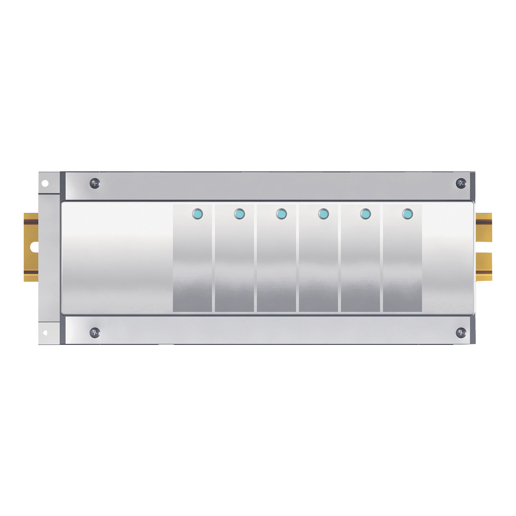

TempCo Connect slave module

Cable-bound TempCo slave module for Purmo underfloor heating.

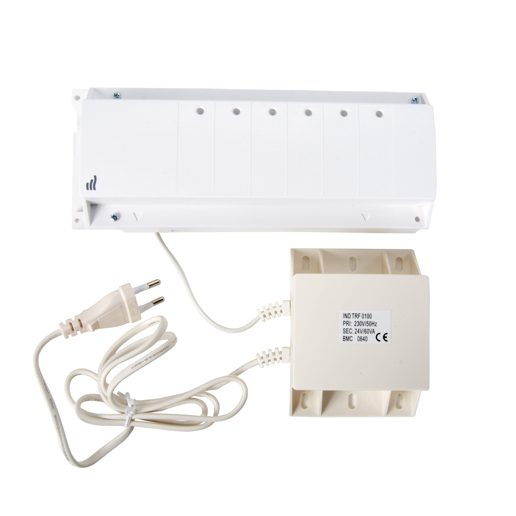

TempCo Connect junction box

Cable-bound TempCo Connect junction box for Purmo underfloor heating. Base module for up to 6 temperature controllers with integrated heater and pump module. LED indicator for connection status. For installation on DIN rail The 24V version has an external transformer.

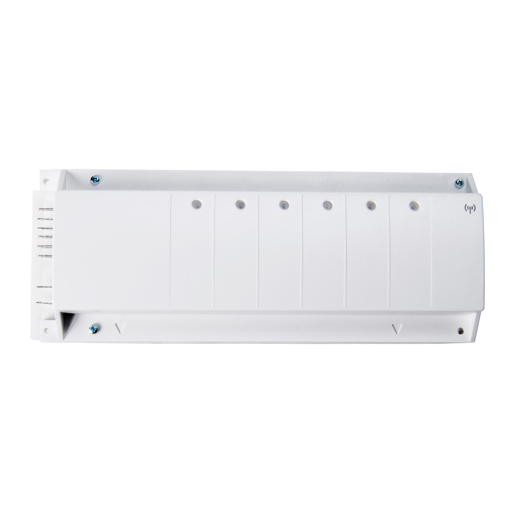

TempCo Connect Slave 6S RF

Switching block for expansion of 6 zones.
