Aura Slim Comfort WKE
Convectors

Aura Slim Comfort WKE

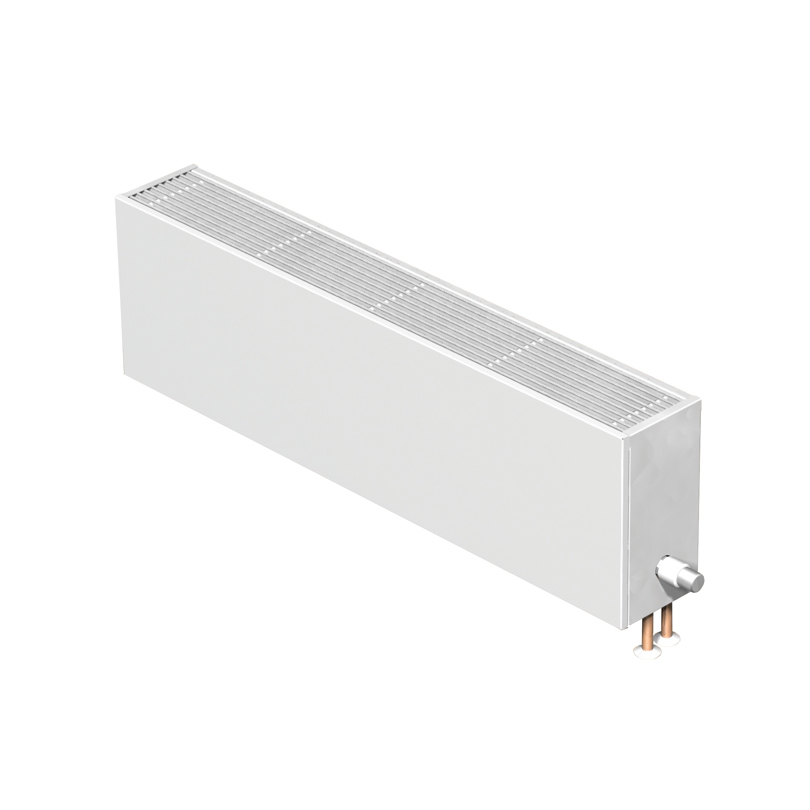

Wall – mounted Aura Slim convectors supplement in an optimum way the basic range of the onfloor Aura and trench convectors Aquilo. Aura Slim fl at convectors meet the contradictory requirements for minimal dimensions, maximal output and amiable
construction as for design. The conception of Aura Slim convectors is built on implementation of steel sheating and grid with heat exchanger from copper and aluminum similar to those applied in the onfloor Aura convectors. Sheathing with longitudinal duralumin. The basic colour version makes it possible for the body to adapt easily into its environment while the optional non-standard colourful version helps to emphasize the body and makes it an integral part of the interior. Aura Slim Comfort convectors are produced in 360 standard dimensional types. Steel sheating with duralumin grid and brackets are equipped with painting powder colour in RAL 9016. Other colours from the RAL palette at an additional cost. 10 years warranty.

Properties
Max operating temperature °C 110
Standard EN 442
Connection dimension 2 x G 1/2
Pressure rating PN10
Material Several materials
Standard colour White RAL 9016
Types WKE 14; WKE 24; WKE 28; WKE 35; WKE 50; WKE 65
Heights [mm] 140; 240; 280; 350; 500; 650
Widths [mm] 400; 500; 600; 700; 800; 900; 1000; 1100; 1200; 1300; 1400; 1500; 1600; 1800; 2000
Files
DocumentCategory
Data Sheet Technical data sheet
