Thermopanel V4 is a water borne radiator with integrated valve coupler. Thanks to the concealed V4 coupler, you can connect the radiator from the side and from below. Thermopanel V4 is delivered with grate, side panels, wall brackets and pre-assembled valve insert.
Thermopanel V4 was developed to meet high demands on effective logistics and modern design. A radiator that is delivered complete from the factory, with everything installed. No loose parts and no extra installation work. You installer easily fastens the accompanying brackets. Then you only have to hand the radiator and connect it to the water borne heating system. Easy, fast, effective and also in an easy-to-care-for design.
Thermopanel has unique and appreciated features. The patented V4 coupler is welded in a concealed position behind the radiator body with an entirely unique method for the sector. No visible pipes and full freedom to install the radiator for either bottom or side connection. The pre-installable valve insert is seated in the location and your installer chooses the thermostat for you according to your needs.
|Max operating temperature||110|
|Connection dimension||M22x1,5 c/c 40mm|
|Material||Cold rolled steel|
|Standard colour||White RAL 9016|
|Types||10; 11; 21; 22; 33|
|Heights [mm]||300; 400; 500; 600; 900|
|Widths [mm]||400; 500; 600; 700; 800; 900; 1000; 1100; 1200; 1300; 1400; 1600; 1800; 2000; 2300; 2600; 3000|
ETIM TP 2-11 Horizontal connection
ETIM TP-7-88 Horizontal connection
Panel radiator with integrated valve arrangement, type V4, provided with side panels and top grate. The radiator is delivered complete with brackets, bleed screw, 1/2" plug and insert MMA TIF for thermostat valve.

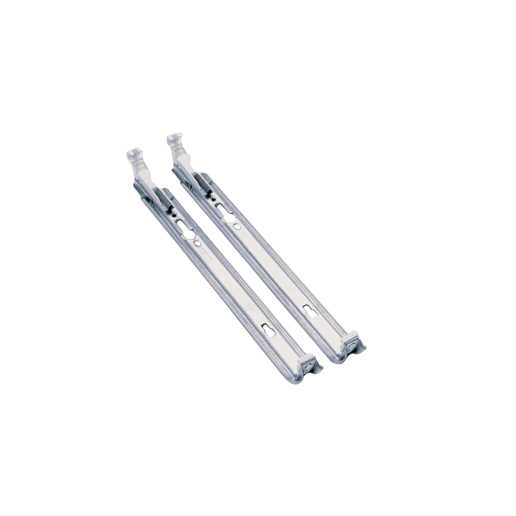

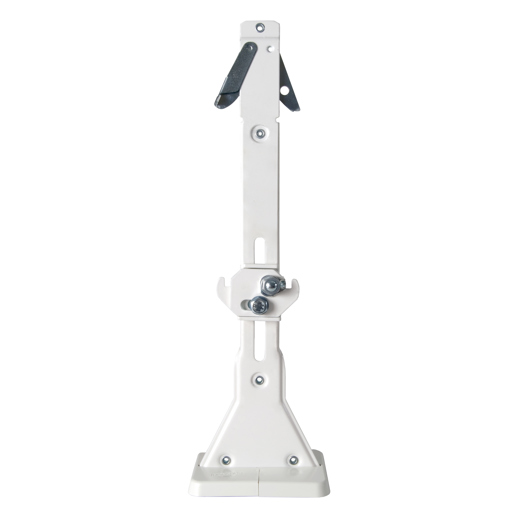

PTB.1 radiators PTB.11 panel radiators Thermopanel type TP V4 Fabrikat Thermopanel type TP V4 provided with concealed integrated coupler with connection on the side and bottom, M22 connection C/C 40 mm (Swedish standard). The radiator is provided with factory installed TP TIF tamper-proof valve set. White RAL 9016 finish. Delivered with bleed valve, bottom plug, side panels and top grate, as well as the necessary wall brackets of the type Monclac. Supplied in protective packaging with front protection that is removed at the time of the final cleaning. TP XX-HLL Output group height, length (dm) Complementary text • Provided with TP Rak 4 • Provided with TP-Flex coupler • Provided with Quattro 2-pipe distributor • Provided with M30 design thermostat Panel radiator accessories • Floor stands • Lock bows for public buildings • ThermoAir supply air intake • Towel bar
Purmo radiators are warranted for a period of 10 years* from date of purchase against all manufacturing defects when they are used in normal conditions and for a heating system with hot water. The warranty does not apply to defects caused by installation or handling errors, misuse or factors external to the radiators, such as water quality or oxygen-permeable pipes.
Underfloor heating products and piping systems elemnts are warranted for a period of 10 years**.
* 6 years for galvanized radiators and 2 years for all electronic and electric components and spare parts sold separately (side covers, top grilles, plastic clips, plugs, air vents, fixing parts)
** 30 years for PexPenta pipes
|Heat output in xls-format for panel radiators Thermopanel V4||Heat Output|
|Pre-setting FV 4||Installation manual|
