Aquilo FMS
Trench Convectors

Aquilo FMS

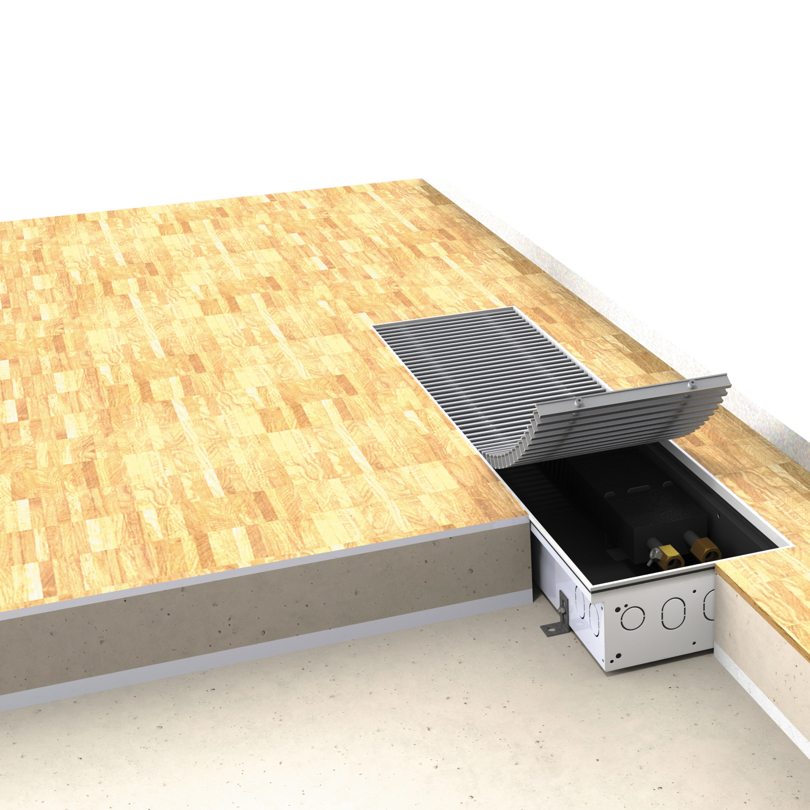

Aquilo FMS trench convectors are specially designed for in-floor installation. The heating element is a copper-aluminum heat exchanger, painted black and mounted inside a double-side galvanized steel duct which is also painted black on the inside. On the top the convector is protected by a range of decorative grilles made of a choice of different materials. The grille is ordered separately. Grille material: wood (oak, beech) or duralumin in a choice of colours: natural, light brown, dark brown or black, stainless steel. The heat exchanger is connected to the heating system by two G ½” internal thread pipes. Warranty: 10 years

Properties
Max operating temperature °C 110
Standard EN 16430
Connection dimension 2 x G 1/2
Pressure rating PN10
Material Several materials
Standard colour Black
Types FMS
Heights [mm] 90; 110; 140; 190
Widths [mm] 700; 800; 900; 1000; 1100; 1200; 1300; 1400; 1500; 1600; 1800; 1999; 2200; 2400; 2500; 2600; 2700; 2800; 2900; 3000; 3200; 3400; 3600

CE certificate

Files
DocumentCategory
Heat output calculation in xls for Aquilo Heat Output
Aquilo - Connection of a new model Installation manual
Data Sheet Technical data sheet
