Delta Ventil
Column Radiators

Delta Ventil

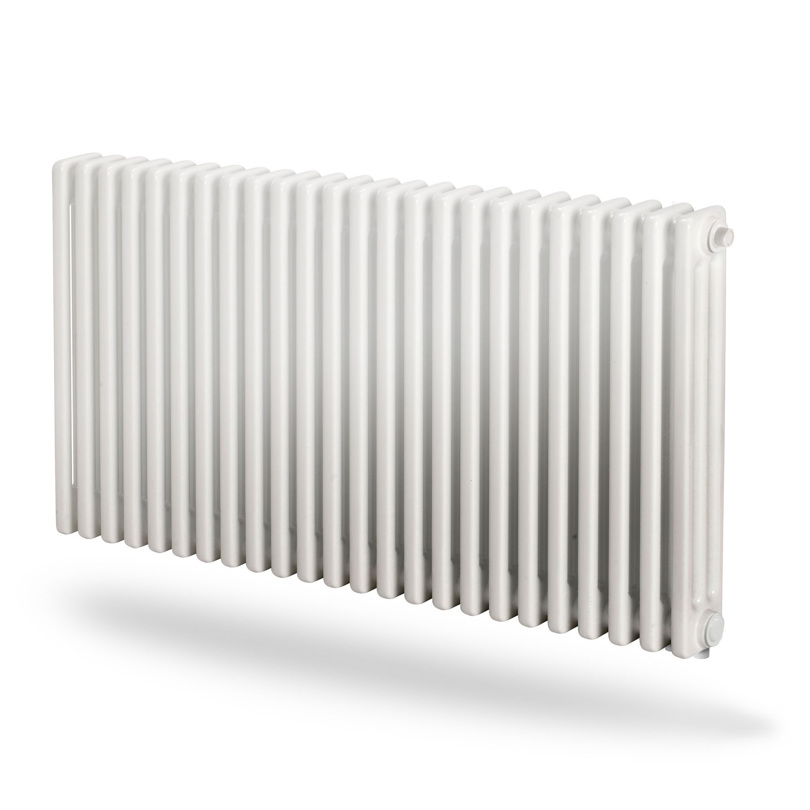

Delta is an elegant section radiator that combines modern architecture with traditional heating technology. Laser welding practically eliminates all weld joints and provides a guaranteed flat surface. On the interior of the radiator, the laser welding prevents the excess welding material from accumulating and reduces the risk for friction and corrosion. The result is a quieter, more effective radiator that lasts longer. The D-shaped profiles for which the Delta is named are not only appealing, they also improve performance by up to 10 % compared to the conventional design. Delta Ventil has a concealed valve arrangement. The most important thing of all is that the Delta assortment makes it possible for you to get the exact radiator you want exactly where you want to have it. Long, short, vertical or horizontal - and in the colour you want. It is suitable for renovation objects and new projects alike. In addition to its availability in 28 different heights, you can choose between 2, 3, 4, 5 or 6 sections, from 300 to 3000 mm in height and lengths from 200 to 2500.

Properties
Max operating temperature °C 110
Standard EN442
Connection dimension 6 x G 1/2
Pressure rating PN10
Material Steel profile
Standard colour White RAL 9016
Types 2; 3; 4; 5; 6
Heights [mm] 155; 300; 350; 365; 400; 415; 450; 500; 550; 565; 600; 665; 750; 900; 965; 1000; 1065; 1100; 1200; 1500; 1800; 2000; 2200; 2500; 2800; 3000
Widths [mm] 200; 250; 300; 350; 400; 450; 500; 550; 600; 650; 700; 750; 800; 850; 900; 950; 1000; 1050; 1100; 1150; 1200; 1250; 1300; 1350; 1400; 1450; 1500; 1550; 1600; 1650; 1700; 1750; 1800; 1850; 1900; 1950; 2000; 2050; 2100; 2150; 2200; 2400; 2500

ETIM 11 Bottom connection, in-left-out-right.

ETIM 11 LR Horizontal connection

ETIM 11 Bottom connection, in-right-out-left. Bottom connection via integrated leash requires the use of a valve insert. Unused connections are plugged.

ETIM 11 RL Horizontal connection

ETIM 18 Vertical connection

ETIM 18 Vertical connection

ETIM 81 Vertical connection

ETIM 81 Vertical connection

ETIM MO Vertical mid-connection

ETIM MO Vertical connection

ETIM OM Vertical mid-connection

ETIM OM Vertical connection

Purmo radiators are warranted for a period of 10 years* from date of purchase against all manufacturing defects when they are used in normal conditions and for a heating system with hot water. The warranty does not apply to defects caused by installation or handling errors, misuse or factors external to the radiators, such as water quality or oxygen-permeable pipes.
Underfloor heating products and piping systems elements are warranted for a period of 10 years**.
* 6 years for galvanized radiators and 2 years for all electronic and electric components and spare parts sold separately (side covers, top grilles, plastic clips, plugs, air vents, fixing parts)
** 30 years for PexPenta pipes

10 year warranty

CE certificate

Files
DocumentCategory
Data Sheet Technical data sheet
Installation
