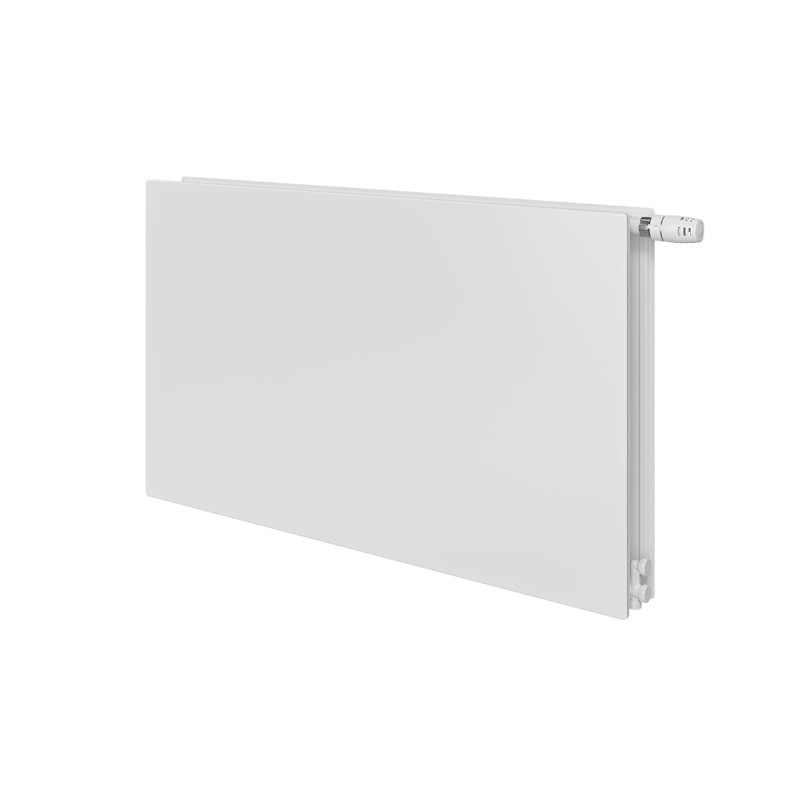

Thermopanel V4 Plan Hygien
The most flexible radiator in the Nordics. Delivered with preinstalled new valve insert Flamingo (FLA) which ensures accurate pre-setting and energy-efficient operation. The FLA has excellent responsiveness to temperature changes and flow demands.
Faster installation and reduced risk of leaks, thanks to the integrated 4-way connector.
Flexible enough to fit any installation, with accessory 9 different connection configurations to the heating system are available. For hygiene-sensitive environments such as hospitals, the product can be supplied with extra adaptations.
| Properties | |
| Max operating temperature °C | 110 |
| Standard | EN442; EN10130 |
| Connection dimension | M22x1,5 c/c 40mm |
| Pressure rating | PN10 |
| Material | Cold rolled steel |
| Standard colour | White RAL 9016 |
| Types | 30 |
| Heights [mm] | 600 |
| Widths [mm] | 1400 |
Panel radiator with integrated valve arrangement, type V4, without with side panels and top grate. The radiator is delivered complete with brackets, bleed screw, 1/2" plug and insert FLA for thermostat valve.
PTB.1 radiators PTB.11 panel radiators Thermopanel type TP V4 Fabrikat Thermopanel type TP V4 provided with concealed integrated coupler with connection on the side and bottom, M22 connection C/C 40 mm (Swedish standard). The radiator is provided with factory installed TP TIF tamper-proof valve set. White RAL 9016 finish. Delivered with bleed valve, bottom plug, side panels and top grid types 11-33, as well as the necessary wall brackets of the type Monclac. Supplied in protective packaging with front protection that is removed at the time of the final cleaning. TP XX-HLL Output group height, length (dm) Complementary text • Provided with TP Rak 4 • Provided with TP-Flex coupler • Provided with Quattro 2-pipe distributor • Floor stands • Lock bows for public buildings • ThermoAir supply air intake • Towel bar
Purmo radiators are warranted for a period of 10 years* from date of purchase against all manufacturing defects when they are used in normal conditions and for a heating system with hot water. The warranty does not apply to defects caused by installation or handling errors, misuse or factors external to the radiators, such as water quality or oxygen-permeable pipes.
Underfloor heating products and piping systems elements are warranted for a period of 10 years**.
* 6 years for galvanized radiators and 2 years for all electronic and electric components and spare parts sold separately (side covers, top grilles, plastic clips, plugs, air vents, fixing parts)
** 30 years for PexPenta pipes
