Narbonne V
Vertical designer radiators

Narbonne V

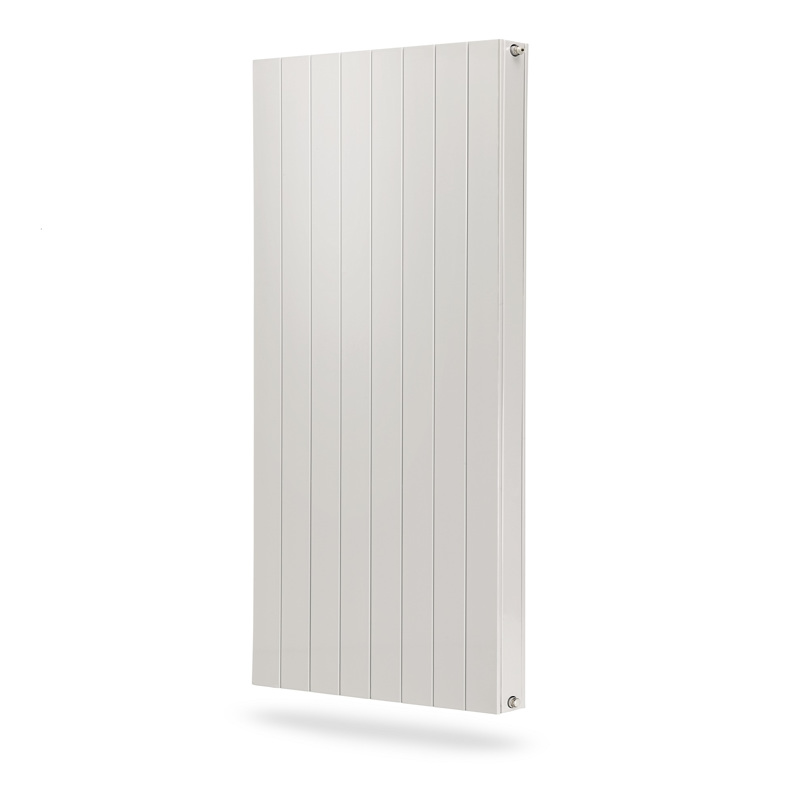

Narbonne V is composed of several interconnected profiled steel heating elements of a rectangular cross section. Each convector is equipped with four connecting openings, each with internal thread G ½”, enabling side connection, both from the left and the right-hand side. Narbonne V is a decorative radiator ideally suited for interiors with a higher standard of finish. It is especially designed for public spaces such as offices. Narbonne V radiator is equipped with two side covers, but no top masking grille. Plug and air vent supplied with the heater. Standard colour: white RAL 9016, other colours from the RAL colour chart are available on request. The warranty period is 10 years.

Properties
Max operating temperature °C 110
Standard EN442
Connection dimension 2 x G 1/2
Pressure rating PN5
Material Steel profile
Standard colour White RAL 9016
Connections (ETIM) 67
Types 10; 11; 20; 21
Heights [mm] 1200; 1400; 1600; 1800; 2000; 2200
Widths [mm] 142; 214; 286; 358; 430; 502; 574; 646; 718; 790; 862; 934; 1006; 1078; 1150; 1222; 1294; 1366; 1438; 1510

Side connection ETIM 32. Side connection requires the use of an external radiator valve. In the case of side connection, the bottom connections are plugged.

ETIM 32 Horizontal connection

Diagonal connection ETIM 37. Diagonal connection requires the use of an external valve. In the case of a diagonal connection, the bottom connections are plugged.

ETIM 37 Horizontal connection

Diagonal connection ETIM 62. Diagonal connection requires the use of an external valve. In the case of a diagonal connection, the bottom connections are plugged.

Hor-connection-ETIM-62-1219.svg

Side connection ETIM 67. Side connection requires the use of an external radiator coupling or valve. In the case of side connection, the bottom connections are plugged.

ETIM 67 Horizontal connection

ETIM 72 Horizontal connection

ETIM 72 Horizontal connection

ETIM 27 Horizontal connection

ETIM 27 Horizontal connection

CE certificate

Files
DocumentCategory
Data Sheet Technical data sheet
