Narbonne
Horizontal designer radiators

Narbonne

Narbonne convector radiators are made of a series of interconnected profiled steel heating elements with a rectangular cross-section. Connections: 4x G ½ " on both sides. Narbonne has two side covers and a top grill type. The heating profiles mounted horizontally keep a gap of 2 mm inbetween, allowing free thermal expansion of elements and perfect varnish coverage of the entire surface of the radiator. Color RAL 9016, other colors from the RAL palette on request. 10 years warranty.

Properties
Max operating temperature °C 110
Standard EN442
Connection dimension 2 x G 1/2
Pressure rating PN5
Material Steel profile
Standard colour White RAL 9016
Connections (ETIM) 67
Types 10; 11; 20; 21; 22; 23; 34; 35; 46; 47; 58
Heights [mm] 0; 70; 142; 214; 286; 358; 430; 502; 574; 646; 718; 790
Widths [mm] 0; 500; 600; 700; 800; 900; 1000; 1100; 1200; 1300; 1400; 1500; 1600; 1700; 1800; 1900; 2000; 2200; 2400; 2600; 2800; 3000; 3200; 3400; 3600; 3800; 4000

Side connection ETIM 32. Side connection requires the use of an external radiator valve. In the case of side connection, the bottom connections are plugged.

ETIM 32 Horizontal connection

Diagonal connection ETIM 37. Diagonal connection requires the use of an external valve. In the case of a diagonal connection, the bottom connections are plugged.

ETIM 37 Horizontal connection

Side connection ETIM 67. Side connection requires the use of an external radiator coupling or valve. In the case of side connection, the bottom connections are plugged.

ETIM 67 Horizontal connection

Diagonal connection ETIM 62. Diagonal connection requires the use of an external valve. In the case of a diagonal connection, the bottom connections are plugged.

Hor-connection-ETIM-62-1219.svg

ETIM 18 Vertical connection

ETIM 18 Vertical connection

ETIM 81 Vertical connection

ETIM 81 Vertical connection

Purmo radiators are warranted for a period of 10 years* from date of purchase against all manufacturing defects when they are used in normal conditions and for a heating system with hot water. The warranty does not apply to defects caused by installation or handling errors, misuse or factors external to the radiators, such as water quality or oxygen-permeable pipes.
Underfloor heating products and piping systems elements are warranted for a period of 10 years**.
* 6 years for galvanized radiators and 2 years for all electronic and electric components and spare parts sold separately (side covers, top grilles, plastic clips, plugs, air vents, fixing parts)
** 30 years for PexPenta pipes

10 year warranty

CE certificate

CE-mark
Files
DocumentCategory
Data Sheet Technical data sheet

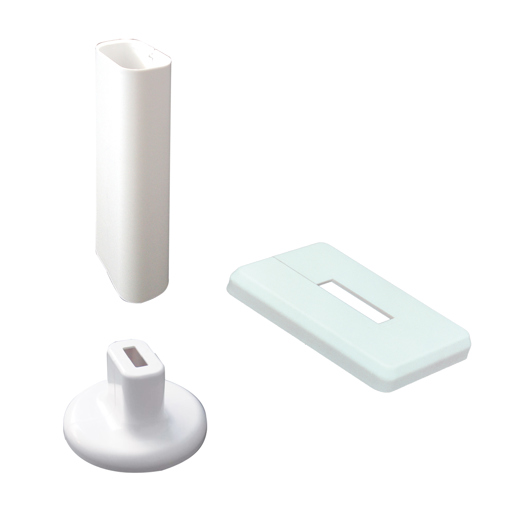

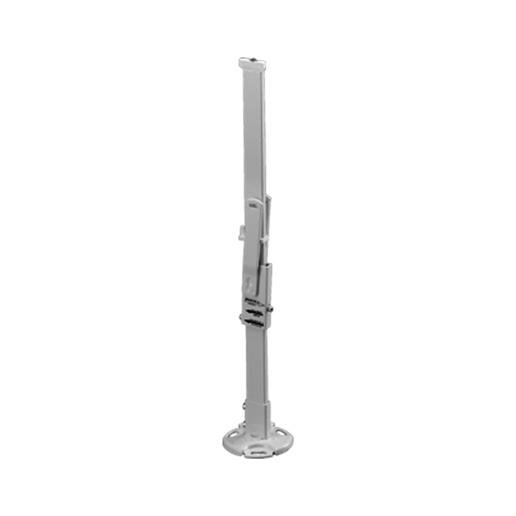

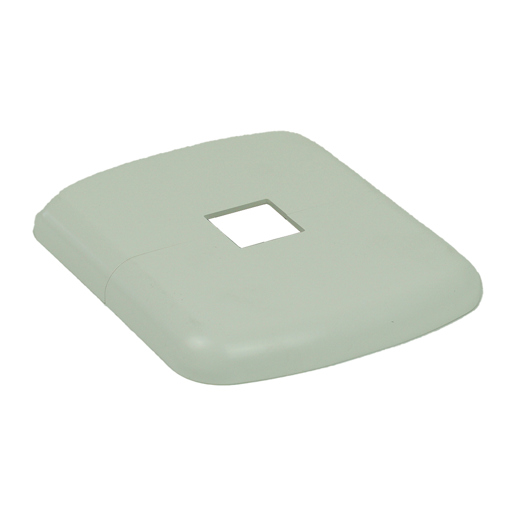

Accessories
