Plint RD is a traditional panel radiator with flat, profiled front and rear panel for closed hydronic heating systems. With a space-saving height of 200 mm, Plint RD is perfect for installation in front of large windows in modern environments. Its integrated valve fitting enables attractive and easy installation. White RAL 9016 finish.
|Max operating temperature||110|
|Connection dimension||6 x G 1/2|
|Material||Cold rolled steel|
|Standard colour||White RAL 9016|
|Types||21; 22; 33; 44|
|Widths [mm]||600; 700; 800; 900; 1000; 1100; 1200; 1400; 1600; 1800; 2000; 2300; 2600; 3000|
Side connection ETIM 32. Side connection requires the use of an external radiator valve. In the case of side connection, the bottom connections are plugged.
Side connection ETIM 67. Side connection requires the use of an external radiator coupling or valve. In the case of side connection, the bottom connections are plugged.
Diagonal connection ETIM 37. Diagonal connection requires the use of an external valve. In the case of a diagonal connection, the bottom connections are plugged.
Diagonal connection ETIM 62. Diagonal connection requires the use of an external valve. In the case of a diagonal connection, the bottom connections are plugged.

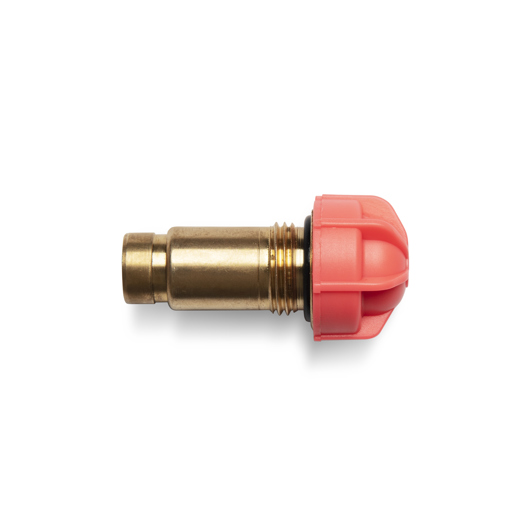

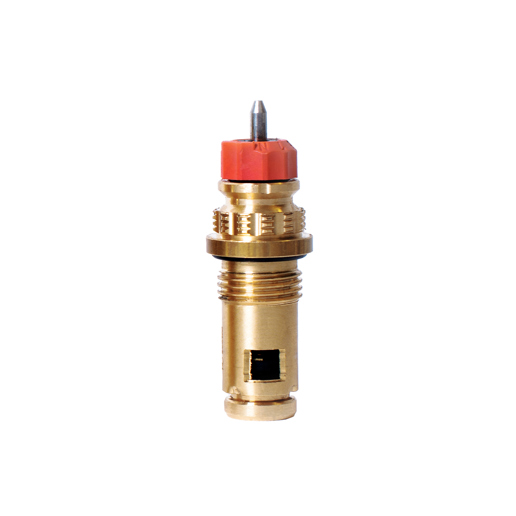

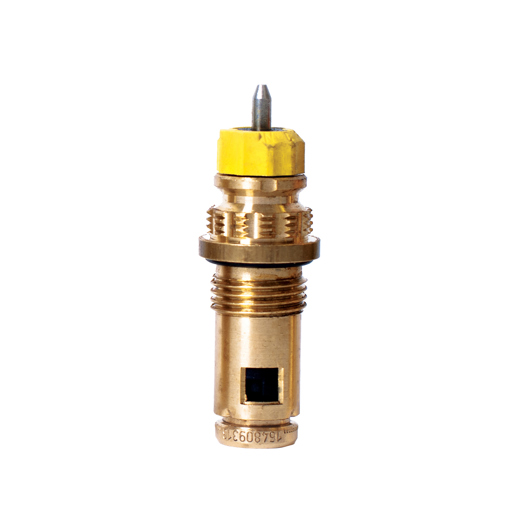

ETIM 88 LR Bottom connection. Bottom connection via integrated valve requires the use of a valve insert. Unused connections are plugged.
ETIM 37 Serial Horizontal connection
ETIM 62 Serial Horizontal connection
ETIM 11 Bottom connection, in-right-out-left. Bottom connection via integrated leash requires the use of a valve insert. Unused connections are plugged.

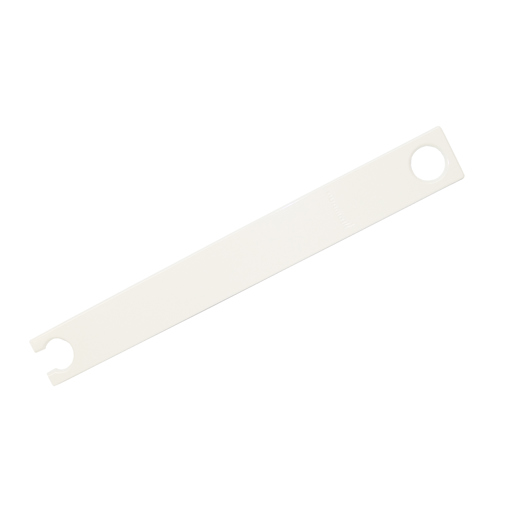

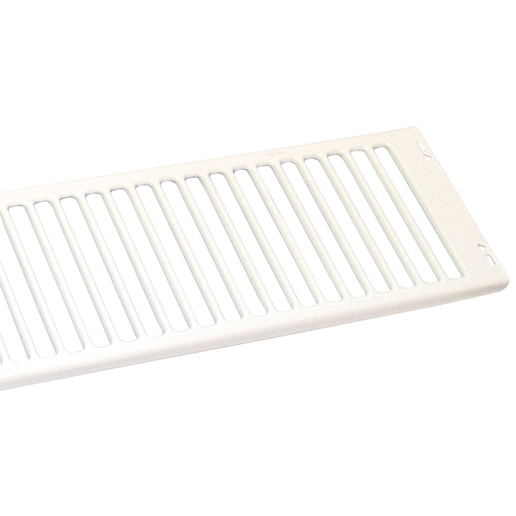

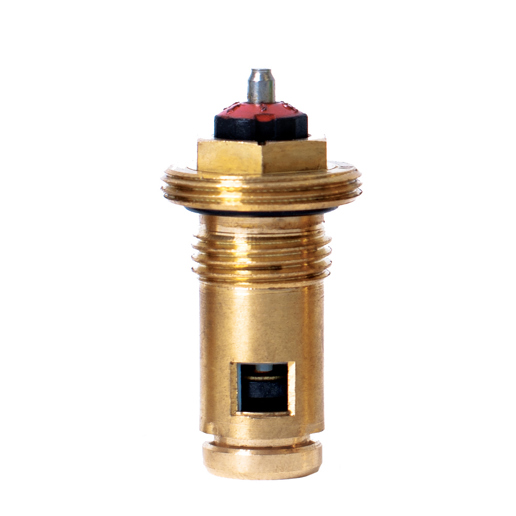

Integrate coupler, M30 valve insert, mounted side panels and top grate, bleed screw and plugs. Note - Brackets are not included in the price.
Purmo radiators are warranted for a period of 10 years* from date of purchase against all manufacturing defects when they are used in normal conditions and for a heating system with hot water. The warranty does not apply to defects caused by installation or handling errors, misuse or factors external to the radiators, such as water quality or oxygen-permeable pipes.
Underfloor heating products and piping systems elements are warranted for a period of 10 years**.
* 6 years for galvanized radiators and 2 years for all electronic and electric components and spare parts sold separately (side covers, top grilles, plastic clips, plugs, air vents, fixing parts)
** 30 years for PexPenta pipes
|Heat output xls-file for Plint models||Heat Output|

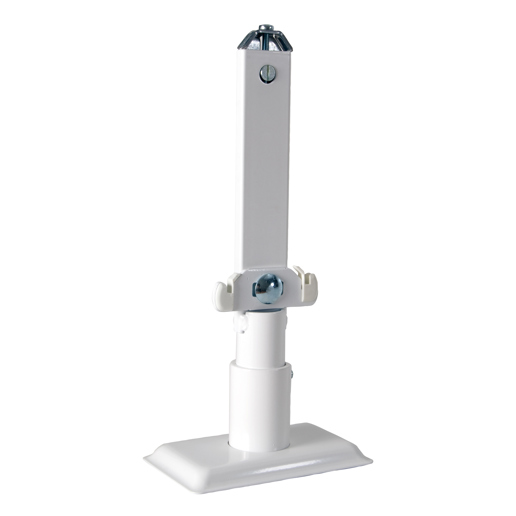

|Fitting instructions wall brackets and floor brackets for Plint radiators||Installation manual|
