Heliuz Strip

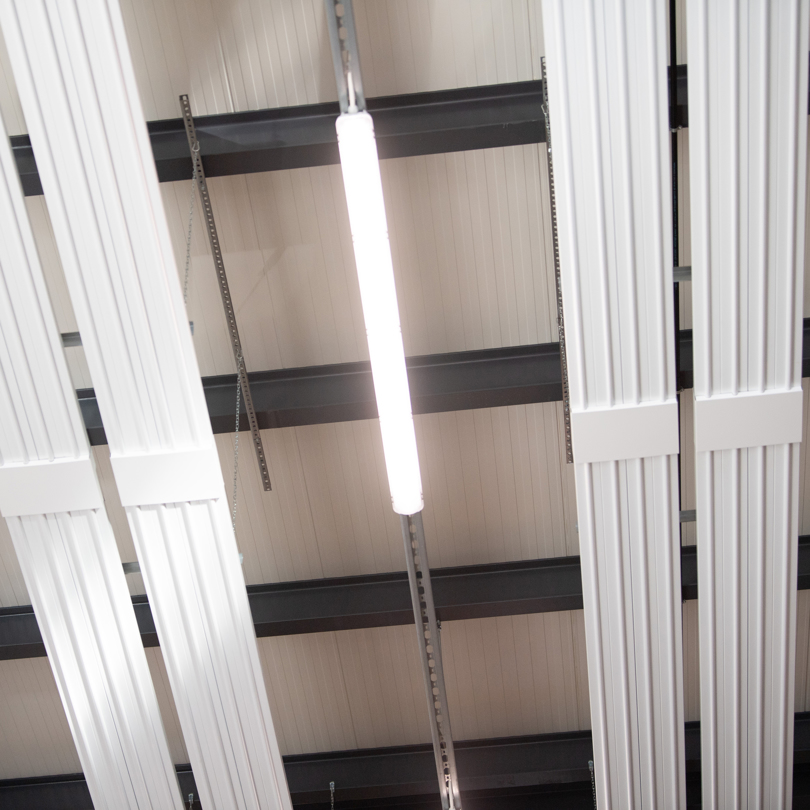

The hydronic Heliuz strip radiant ceiling system is an economical heating and cooling solution for industrial halls, warehouses, sport halls and similar projects, where investment and operating costs play an important role.

The radiant heat emitted by the Heliuz strip ceiling panels reaches by walls, floors and all objects. The heat bounces from all surfaces, so areas that are in the shade is receiving heat due to radiation bounces of all areas. A pleasant feeling is created on the skin, even if the actual air temperature is lower. This can result in high energy savings compared to conventional fan heaters or "radiator" systems.

The modular design is the ideal solution for any installation situation. By connecting the ceiling tiles with crimp connections, it is possible to assemble tiles over strip lengths of 70 metres

Heliuz strip panels are made from 100% recyclable materials.

Properties
Max operating temperature 90
Pressure rating PN16
Material Several materials
Standard colour White RAL 9016

Radiation heating ceilingand radiant heating panels

Radiation heating ceiling Heliuz Strip
Make: Purmo type Heliuz Strip, roof heating panel, Strip surface is a galvanised sheet metal and industrially lacquered in white RAL 9016. Supplied in standard width 320 mm and is available in lengths of 3,4,5 & 6 metres. Distribution takes place through 15 mm electrogalvanized thin-walled steel tubing with smooth ends. The panel is connected with the required 15 mm jointing method/connection. Supplied on special pallets/packaging, for extra protection.
(Connection options)
2A2-1B4
1A4-1A4
2A4-2A4
2A2-2A2, 2A2-1B4
3A4-3A4-z
3A4-3A4-x
4A2-2B4
4A4-4A4
6A2-3B4

Cooling panels and ceiling

Cooling panel Heliuz Strip
Make: Purmo type Heliuz Strip, cooling panel, the surface of Strip is a galvanised sheet metal and industrially lacquered in white RAL 9016. Supplied in standard width 320 mm and is available in lengths of 3,4,5 & 6 metres. Distribution takes place through 15 mm electrogalvanized thin-walled steel tubing with smooth ends. The panel is connected with the required 15 mm jointing method/connection. Supplied on special pallets/packaging, for extra protection.
(Connection options)
2A2-1B4
1A4-1A4
2A4-2A4
2A2-2A2, 2A2-1B4
3A4-3A4-z
3A4-3A4-x
4A2-2B4
4A4-4A4
6A2-3B4
