Balancing Valves Dynamic

Balancing Valves Dynamic

Dynamic balancing valves to optimize systems and create zones with different pressure and protect the zone from overflow and increased energy usage. Most often used in risers and upgrade static system to dynamic zones. Set valves and measure with balancing tools, pressure flow and pump optimization as standard features.

Find your product

Valve kit PVM

The differential pressure valves PVM is used to distribute the flow within different areas in heating and cooling systems. The differential pressure valves PVM consists of a differential pressure valve (PV) and a balancing valve (STV). PVM maintains the differential pressure across a circuit, such as a stem, which supplies radiators or to secure differential pressure over a control valve so that good authority is achieved for modulating regulation. The differential pressure held constant, can be adjusted to achieve the prescribed flow. At increased available pressure, the differential pressure valve closes and at reduced pressure, the differential pressure valve opens. The PVM package also includes a shut-off valve so that the circuitry return and return pipes can be closed.

Adapter Capillary tube

Capillary tuber adapter 1/2 "and 3/4" adapter to mount Capillary tubes in.

Connection Optima P

Optima P Compact/ TOV union Connections for Optima P compact and TOV valves. Outside threaded connections that fit the valves.

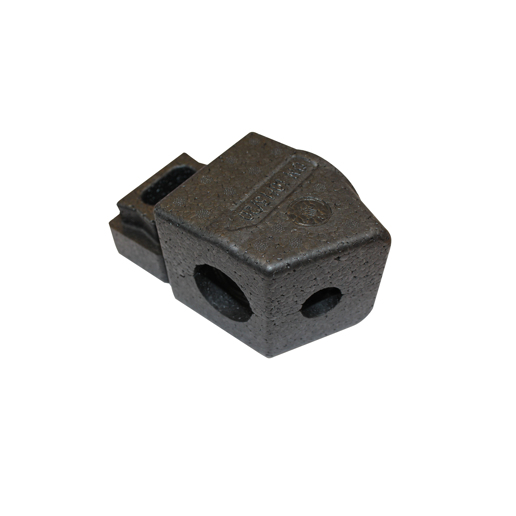

Insulation PV valve

Insulation for PV valves. For heating application. Insulation is not diffusion tight.

Optima P Compact

Optima P Compact valve is used in hydronic systems with a combination of functions. Max flow and differential pressure regulator. When max limits the flow, and in min flow applications where circuits close behind the valve, the differential pressure regulator is used instead of the maxflow function.

Valve flanged PV

The PV Compact differential pressure valve is used in secondary heating and cooling systems. PV Compact maintains differential pressure across a circuit such as a stem supplying radiators or to secure differential pressure across a control valve so that good authority is obtained for modulating regulation. The differential pressure that is maintained can be adjusted to achieve the prescribed flow. At increased available pressure, the differential pressure valve closes and vice versa at reduced pressure, the differential pressure valve opens. PV Compact is conveniently combined with the STV valve.

Capillay tube PVM

Capillary tube for PVM valve kit and Optima P Compact. 1m
