Flex
Horizontal radiators

Flex

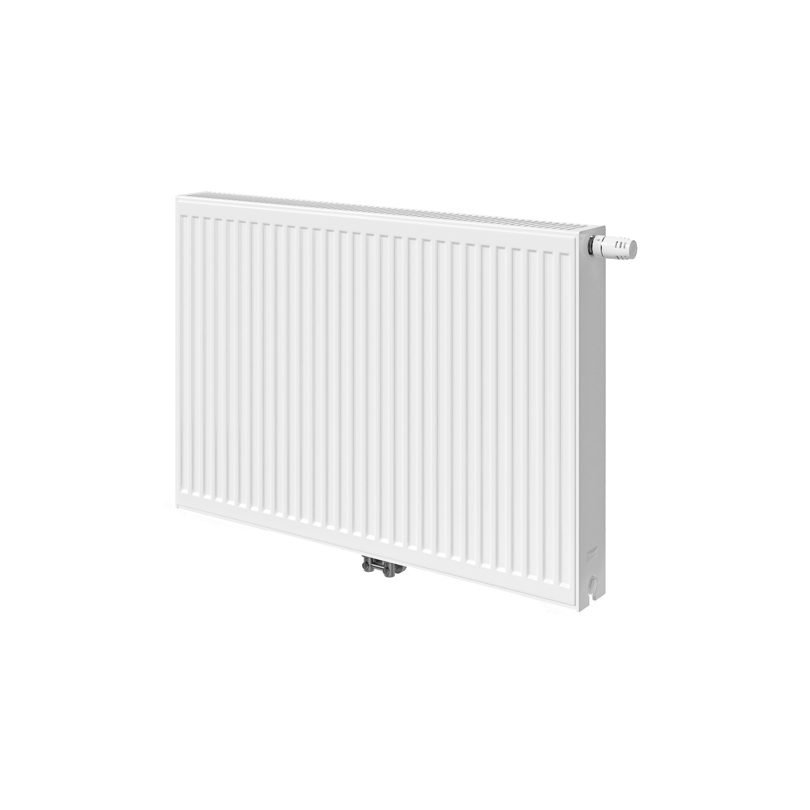

Flex - is a versatile profiled panel radiator with
bottom middle connection, manufactured in accordance
to the highest quality standards. Thanks to the modern
construction makes it possible to choose the side of mounting of the thermostatic valve insert.
Flex allows you to choose the side of mounting the thermostatic head on the right or on the left side of the radiator. The central
connection provides maximum flexibility both in
planning and installation in terms of the preferred dimension of the radiator.

Properties
Max operating temperature 110
Standard EN442; EN10130
Connection dimension 6 x G 1/2
Pressure rating PN10
Material Cold rolled steel
Standard colour White RAL 9016
Connections (ETIM) MO
Types 11; 21; 22; 33
Heights [mm] 300; 400; 500; 600; 900
Widths [mm] 400; 500; 600; 700; 800; 900; 1000; 1100; 1200; 1400; 1600; 1800; 2000; 2300; 2600; 3000

ETIM MO Horizontal connection

ETIM MO Horizontal connection

Purmo radiators are warranted for a period of 10 years* from date of purchase against all manufacturing defects when they are used in normal conditions and for a heating system with hot water. The warranty does not apply to defects caused by installation or handling errors, misuse or factors external to the radiators, such as water quality or oxygen-permeable pipes.
Underfloor heating products and piping systems elements are warranted for a period of 10 years**.
* 6 years for galvanized radiators and 2 years for all electronic and electric components and spare parts sold separately (side covers, top grilles, plastic clips, plugs, air vents, fixing parts)
** 30 years for PexPenta pipes

10 year warranty

CE certificate

CE-mark
Files
DocumentCategory
Technical data sheet Technical data sheet
