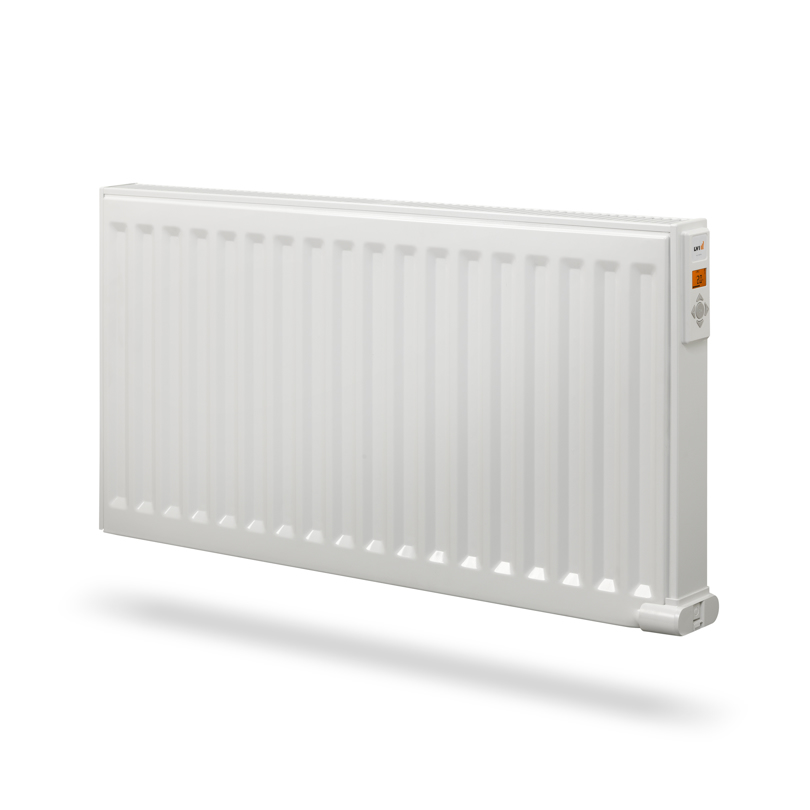

Yali Digital is a modern oil-filled electric radiator with a whole host of new functions. Yali Digital offers outstanding temperature control with an easy-to-read display that is discretely lodged in the side panel. Yali Digital can be used in combination with the Touch E3 touchscreen and can be operated remotely via WiFi from a smart phone or tablet.. Connection to cable-bound or wireless systems is possible. The radiator has a practical open window function so that Yali Digital is programmed to switch to anti-freeze protection mode if the temperature drops abnormally low. When the window is closed and the temperature rises again, Yali Digital switches back to the previous mode. The radiator is equipped with sequential control, an intelligent function that makes the rear panel begin to operate when the temperature is 1 degree below the adjusted value.
|Material||Cold rolled steel|
|Standard colour||White RAL 9016|
|Heights [mm]||300; 500|
|Widths [mm]||400; 500; 550; 650; 800; 950; 1000; 1050; 1100; 1250; 1300; 1500; 1600; 2000|
|Thermostat||Advanced digital thermostat with precise control. The surface temperature can be lowered to 75˚C or 60˚C. Temperature levels 75˚C and 60˚C lower the output of the radiator to 70% and 55% for a single radiator and 90% and 80% for a double radiator. Adaptive start with timer function. Weekly programme individually adjusted in each radiator. However, WeI recommend a central external clock or Touch E3 when a weekly programme is needed. Sequential temperature control of front and rear panel. Open window function. Lockable thermostat unit. Thermostat housing manufactured from self-extinguishing and UV-resistant plastic ABS-PC V0. Temperature reduction is activated manually or via a central fitting and separate N-line. A 'plug-in contact' is installed on the radiator for interconnection of radiator and accompanying wall outlet. Compatible with master/slave coupling (unlimited number, only applies to Yali C/D/P/R)|
Monclac wall brackets and screws for fixed installation are included.
Purmo radiators are warranted for a period of 10 years* from date of purchase against all manufacturing defects when they are used in normal conditions and for a heating system with hot water. The warranty does not apply to defects caused by installation or handling errors, misuse or factors external to the radiators, such as water quality or oxygen-permeable pipes.
Underfloor heating products and piping systems elemnts are warranted for a period of 10 years**.
* 6 years for galvanized radiators and 2 years for all electronic and electric components and spare parts sold separately (side covers, top grilles, plastic clips, plugs, air vents, fixing parts)
** 30 years for PexPenta pipes
|CE Declaration Yali Digital 230V Class 1 with 5-pole plug, 2017||Declaration of Conformity|
|CE Declaration Yali Digital 230V Class 1 with Schuko plug, 2017.||Declaration of Conformity|
|CE Declaration Yali Digital 230V Class 1.||Declaration of Conformity|
|CE Declaration Yali Digital 400V Class 1, 2017.||Declaration of Conformity|
|RoHS document for electrical radiators Yali D/P/R/C and Kaba made in Rettig UK Ltd, 2017.||RoHS|
|Installation and operating manual for Yali Digital, Parada and Ramo||Installation manual|
Tempco Touch E3 touchscreen
Touch E3 zone control for radiators and underfloor heating. Central unit equipped with a touch screen to control multiple and different zones.
Splash guard KDN IP44
Splash guard for upgrade to IP 44 for installation acc. to LVI's installation instructions.
Connection cable kit
Connection cable for plug connection of 230V radiators Yali Digital, Parada, Ramo and Comfort.
