Balancing valve STV flanged

Balancing Valves Static

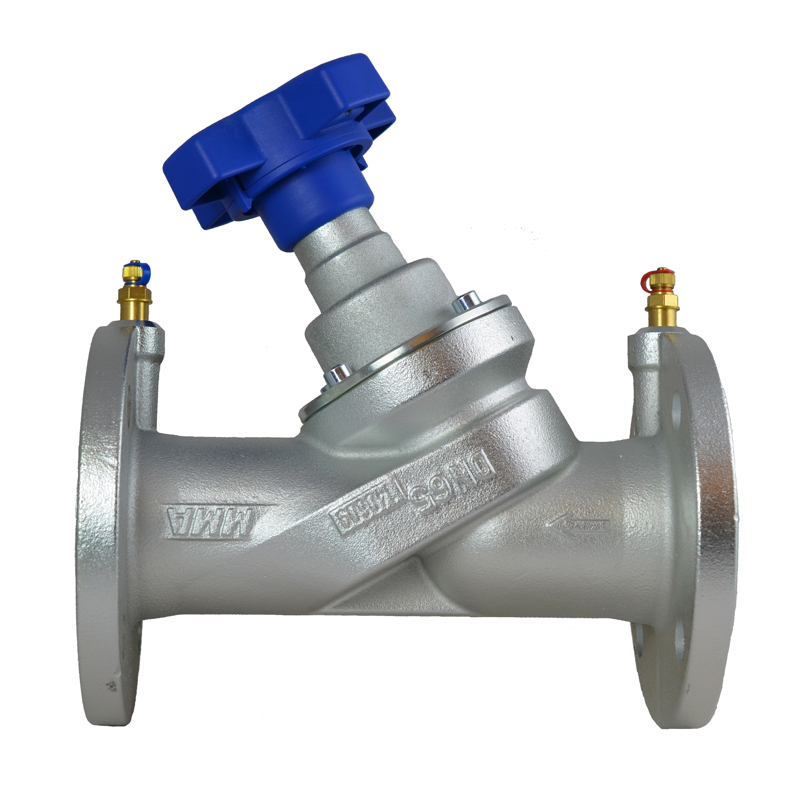

Balancing valve STV flanged
The manual balancing valve STV(E) is optimized for use in heating- and cooling systems.
Description
STV(E) are sized with nomogram, handwheel or online Applications on smartphones or on our webside.
STV(E) shall be dimensioned at 50-80% of maximum flow for the design flow.
Minumum recommended differential pressure is 2 kPa (0,29 psi)
Properties | |
Max operating temperature | 110 |
Pressure rating | PN16 |
Material | Steel |
Document | Category |
---|---|
Datasheet STV DN65-DN400 | Technical data sheet |
Installation manual STV 65-150 | Installation manual |
Installation and use instructions DN200-DN400 | Installation manual |
