Trench Fan Convectors

Aquilo F2V

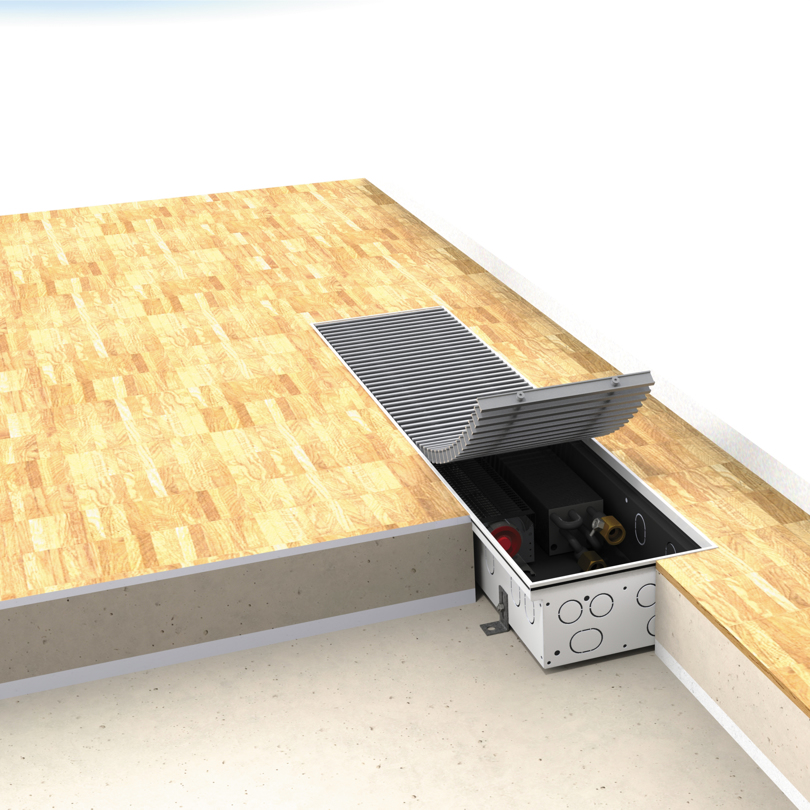

Aquilo F2V trench convectors are specially designed for the in-floor installation, and can be used for either heating or cooling. The heating or cooling element is a copper-aluminum heat exchanger, painted black and mounted inside a duct made of unpainted stainless steel.
Aquilo F2V convectors are additionally equipped with noiseless centrifugal fans mounted inside the duct. The number of fans is determined by the length of the convector and the required heat output. The fans are driven by ~230V motors. On the top the convector is protected by a range of decorative grilles made of a choice of different materials. The grille is ordered separately. Grille material: wood (oak, beech), stainless steel or duralumin in a choice of colours : natural, light brown, dark brown or black.
Note: only Duralumin grilles can be used in case of cooling mode selection
The heat exchanger is connected to the heating or cooling system by two G ½” internal thread pipes. Surface-mounted thermostat to control fan speed required to complete the installation and to be ordered separately.
Warranty: 10 years and 2 years for electric and electronics parts

Properties
Max operating temperature 110
Connection dimension 2 x G 1/2
Pressure rating PN10
Material Stainless steel
Standard colour Natural
Aquilo F2V
Trench Fan Convectors

Aquilo F2V

Aquilo F2V trench convectors are specially designed for the in-floor installation, and can be used for either heating or cooling. The heating or cooling element is a copper-aluminum heat exchanger, painted black and mounted inside a duct made of unpainted stainless steel.
Aquilo F2V convectors are additionally equipped with noiseless centrifugal fans mounted inside the duct. The number of fans is determined by the length of the convector and the required heat output. The fans are driven by ~230V motors. On the top the convector is protected by a range of decorative grilles made of a choice of different materials. The grille is ordered separately. The heat exchanger is connected to the heating or cooling system by two G ½” internal thread pipes. Electrical accessories required to complete the installation and to be ordered separately include a transformer, as well as a surface-mounted thermostat to control fan speed.
Technical specification:
Height: 170 mm (width 340 mm);
Length: 850, 1200, 1600, 2100, 2400, 2700 mm;
Heat exchanger: aluminum finned copper;
Duct design: standard version: unpainted stainless steel;
Note: for swimming pool applications special versions are necessary;
Detailed specifications are available on request.
Grille material: wood (oak, beech), stainless steel or duralumin in a choice of colours : natural, light brown, dark brown or black;
Note: only Duralumin grilles can be used in case of cooling mode selection;
Connections: 2 x G ½" – internal thread;
Operating pressure: 10 bar;
Max. temperature: 110 °C;
Test pressure : 13 bar;


Heat exchanger accessories :
manual air vent, 10 cm long stainless steel flexible connector kit with a G ½” thread.
Duct accessories :
leveling bolts M8x30 mm with internal hexagon (for duct length up to 2.5 m – 4 pcs., over 2.5 m – 6 pcs.), 4 surface mounting elements with duct fixing screws, breakable pass for the heating or cooling system pipes + 2 rubber passes for domestic electric circuit connection, covers for masking heat exchanger connections, protecting the heat exchanger and duct against damage or scuffing during installation, as well as protecting the duct against distortion during floor laying duct drainage.
Standard electrical accessories :
1 module with centrifugal fans driven with ~230V motors (the number of the fans in a single module depends on the convector’s length). Every single module incorporates one motor.
Surface-mounted thermostat to control fan speed required to complete the installation and to be ordered separately.

Warranty: 10 years and 2 years for electric and electronics parts

Properties
Max operating temperature 110
Connection dimension 2 x G 1/2
Pressure rating PN10
Material Stainless steel
Standard colour Natural

Purmo radiators are warranted for a period of 10 years* from date of purchase against all manufacturing defects when they are used in normal conditions and for a heating system with hot water. The warranty does not apply to defects caused by installation or handling errors, misuse or factors external to the radiators, such as water quality or oxygen-permeable pipes.
Underfloor heating products and piping systems elemnts are warranted for a period of 10 years**.
* 6 years for galvanized radiators and 2 years for all electronic and electric components and spare parts sold separately (side covers, top grilles, plastic clips, plugs, air vents, fixing parts)
** 30 years for PexPenta pipes
