Delta
Delta
Column Radiators

Delta

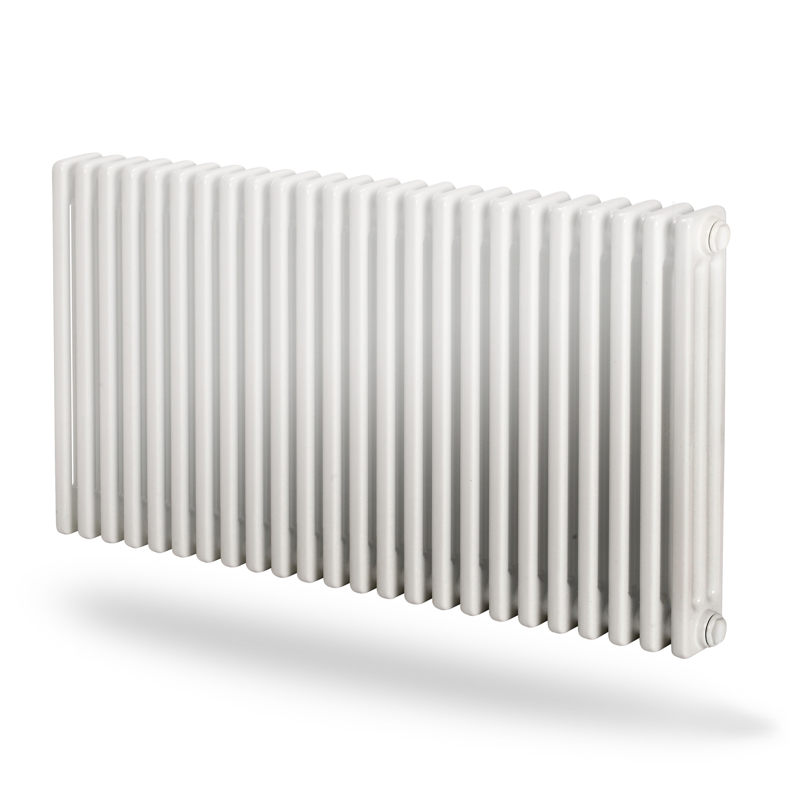

Delta is an elegant section radiator that combines modern architecture with traditional heating technology. Laser welding practically eliminates all weld joints and provides a guaranteed flat surface. On the interior of the radiator, the laser welding prevents the excess welding material from accumulating and reduces the risk for friction and corrosion. The result is a quieter, more effective radiator that lasts longer. The D-shaped profiles for which the Delta is named are not only appealing, they also improve performance by up to 10 % compared to the conventional design. The most important thing of all is that the Delta assortment makes it possible for you to get the exact radiator you want exactly where you want to have it. Long, short, vertical or horizontal - and in the colour you want. It is suitable for renovation objects and new projects alike. In addition to its availability in 28 different heights, you can choose between 2, 3, 4, 5 or 6 sections, from 300 to 3000 mm in height and lengths from 200 to 2500.

Properties
Max operating temperature 110
Standard EN442
Connection dimension 4 x G 1/2
Pressure rating PN10
Material Steel profile
Standard colour White RAL 9016
Delta
Column Radiators

Delta

The Delta assortment makes it possible for you to get the exact radiator you want exactly where you want to have it. Long, short, vertical or horizontal - and in the colour you want. The Delta radiators are built from sections that are welded together with laser technology. The heights vary between 155 and 3000 mm. If necessary, any exact height between 300 and 3000 mm can be ordered. Lengths between 200 and 2500 mm are available. Longer radiators than those can be supplied in sections that are later assembled at the installation location. The radiator depth, i.e. the number of pipe channels, varies between 2 and 6.

Properties
Max operating temperature 110
Standard EN442
Connection dimension 4 x G 1/2
Pressure rating PN10
Material Steel profile
Standard colour White RAL 9016

Side connection ETIM 32. Side connection requires the use of an external radiator valve. In the case of side connection, the bottom connections are plugged.

ETIM 32 Horizontal connection

Side connection ETIM 67. Side connection requires the use of an external radiator coupling or valve. In the case of side connection, the bottom connections are plugged.

ETIM 67 Horizontal connection

Diagonal connection ETIM 37. Diagonal connection requires the use of an external valve. In the case of a diagonal connection, the bottom connections are plugged.

ETIM 37 Horizontal connection

Diagonal connection ETIM 62. Diagonal connection requires the use of an external valve. In the case of a diagonal connection, the bottom connections are plugged.

Hor-connection-ETIM-62-1219.svg

ETIM 11 Bottom connection, in-left-out-right.

ETIM 11 LR Horizontal connection

ETIM 88 RL Horizontal connection

ETIM 88 RL Horizontal connection

ETIM 27 Horizontal connection

ETIM 27 Horizontal connection

ETIM 72 Horizontal connection

ETIM 72 Horizontal connection

ETIM 18 Vertical connection

ETIM 18 Vertical connection

ETIM 81 Vertical connection

ETIM 81 Vertical connection

ETIM MO Vertical mid-connection

ETIM MO Vertical connection

ETIM OM Vertical mid-connection

ETIM OM Vertical connection

Purmo radiators are warranted for a period of 10 years* from date of purchase against all manufacturing defects when they are used in normal conditions and for a heating system with hot water. The warranty does not apply to defects caused by installation or handling errors, misuse or factors external to the radiators, such as water quality or oxygen-permeable pipes.
Underfloor heating products and piping systems elemnts are warranted for a period of 10 years**.
* 6 years for galvanized radiators and 2 years for all electronic and electric components and spare parts sold separately (side covers, top grilles, plastic clips, plugs, air vents, fixing parts)
** 30 years for PexPenta pipes

10 year warranty

CE certificate

CE-mark
Files
DocumentCategory
Heat output calculation in xls for Delta, Delta Twin, Delta Bench and Bar Heat Output
Delta V, front view Product Dimensions Drawing
Column radiator Delta H, DLH. Product Image
Column radiator Delta H, DLH, at Freunde von Freunden Friends Space. Product Image Interior
Column radiator Delta H, DLH, at Freunde von Freunden Friends Space. Product Image Interior
Column radiator Delta H, DLH, at Freunde von Freunden Friends Space. Product Image Interior
Column radiator Delta H, DLH, at Freunde von Freunden Friends Space. Product Image Interior
Column radiator Delta H, DLH, at Freunde von Freunden Friends Space. Product Image Interior
Column radiator Delta H, DLH, 200 mm, Pastel Turqouise RAL 6034. Product Image Interior
Column radiator Delta H, DLH, at Freunde von Freunden Friends Space. Product Image Interior
Column radiator Delta H, DLH, at Freunde von Freunden Friends Space. Product Image Interior
Column radiator Delta H, DLH, at Freunde von Freunden Friends Space. Product Image Interior
Column radiator Delta H, DLH, at Freunde von Freunden Friends Space. Product Image Interior
Column radiator Delta H, DLH, at Freunde von Freunden Friends Space. Product Image Interior
Column radiator Delta H, DLH, detail image. Product Image Detail
Grey column radiators Delta H, DLH, in office, floor brackets. Product Image Interior
Column radiator Delta H, DLH, in dining room. Product Image Interior
Grey column radiator Delta H, DLH, under window. Product Image Interior
Grey column radiator Delta H, DLH. Product Image Interior
Column radiator Delta H, DLH, in dining room. Product Image Interior
Column radiator Delta H, DLH, in Creme White S0156. Product Image Interior
Column radiator Delta H, DLH, with towel rack in bathroom. Product Image Interior
Azure Blue column radiator Delta H,DLH, in hallway. Product Image Interior
Column radiator Delta H, DLH, in Light Pink RAL 3015. Product Image Interior
Rounded, grey column radiator Delta H, DLH, aquarelle. Product Image Interior
Purmo radiators are warranted for a period of 10 years* from date of purchase against all manufacturing defects when they are used in normal conditions and for a heating system with hot water. The warranty does not apply to defects caused by installation or handling errors, misuse or factors external to the radiators, such as water quality or oxygen-permeable pipes. Underfloor heating products and piping systems elemnts are warranted for a period of 10 years**. * 6 years for galvanized radiators and 2 years for all electronic and electric components and spare parts sold separately (side covers, top grilles, plastic clips, plugs, air vents, fixing parts) ** 30 years for PexPenta pipes 10 years, 2 years on Electrical parts
Installation
Drawing Delta H FV

Delta H, front view

Drawing Delta V FV

Delta V, front view

Drawing Delta H 2columns SV

Delta H 2 columns, side view

Drawing Delta H 3columns SV

Delta H 3 columns, side view

Drawing Delta H 4columns SV

Delta H 4 columns, side view

Drawing Delta H 6columns SV

Delta H 6 columns, side view

Drawing Delta H 5columns SV

Delta H 5 columns, side view

Drawing Delta H 4columns TV

Delta H 4 columns, top view

Drawing Delta H 2columns TV

Delta H 2 columns, top view

Drawing Delta H 3columns TV

Delta H 3 columns, top view

Drawing Delta H 5columns TV

Delta H 5 columns, top view

Drawing Delta H 6columns TV

Delta H 6 columns, top view
