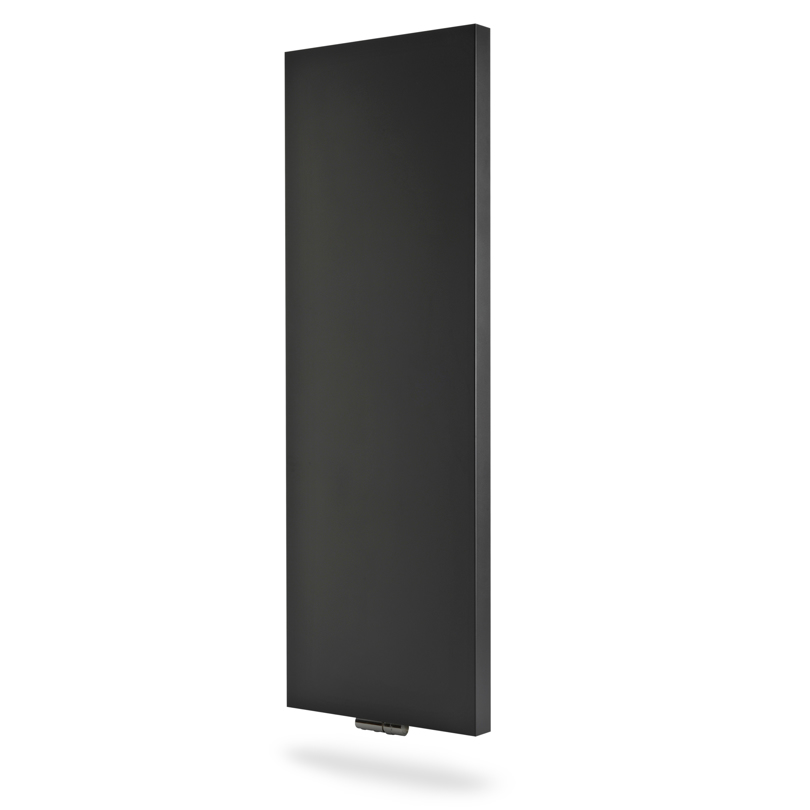

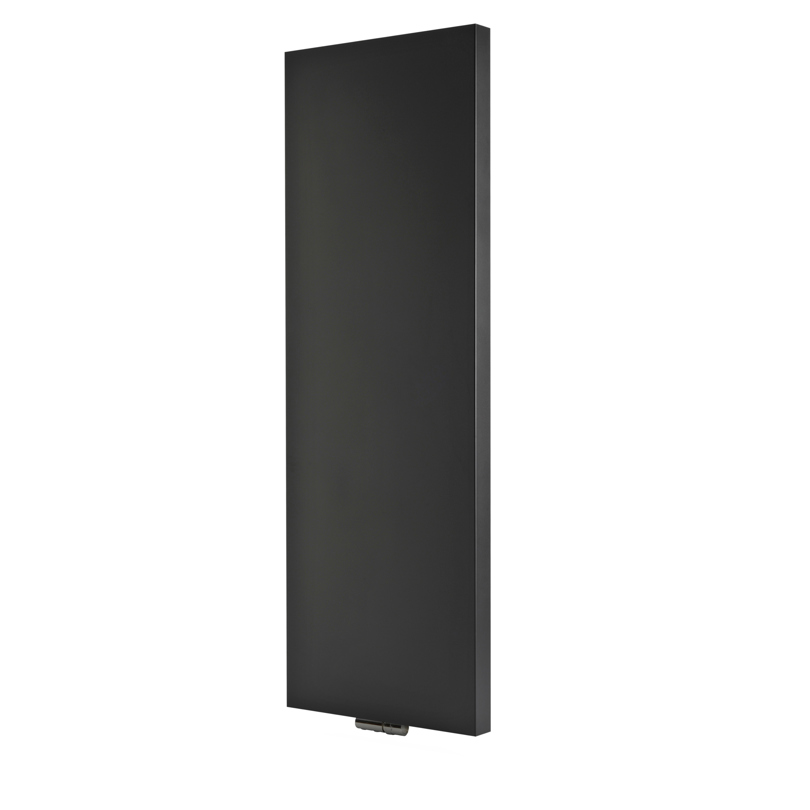

Tinos V
Tinos V
Vertical designer radiators

Tinos V

The vertical design radiator Tinos creates a striking aura of aesthetic appeal with its straight lines. Tinos is an elegant addition to all interiors, traditional or modern.

The minimalistic design of Tinos stands out in every room, whether the living room, bedroom, kitchen or bathroom. As a result, you can enjoy the unique design and the pleasant heat from these beautiful radiators anywhere in the home. White RAL 9016. 70 special colours optionally available

Properties
Max operating temperature 110
Standard EN442; EN10130
Connection dimension 6 x G 1/2
Pressure rating PN6
Material Cold rolled steel
Standard colour White RAL 9016
Tinos V
Vertical designer radiators

Tinos V

Tinos' bold design language and elegant front panel that extends a mere 10 mm from the way lend it a striking aesthetic expression. Tinos is available in a wide range of different colours, including 12 exclusive metallic, anodised or satin finishes.

The minimalistic design of Tinos stands out in every room, whether the living room, bedroom, kitchen or bathroom. A towel hanger in stainless brushed steel is available as an accessory. Complete with brackets, side panels, installation clips, installation model, bleed screw, 3 dummy plugs and screws and plastic plugs. White RAL 9016. 70 special colours optionally available

Properties
Max operating temperature 110
Standard EN442; EN10130
Connection dimension 6 x G 1/2
Pressure rating PN6
Material Cold rolled steel
Standard colour White RAL 9016

Mid connection ETIM MO

ETIM MO Vertical connection

Connection drawing

ETIM 18 Vertical connection

Brackets, 3 dummy plugs and bleed screw.

Purmo radiators are warranted for a period of 10 years* from date of purchase against all manufacturing defects when they are used in normal conditions and for a heating system with hot water. The warranty does not apply to defects caused by installation or handling errors, misuse or factors external to the radiators, such as water quality or oxygen-permeable pipes.
Underfloor heating products and piping systems elemnts are warranted for a period of 10 years**.
* 6 years for galvanized radiators and 2 years for all electronic and electric components and spare parts sold separately (side covers, top grilles, plastic clips, plugs, air vents, fixing parts)
** 30 years for PexPenta pipes

10 year warranty icon

CE certificate

CE-mark
Files
Installation
Drawing TIV FV

Tinos V, front view

Drawing TIV BV

Tinos V, back view

Drawing TIV BV MCW-V

Tinos V, back view with MCW-V brackets

Drawing TIV PAV T11 SV

Tinos V and Paros V, type 11, side view

Drawing TIV PAV T21 SV

Tinos V and Paros V, type 21, side view

Drawing TIV T11 TV

Tinos V, type 11, top view

Drawing TIV T21 TV

Tinos V, type 21, top view
