Narbonne V M
Vertical designer radiators

Narbonne V M

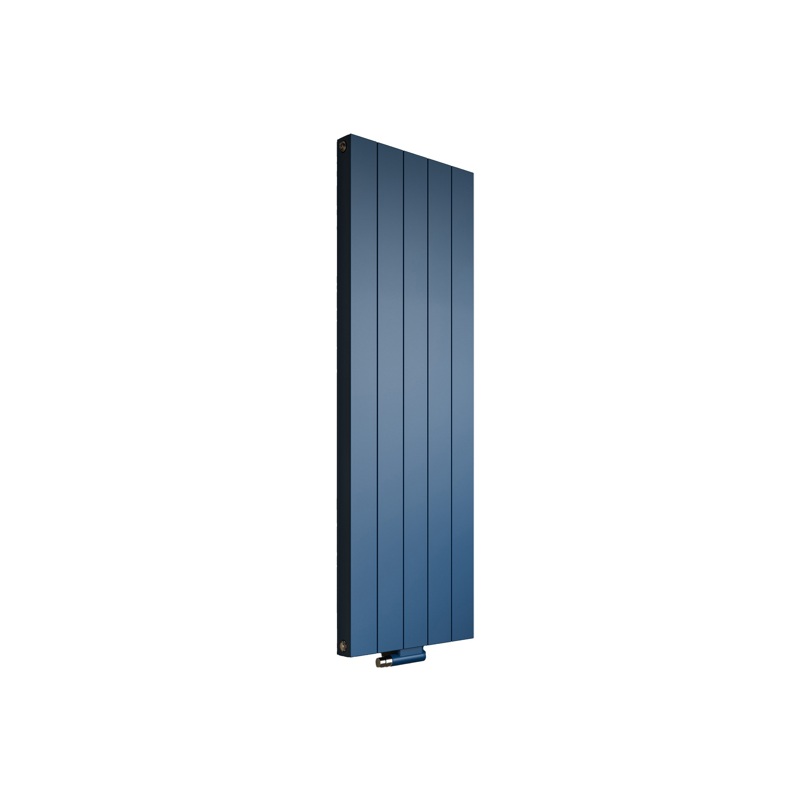

Narbonne VM is composed of several interconnected profiled steel heating elements of a rectangular cross section. Narbonne V M is a vertical decorative radiator with middle connection. Narbonne VM radiator is equipped with two side covers, but no top masking grille. The perfect choice for installation in public spaces. Plug and air vent supplied with the heater. Additional external thermostatic valve block is standard equipment of this model. Standard colour: white RAL 9016, other colours from the RAL colour chart are available on request. The warranty period is 10 years.

Properties
Max operating temperature 110
Standard EN442
Connection dimension 2 x G 3/4 + 4 x G 1/2
Pressure rating PN5
Material Steel profile
Standard colour White RAL 9016
Types 10; 11; 20; 21
Heights [mm] 210; 214; 280; 286; 358; 360; 430; 500; 502; 570; 574; 646; 650; 718; 720; 790; 860; 862
Widths [mm] 1200; 1400; 1600; 1800; 2000; 2200

ETIM MO Vertical mid-connection

ETIM MO Vertical connection

ETIM OM Vertical mid-connection

ETIM OM Vertical connection

Purmo radiators are warranted for a period of 10 years* from date of purchase against all manufacturing defects when they are used in normal conditions and for a heating system with hot water. The warranty does not apply to defects caused by installation or handling errors, misuse or factors external to the radiators, such as water quality or oxygen-permeable pipes.
Underfloor heating products and piping systems elemnts are warranted for a period of 10 years**.
* 6 years for galvanized radiators and 2 years for all electronic and electric components and spare parts sold separately (side covers, top grilles, plastic clips, plugs, air vents, fixing parts)
** 30 years for PexPenta pipes

10 year warranty
Accessories

Bleed screw

Bleed screw for Purmo and Thermopanel radiators.

Repair paint

Repair paint in RAL 9016

Bleed screw and dummy plug set

Bleed screw and pre-chromed plug in dim G15 with O-ring

Air screw

Air screw for bleeding of radiators.

Plug G 1/2

Pre-chromed plug in dim G15 with O-ring.

Wall bracket WA

Wall brackets for Narbonne convectors

Evosense

Evosense is a self-actuated adjustable thermostat to provide the best possible regulation of room temperatures. The set value is shown in a window on the thermostat, with a standard range of 0-28°C, but can be delivered from the factory with a higher or lower threshold.

Actuator 24V NC

TempCo 24 V actuator for Purmo underfloor heating with single-zone receiver.

Radiator manifold Evoflow

Radiator manifold with low enviromental impact.

Thermostat Evosense Remote

Evosense thermostatic head with remote sensor connected with capillary tube.

Actuator Move 0-10V

The MOVE motorized actuator is designed for regulating MMA's valves with M28x1.5 or M30x1.5 connection and to be used togethter with thermostats enabelling modulating output (0-10V) to ensure precise and accurate control.

Description The MOVE actuator with high actuating power is suitable for valves with M28x1.5 and M30x1.5 connection. The actuator is a motorized actuator that adjusts the valve steplessly. The actuator adjusts itself to the correct stroke for each valve, between 2-8.5 mm.
Room controller with continuous output (0-10V) in individual room control systems.

Evosense ENTL

Evosense ENTL thermostat is used to regulate valves for heating and cooling in radiator systems, cooling systems and towel warmers.
