Optimizer

Pressure Independant Control Valves
Optimizer
OPTIMIZER 6-way controilvalve offers complete pressure-independent balancing and control for 4-pipe heating and cooling systems. OPTIMIZER 6-way provides modulating control, which works independently of all
variations in the differential pressure of the system.

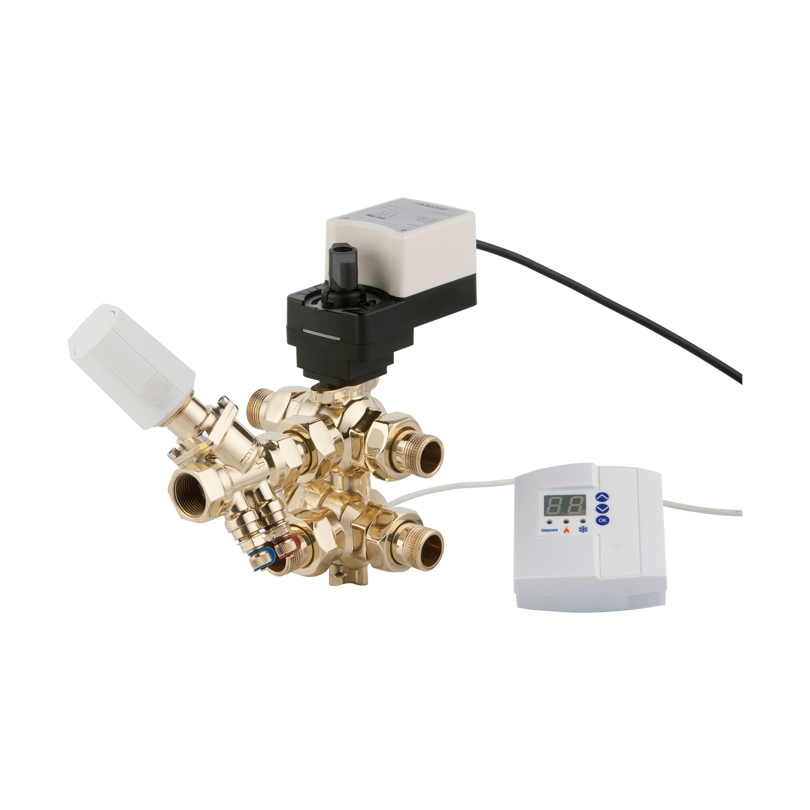

The package consists of an OPTIMA Compact pressure-independent control valve (PICV) with one 0-10V modulating actuator, a 6-way control valve with a rotating actuator and the control unit.
Valve can be used for:
• Heating and cooling in the ceiling
• Convectors
• Decentralized ventilation units
• Fan coils
• Convection heating and cooling units
Properties | |
Max operating temperature | 120 |
Pressure rating | PN25 |
Document | Category |
---|---|
Installation and use instructions Optimizer | Installation manual |
