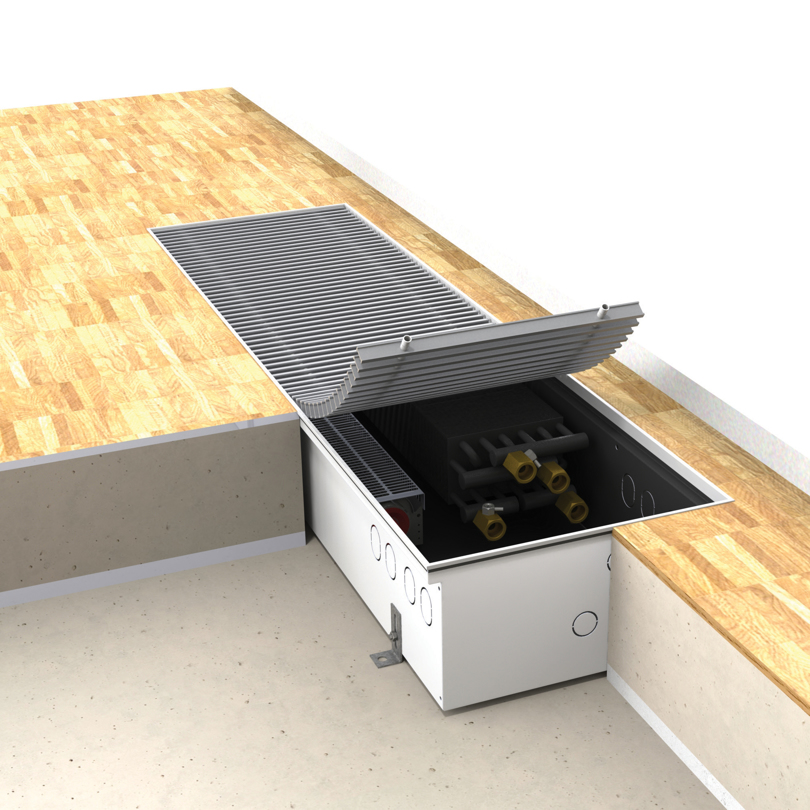

Aquilo F4V trench convectors are especially designed for the in-floor installation, and can be used for either heating and/or cooling. The heating or cooling element is a double-loop copper-aluminum heat exchanger, painted black, mounted inside a duct made of unpainted stainless steel.

Aquilo F4V convectors are additionally equipped with noiseless centrifugal fans mounted inside the duct. The number of fans is determined by the length of the convector and the required heat output. The fans are driven by ~230V motors. On the top the convector is protected by a range of decorative grilles made of a choice of different materials. The grille is ordered separately. Grille material: only duralumin grilles can be used in the following choice of colours: natural, light brown, dark brown or black.
The heat exchanger is connected to the heating and cooling systems by four G ½” internal thread pipes.
Electrical accessories required to complete the installation and to be ordered separately include manual switch, or a room thermostat with a manual or automatic speed switch, to regulate the convector’s heating or cooling efficiency via a three-level setting of the fan’s speed (the remote- controlled thermostat available).
Warranty: 10 years and 2 years for electric and electronics parts

Properties
Max operating temperature 110
Connection dimension 4 x G 1/2
Pressure rating PN10
Material Stainless steel
Standard colour Natural
Aquilo F4V
Trench Fan Convectors

Aquilo F4V

Aquilo F4V trench convectors are especially designed for the in-floor installation, and can be used for either heating and/or cooling. The heating or cooling element is a double-loop copper-aluminum heat exchanger, painted black, mounted inside a duct made of unpainted stainless steel.

Aquilo F4V convectors are additionally equipped with noiseless centrifugal fans mounted inside the duct. The number of fans is determined by the length of the convector and the required heat output. The fans are driven by ~230V motors. On the top the convector is protected by a range of decorative grilles made of a choice of different materials. The grille is ordered separately. The heat exchanger is connected to the heating and cooling systems by four G ½” internal thread pipes. Electrical accessories required to complete the installation and to be ordered separately include a transformer, as well as a surface-mounted thermostat to control fan speed.


Technical specification:
Height: 170 mm (width 340 mm);
Length: 850, 1200, 1600, 2100, 2400, 2700 mm;
Heat exchanger: aluminum finned copper;
Duct design: standard version: unpainted stainless steel.
Note: for swimming pool applications special versions are necessary.
Detailed specifications are available on request.
Grille material: only duralumin grilles can be used in the following choice of colours:
natural, light brown, dark brown or black.
Connections: 2 x G ½" – internal thread;
Operating pressure: 10 bar;
Max. temperature: 110 °C;
Test pressure : 13 bar.

Heat exchanger accessories :
manual air vent, 10 cm long stainless steel flexible connector kit with a G ½” thread
Duct accessories :
leveling bolts M8x30 mm with internal hexagon (for duct length up to 2.5 m – 4 pcs., over 2.5 m – 6 pcs.), 4 surface mounting elements with duct fixing screws, breakable pass for the heating or cooling system pipes + 2 rubber passes for domestic electric circuit connection, covers for masking heat exchanger connections, protecting the heat exchanger and duct against damage or scuffing during installation, as well as protecting the duct against distortion during floor laying duct drainage.
Standard electrical accessories :
1 or 2 modules with centrifugal fans driven with ~230V motors (the number of the fans in a single module depends on the convector’s length). Every single module incorporates one motor.

Obligatory electrical accessories:
Manual switch, or a room thermostat with a manual or automatic speed switch, to regulate the convector’s heating or cooling efficiency via a three-level setting of the fan’s speed (the remote- controlled thermostat available) is required to complete the installation and to be ordered separately.
Warranty: 10 years and 2 years for electric and electronics parts

Properties
Max operating temperature 110
Connection dimension 4 x G 1/2
Pressure rating PN10
Material Stainless steel
Standard colour Natural
