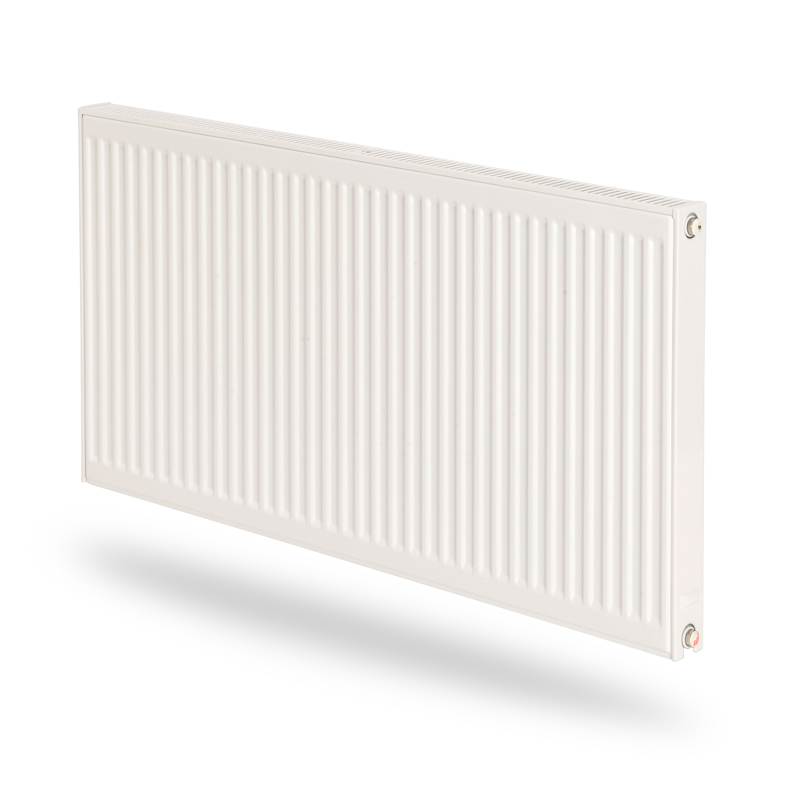

Compact is a traditional panel radiator for closed water-borne heating systems with a neutral design. It is a high-quality radiator with an excellent finish that offers the market's widest assortment.

Compact is designed for optimal heat distribution and is delivered with mounted side panels and top grate with childproof fastening. Standard white RAL 9016 finish.

Properties
Max operating temperature 110
Standard EN442; EN10130
Connection dimension 4 x G 1/2
Pressure rating PN10
Material Cold rolled steel
Standard colour White RAL 9016
Compact
Horizontal Panel Radiators

Compact

Compact is a traditional panel radiator for closed water-borne heating systems with a neutral design. Compact panel radiator has four G 1/2" connections with female thread, when enables side connection on the right-hand and left-hand side.

It is a high-quality radiator with an excellent finish that offers the market's widest assortment. Compact is designed for optimal heat emittance according to the standard EN442-1 and all models are CE-marked. Compact is delivered with mounted side panels and top grate with childproof fastening. Brackets, grates, side panels, dummy plug and bleed screw are included. The operating conditions should be taken into consideration and installation instructions should be followed during installation.

Standard white RAL 9016 finish (other colours are available on request for an additional charge). The warranty period is 10 years.

Properties
Max operating temperature 110
Standard EN442; EN10130
Connection dimension 4 x G 1/2
Pressure rating PN10
Material Cold rolled steel
Standard colour White RAL 9016

Side connection ETIM 32. Side connection requires the use of an external radiator valve. In the case of side connection, the bottom connections are plugged.

ETIM 32 Horizontal connection

Side connection ETIM 67. Side connection requires the use of an external radiator coupling or valve. In the case of side connection, the bottom connections are plugged.

ETIM 67 Horizontal connection

Diagonal connection ETIM 37. Diagonal connection requires the use of an external valve. In the case of a diagonal connection, the bottom connections are plugged.

ETIM 37 Horizontal connection

Diagonal connection ETIM 62. Diagonal connection requires the use of an external valve. In the case of a diagonal connection, the bottom connections are plugged.

Hor-connection-ETIM-62-1219.svg

Mounted side panels and top grate with the necessary brackets, bleed screw and plug.

PTB.1 radiators PTB.11 panel radiator Purmo type Compact: Manufacture of Purmo type Compact. Pressure class PN10 Equipped with side panels and top grate. White RAL 9016 finish. Delivered with ventilation valve, bottom plug and the necessary lockable Monclac wall brackets. Supplied in protective packaging with front protection that is removed at the time of the final cleaning. C XX-HLL (e.g. PURMO C 11 300x400) Output group height, length (cm) Supplementary text: Provided with MMA fitting Panel radiator accessories: Floor stands Locks bows for public supply air intake Purmo Air towel bar

Purmo radiators are warranted for a period of 10 years* from date of purchase against all manufacturing defects when they are used in normal conditions and for a heating system with hot water. The warranty does not apply to defects caused by installation or handling errors, misuse or factors external to the radiators, such as water quality or oxygen-permeable pipes.
Underfloor heating products and piping systems elemnts are warranted for a period of 10 years**.
* 6 years for galvanized radiators and 2 years for all electronic and electric components and spare parts sold separately (side covers, top grilles, plastic clips, plugs, air vents, fixing parts)
** 30 years for PexPenta pipes

10 year warranty

CE certificate

CE-mark
Files
DocumentCategory
Purmo Compact, C, output calculation Heat Output
Installation
Drawing Compact FV

Compact, front view

Drawing Compact BV

Compact, back view

Drawing Compact T11 SV Monclac

Compact, type 11, side view with Monclac wall brackets

Drawing Compact T21 SV Monclac

Compact, type 21, side view with Monclac wall brackets

Drawing Compact T22 SV Monclac

Compact, type 22, side view with Monclac wall brackets

Drawing Compact T33 SV Monclac

Compact, type 33, side view with Monclac wall brackets

Drawing Compact T11 TV

Compact type 11, top view

Drawing Compact T21 TV

Compact type 21, top view

Drawing Compact T22 TV

Compact type 22, top view

Drawing Compact T33 TV

Compact Typ 33, top view

Accessories

Bleed screw

Bleed screw for Purmo and Thermopanel radiators.

Bleed screw and dummy plug set

Bleed screw and pre-chromed plug in dim G15 with O-ring

Wall spacer

Space for Monclac bracket.

Wall bracket Purmo Monclac

Solid wall bracket

Purmo Monclac floor support

Monclac floor stand in height 300–900 mm for Purmo panel radiator types 11, 21, 22, 33.

Standard towel bar

Towel bar for standard Purmo panel radiators C, CV and H (type 10–33).

Repair paint

Repair paint in RAL 9016

Purmo lock bow

Lock bow for installation of Purmo panel radiators in public environments.

Air

The Air supply air intake is a dynamic product that combines heat and ventilation in order to achieve a healthy living environment.

Top grill Purmo

Top grate for Purmo panel radiators.

Purmo side panel

Solid side panel for the plinth radiator right

Wall bracket SMS

Wall bracket SMS for installation of panel radiators.

Evosense

Evosense is a self-actuated adjustable thermostat to provide the best possible regulation of room temperatures. The set value is shown in a window on the thermostat, with a standard range of 0-28°C, but can be delivered from the factory with a higher or lower threshold.

Radiator manifold Evoflow

Radiator manifold with low enviromental impact.

Radiator valve Evoflow

Radiator valve with low enviromental impact.

Radiator manifold Flex

Flex external radiator manifold. It can be set setless with exact Kv. It can be controlled by a M28 thermostat or actuator, for example Evosense

Radiator manifold FLK

Radiator manifold FLK

Radiator valve FV

The FV valve is used togehter with a thermostatic head, actuator or manual wheel in heating and cooling systems.

The FV valve can be otained mounted in manifolds.

FV = Valve with pre-setting

Radiator valve FVRFe

Radiator coupling FVRe is especially suitable for radiators with high requirements at low noise levels and with requirements for efficient energy use in, for example, ventilation.
Radiator coupling FVRe coupling is available in finished lengths that fit most radiators on the market.
The radiator coupling is regulated with a max limiting thermostat

Description
The FVRe valve has an exact presetting function hidden under the stuffing box.
If the thermostat is removed, the valve closes to a basic position (kv 0.05) and the energy saving function starts.
If the preset kv is higher than 0.05, the temperature in the room will be lower if the thermostat is removed.

The valve also goes down in energy saving mode if the temperature at the thermostat drops.

The safety knob has a washer that is used to set the nominal flow and to temporarily cancel the energy saving function during adjustment.

Radiator coupling FVRe can be mounted side or bottom and has a rotatable control part, which means that you can turn it outwards.
Radiator coupling FVRe can also be mounted upside down.
The distributor has a shut-off under the cover.

Lock shield RV

The lockshield valve is used as a shut off valve or pre-setting valve on radiators.

Description
The lockshield valve RRVR and RRVV is equipped with two cones, one for shut off and one for pre-setting.
Pre-seeting is carried out without draining the system.
The lockshield valve is restricted so that the cone cannot be unscrewed unintentionally.
RVR and RVV is equipped with one cone for closing and has an o-ring of EPDM rubber.

Castle Valve manual handle

The castle valve is used, for example, in K-marked buildings or where you want to preserve the old style.
Castle knob and valve are of polished and lacquered brass. The valve is manually controlled with the slot knob which also fits on valves and replacement inserts in MMA's other range.

Description
The Castle knob can be mounted on the slot valve as well as other M28 valves. It is a manual control without thermostat function.

Castle valve radiator valve

The castle valve is used, for example, in K-marked buildings or where you want to preserve the old style.
Castle knob and valve are of polished and lacquered brass. The valve is manually controlled with the slot knob which also fits on valves and replacement inserts in MMA's other range.

Description
The Castle valve consists of a valve with a preset and a slot knob that acts as a handwheel.
Also available are bends and nuts, as well as return valve and nipple and nut.
Valve series FV has an exact preset function hidden under the stuffing box, see valve FV for more information.
The valve is available in two versions, straight and angled.

Castle valve return valve

The castle valve is used, for example, in K-marked buildings or where you want to preserve the old style.
Castle knob and valve are of polished and lacquered brass.

Description
The return valve RV is equipped with a cone for the closing and for the presetting, see RV return valve for more information. The return valve is available in two versions, straight and angled.

Lock shield RRV

The lockshield valve is used as a shut off valve or pre-setting valve on radiators.

Description
The lockshield valve RRVR and RRVV is equipped with two cones, one for shut off and one for pre-setting.
Pre-seeting is carried out without draining the system.
The lockshield valve is restricted so that the cone cannot be unscrewed unintentionally.
RVR and RVV is equipped with one cone for closing and has an o-ring of EPDM rubber.
