Hygiene
Horizontal Panel Radiators

Hygiene

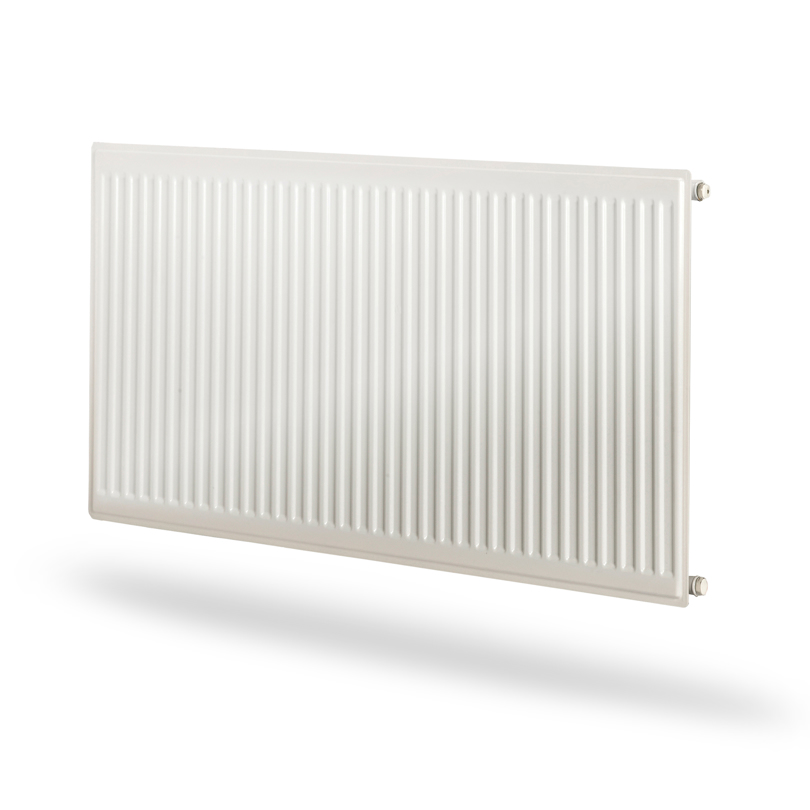

Hygiene is a traditional panel radiator for closed water-borne heating systems. Hygiene is delivered without convection fins, top grates and side panels, which makes it easy to clean. Wall brackets, bleed screw and dummy plug are included.

Properties
Max operating temperature 110
Standard EN442; EN10130
Connection dimension 4 x G 1/2
Pressure rating PN10
Material Cold rolled steel
Standard colour White RAL 9016
Connections (ETIM) 32,37,62,67
Horizontal Panel Radiators

Hygiene

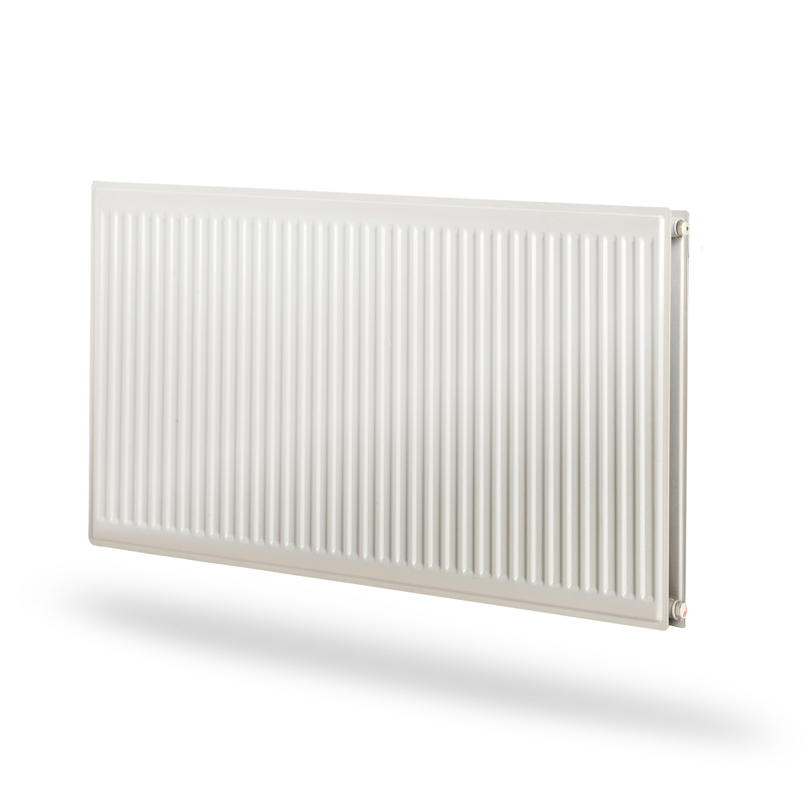

Hygiene is a hygienically-classified panel radiator for closed water-borne heating systems. Hygiene is delivered without convection fins, top grates and side panels, which makes it easy to clean.

With an external valve arrangement, installation is simplified. The Hygiene hygienic radiator has four G 1/2" connections with female thread, when enables side connection on the right-hand and left-hand side. Brackets, bleed screw and dummy plug are included. CE-marked and outputs in accordance with EN442-1. Standard white RAL 9016 finish (other colours are available on request for an additional charge). The warranty period is 10 years.

Properties
Max operating temperature 110
Standard EN442; EN10130
Connection dimension 4 x G 1/2
Pressure rating PN10
Material Cold rolled steel
Standard colour White RAL 9016
Connections (ETIM) 32,37,62,67

Connection drawing

ETIM 32 Horizontal connection

Connection drawing

ETIM 67 Horizontal connection

ETIM 37 Horizontal connection

ETIM 37 Horizontal connection

Hor-connection-ETIM-62-1219.svg

Hor-connection-ETIM-62-1219.svg

Monclac brackets and a bleed screw and dummy plug. The Hygiene radiator is delivered without convection plate, side panel and top grate.

Purmo radiators are warranted for a period of 10 years* from date of purchase against all manufacturing defects when they are used in normal conditions and for a heating system with hot water. The warranty does not apply to defects caused by installation or handling errors, misuse or factors external to the radiators, such as water quality or oxygen-permeable pipes.
Underfloor heating products and piping systems elemnts are warranted for a period of 10 years**.
* 6 years for galvanized radiators and 2 years for all electronic and electric components and spare parts sold separately (side covers, top grilles, plastic clips, plugs, air vents, fixing parts)
** 30 years for PexPenta pipes

10 year warranty icon

CE certificate

CE-mark
Installation
Drawing Hygiene FV

Hygiene, front view

Drawing Hygiene BV

Hygiene, back view

Drawing Hygiene T10 SV Monclac

Hygiene, type 10, side view with Monclac wall brackets

Drawing Hygiene T10 SV

Hygiene, type 10, side view

Drawing Hygiene T20 SV

Hygiene, type 20, side view

Drawing Hygiene T20 SV Monclac

Hygiene, type 20, side view with Monclac wall brackets

Drawing Hygiene T30 SV

Hygiene, type 30, side view

Drawing Hygiene T30 SV Monclac

Hygiene, type 30, side view with Monclac wall brackets

Drawing Hygiene T10 TV

Hygiene, type 10, top view

Drawing Hygiene T20 TV

Hygiene, type 20, top view

Drawing Hygiene T30 TV

Hygiene, type 30, top view
