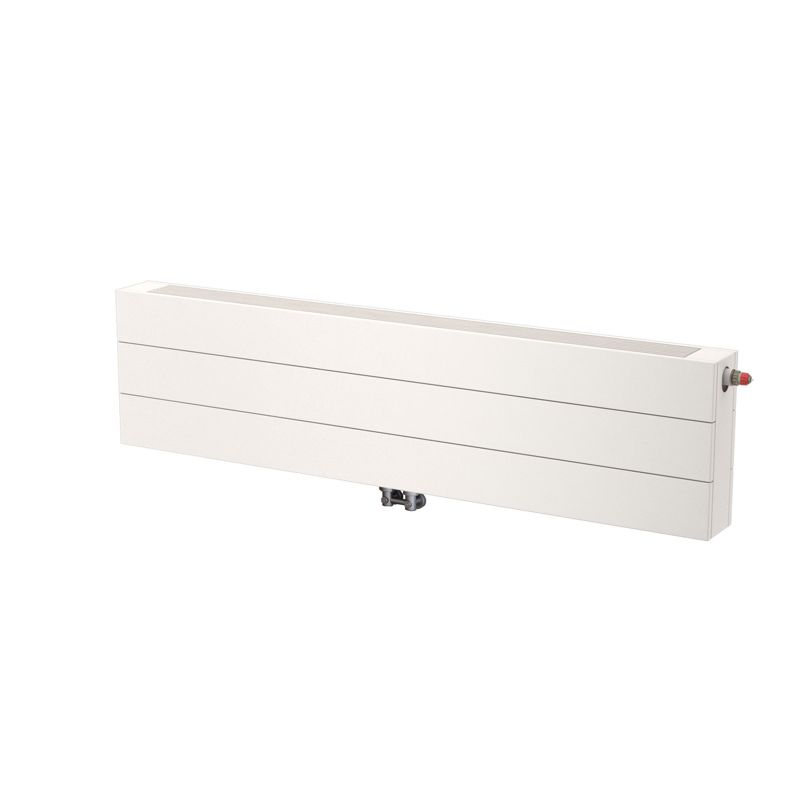

Narbonne M
Horizontal designer radiators

Narbonne M

Modern, chic and accessible to all, VONARIS-M with its rectangular tubes and structured front panel will give your interior an elegant look in all simplicity

Properties
Max operating temperature °C 110
Connection dimension 2 x G 3/4
Pressure rating PN5
Material Steel profile
Standard colour White RAL 9016
Connections (ETIM) MO
Types -; 10; 11; 20; 21; 22; 34; 35; 46
Heights [mm] 140; 210; 280; 360; 430; 500; 570; 650; 720; 790
Widths [mm] 500; 600; 700; 800; 900; 1000; 1100; 1200; 1300; 1400; 1500; 1600; 1700; 1800; 1900; 2000; 2200; 2400

Purmo radiators are warranted for a period of 10 years* from date of purchase against all manufacturing defects when they are used in normal conditions and for a heating system with hot water. The warranty does not apply to defects caused by installation or handling errors, misuse or factors external to the radiators, such as water quality or oxygen-permeable pipes.
Underfloor heating products and piping systems elements are warranted for a period of 10 years**.
* 6 years for galvanized radiators and 2 years for all electronic and electric components and spare parts sold separately (side covers, top grilles, plastic clips, plugs, air vents, fixing parts)
** 30 years for PexPenta pipes

10 year warranty

CE certificate

CE-mark
Files
DocumentCategory
Data Sheet Technical data sheet
Accessories
